Assembling Note:
- Check that the lever of the ASF drive frame is located at the position shown in the
figure.
- Insert the shaft of the Paper feed arm frame ASSY into the hole of the Maintenance
unit.
- Turn the ASF gear and check that the shaft of the Paper feed arm frame ASSY
turns.

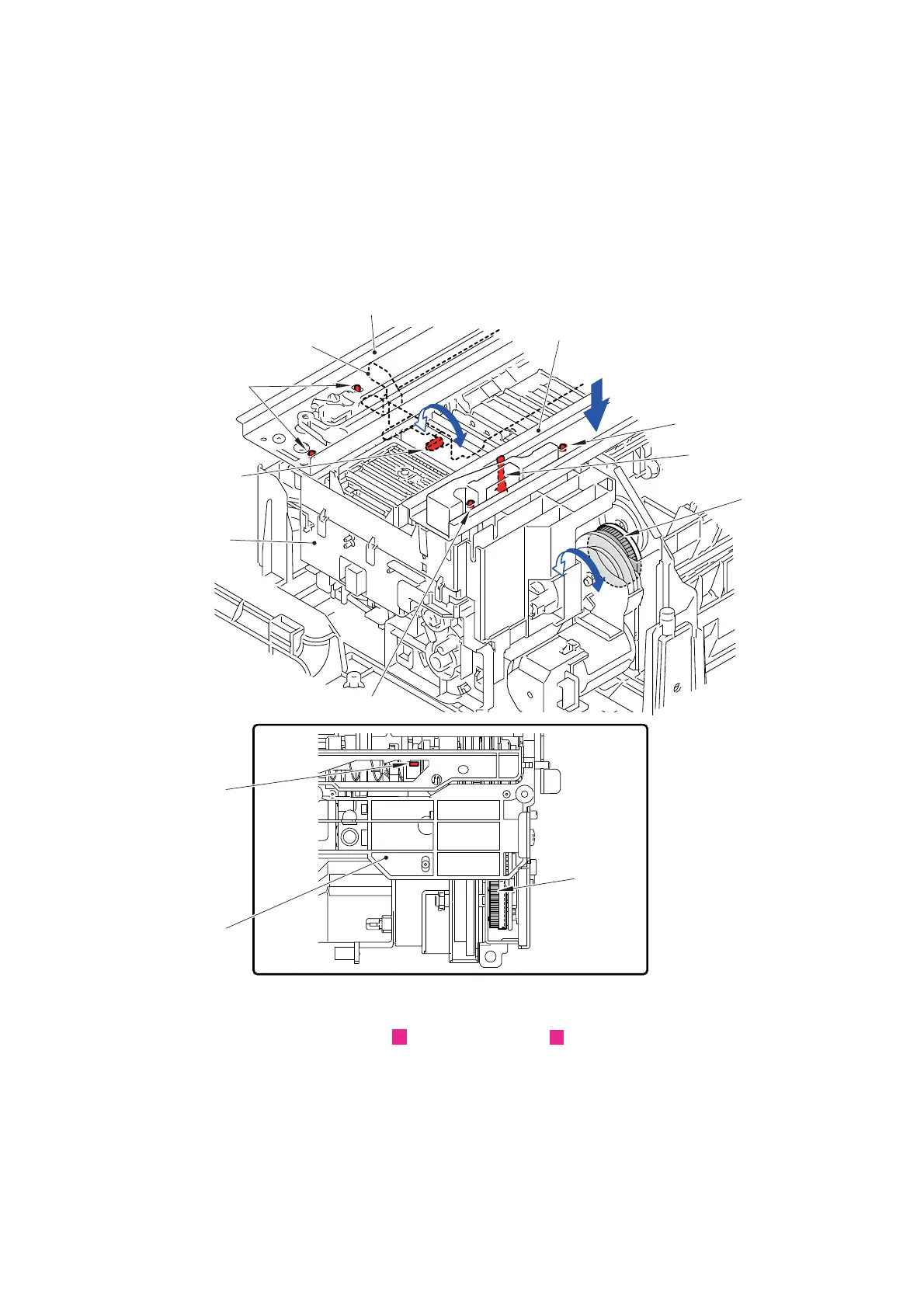

Fig. 3-146
Routing of harnesses: See “ Lower cover R”, “ Ink refill ASSY”.
Shaft of the Paper feed arm frame ASSY
Lever of the
Maintenance unit
Hole
Maintenance unit
ASF gear
<A view>
A view
Lever of the
ASF drive frame
ASF drive
frame
