Bruker AVANCE NEO - Figure 5.2: Helium Transfer Lines; Table 5.1: Helium Transfer Line Dimensions

Ceiling Height Requirements
H157654_9_011 39 / 120

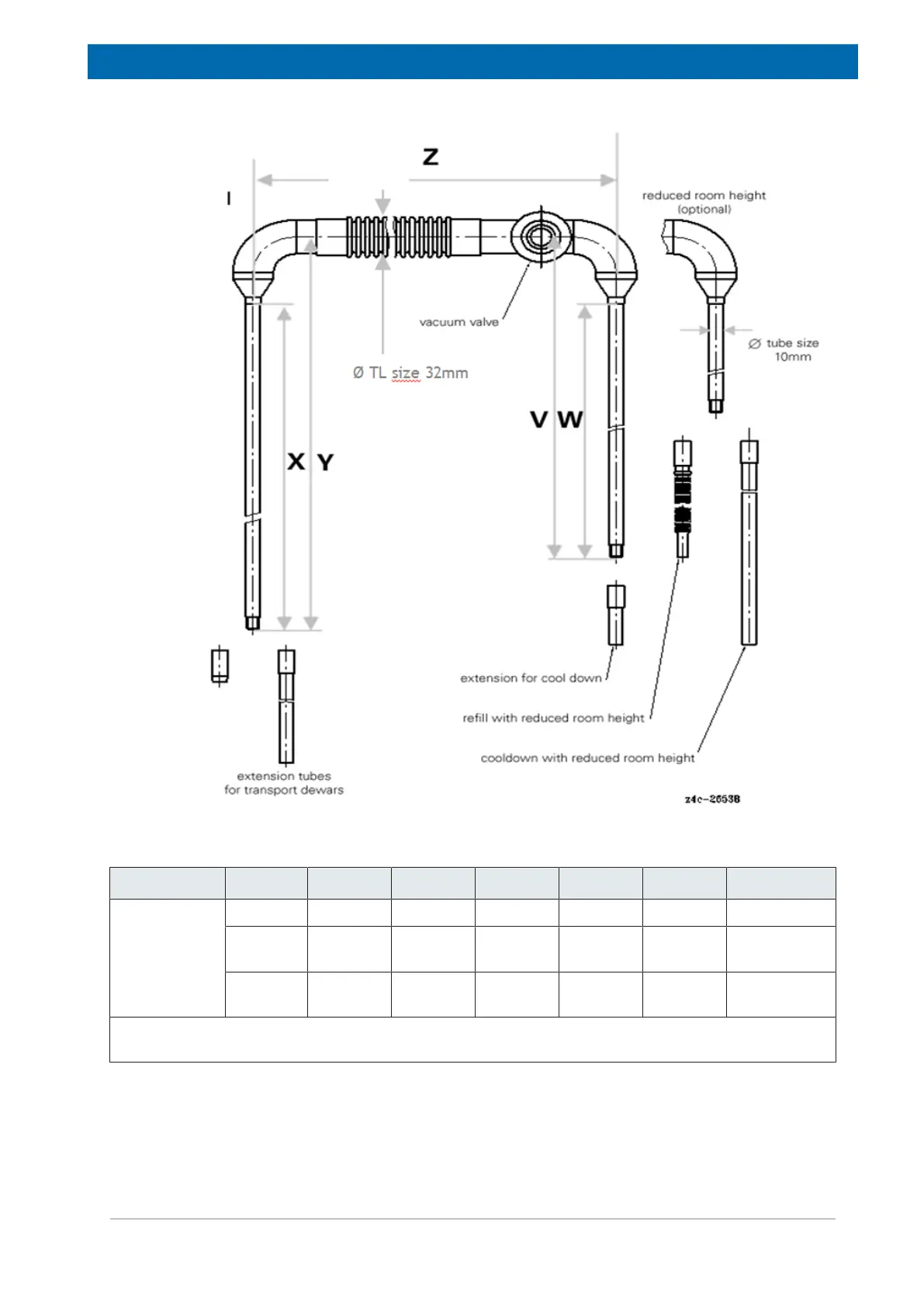

Figure5.2: Helium Transfer Lines
Refer to the figure above for the following helium transfer line dimensions.
Magnets Part Nr. X (mm) Y (mm) Z (mm) V (mm) W (mm) Remarks
Ascend 53962 1455 1508 2060 708 655 D3XX
29085 1455 1508 2060 433 380 Reduced
Height
29515 1455 1508 1250 503 450 Reduced
Height
Note: When using soffits, sufficient space must be left for the required transfer line length. The magnet
may need to be placed off-center within the soffit (as opposed to being centered).
Table5.1: Helium Transfer Line Dimensions
