Description
Type 8228
5.4 Understanding the name plate
8228 Inductive Conductivity Meter V2
Supply: 12-36V 40W max.
Output: 1x 4-20mA 1xTrans 700mA max.
Cell: PEEK Range 100 µS/cm - 2 S/cm
Process: Temp -15 to 130°C
PN 10, limited by fitting material and fluid temp.
IP65-IP67 W41MN
S-N:1000
00566615
1:V+
2:NPN/PNP1
3:0V
4:I1
2
5
6
7
8
9
31
1011
12
13
14
16
15
18
17
4
1. Supply voltage
2. Type of the device
3. Measurable variable
4. Version
5. Max. power consumption
6. Max. current available at the transistor output(s)
7. Conductivity measuring range
8. Fluid temperature range
9. Pin assignment of the M12 fixed connector(s)
10. Conformity logos
11. Order code
12. Serial number
13. Warning: Before using the device, take into account
the technical specifications described in these
operating instructions.
14. Protection class
15. Construction code
16. Nominal pressure of the fluid
17. Material of the conductivity sensor holder
18. Available outputs

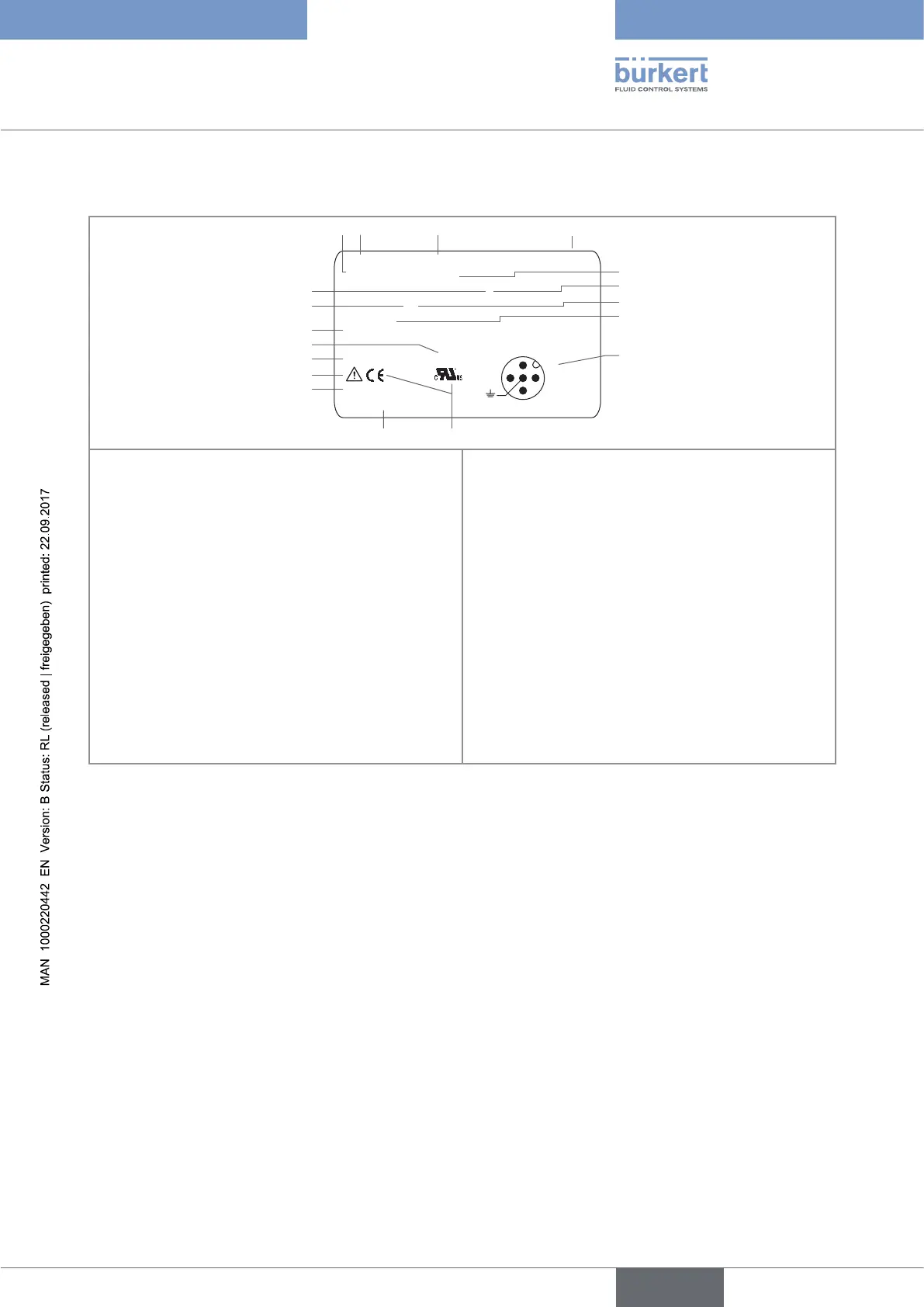

Fig. 1: Name plate of the device (example)
