Installation and wiring
Type 8228

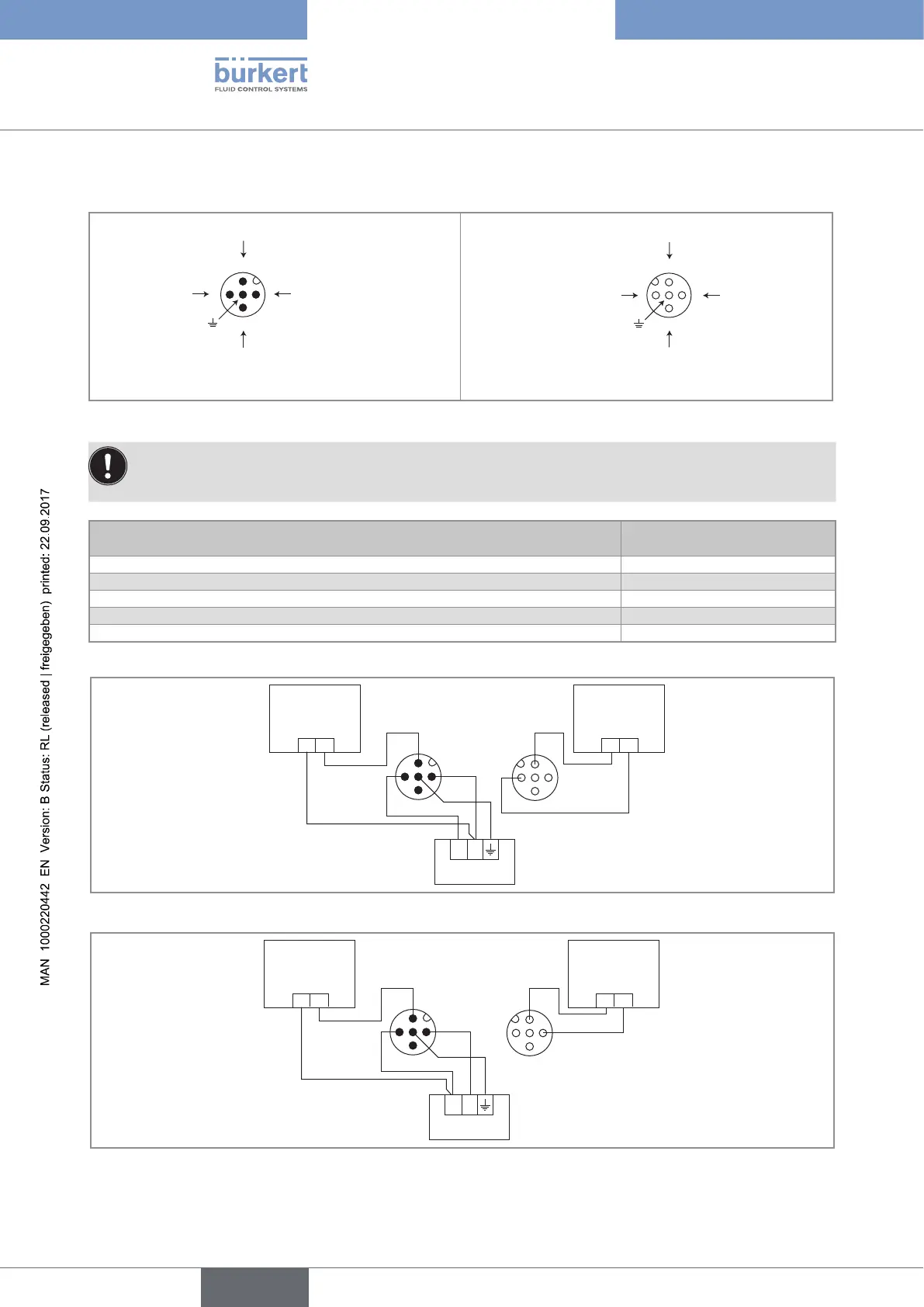

8.4.4 Wiring a version with 2 M12 fixed connectors
1
2
3
4
Transistor output 1 (TR1)
Current output 1 (AC1)
0V
V+ (12-36 V DC)
Male fixed connector
1
2
3
4
V+ (12-36 V DC)
Transistor output 2 (TR2)
Current output 2 (AC2)
0V
Female fixed connector
Fig. 22: Pin assignment of the male and female M12 fixed connectors
Connect the power supply for the device to the male fixed connector; the supply is then
transferred internally to pins 1 and 3 of the female fixed connector in order to ease wiring of the
load to the female fixed connector.
Pin of the female or male M12 cables available as accessories
(order code 438680 respectively 559177)
Colour of the wire
1 brown
2 white
3 blue
4 black
5
grey
12-36 V DC
+ -
1
2
3
4
3
2
1
4
Load 1
Load 2
Power supply
white
blue
brown
grey
white
brown
Fig. 23: NPN wiring of both transistor outputs of a version with 2 M12 fixed connectors (parameter setting "NPN/sink")
12-36 V DC
+ -
1
2
3
4
3
2
1
4
Load 1
Load 2
Power supply
white
blue
brown
grey
white
blue
Fig. 24: PNP wiring of both transistor outputs of a version with 2 M12 fixed connectors (parameter setting "PNP/source")
