Burkert 8228 ELEMENT - Installing a 8228 with a G2 Process Connection in the Pipe

23
Installation and wiring
Type 8228
Protect this device against electromagnetic interference, ultraviolet rays and, when installed outdoors, the
effects of the climatic conditions.
8.2 Installing a 8228 with a G2'' process connection in
the pipe
The device is put into a fitting S020 mounted on the pipe.
→ Mount the fitting on the pipe obeying the instructions of the operating instructions of the fitting used.

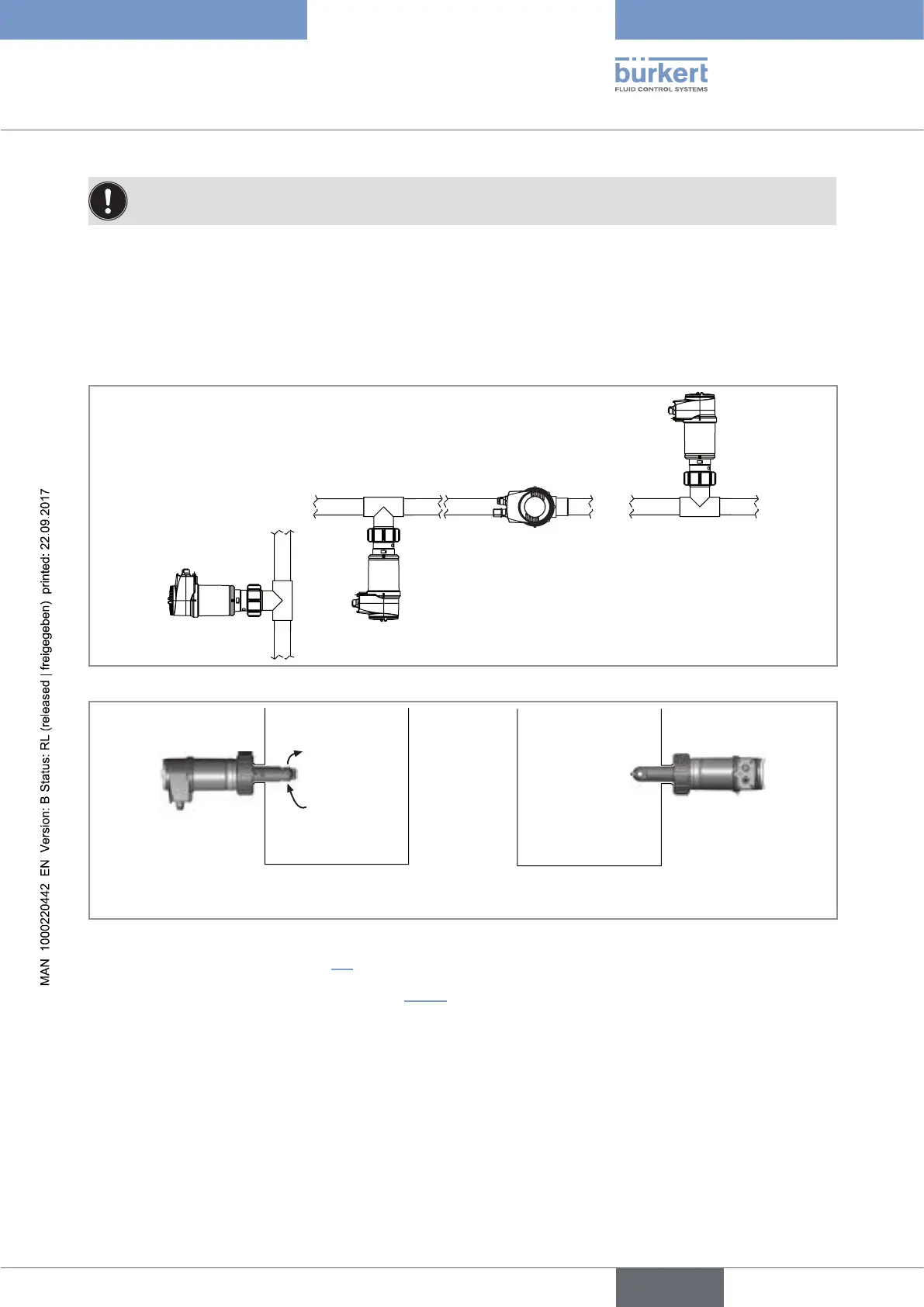

Fig. 8: Positions for the mounting on the pipe
Tank without mixing device Tank with mixing device
Fig. 9: Positions for the mounting on a container
→ Fit the display module (see chap. 7.4) to calibrate the conductivity sensor and to parameter the device.
→ Calibrate the conductivity sensor (see chap. 9.12.4).
English
