Burkert 8228 ELEMENT - Wiring a Version with a Single M12 Fixed Connector

27
Installation and wiring
Type 8228
12-36 V DC
+
-
Devices such as valves, pumps,...
Plastic pipe
Power supply

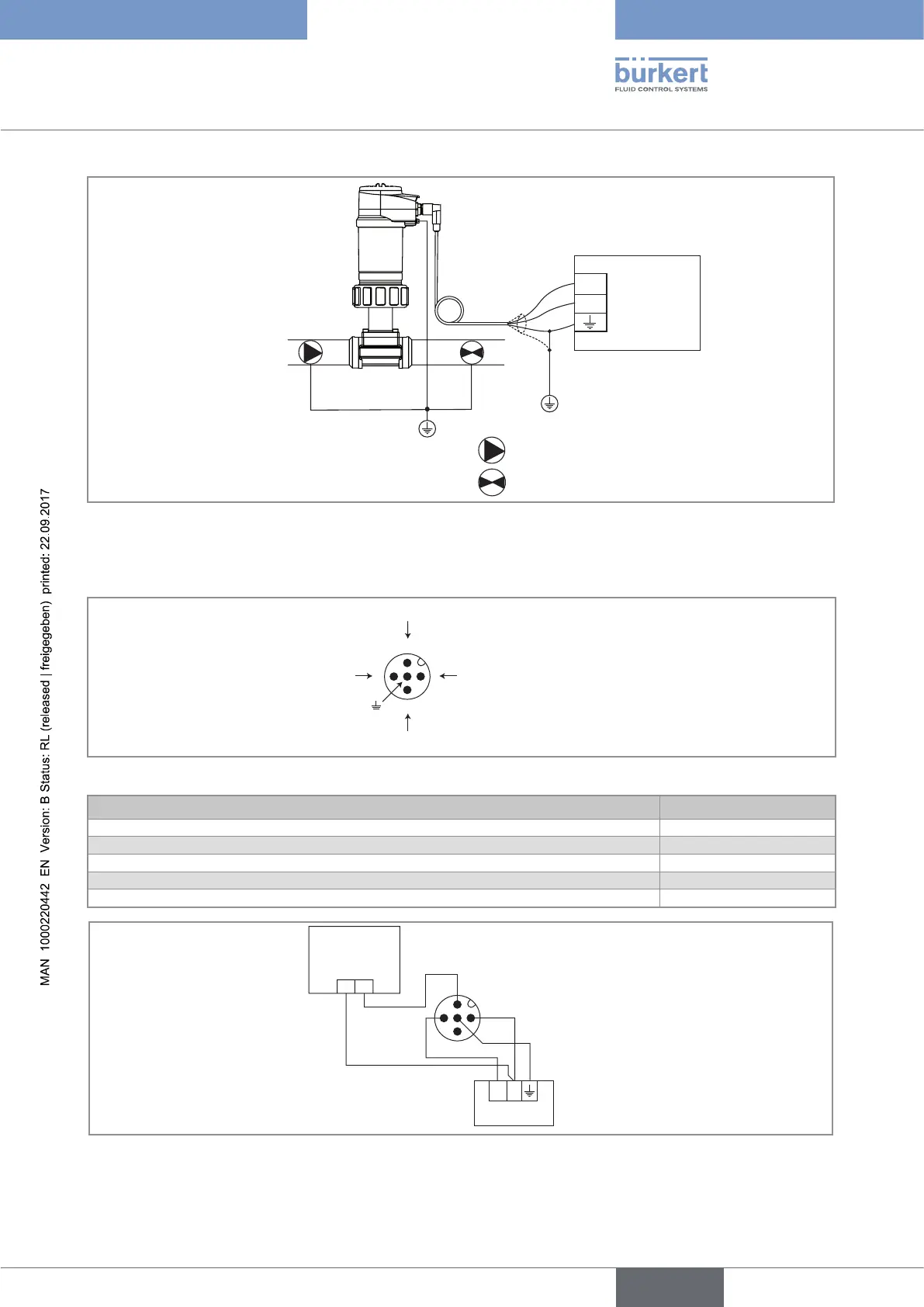

Fig. 14: Equipotentiality skeleton diagram with pipes in plastic
8.4.3 Wiring a version with a single M12 fixed connector
1
2
3
4
V+ (12-36 V DC)
Transistor output (TR1)
Current output (AC1)
0V
Fig. 15: Pin assignment of the male fixed connector on a version with a single M12 fixed connector
Pin of the M12 female cable available as an accessory (order code 438680) Colour of the wire
1 brown
2 white
3 blue
4 black
5
grey
12-36 V DC
+ -
1
2
3
4
Load
Power supply
white
blue
brown
grey
Fig. 16: NPN wiring of the transistor output of a version with 1 fixed connector (parameter setting "NPN/sink")
English
