Burkert 8228 ELEMENT - Page 28

28
Installation and wiring
Type 8228
Load
Power supply
white
blue
brown
grey
12-36 V DC
+ -
1
2
3
4

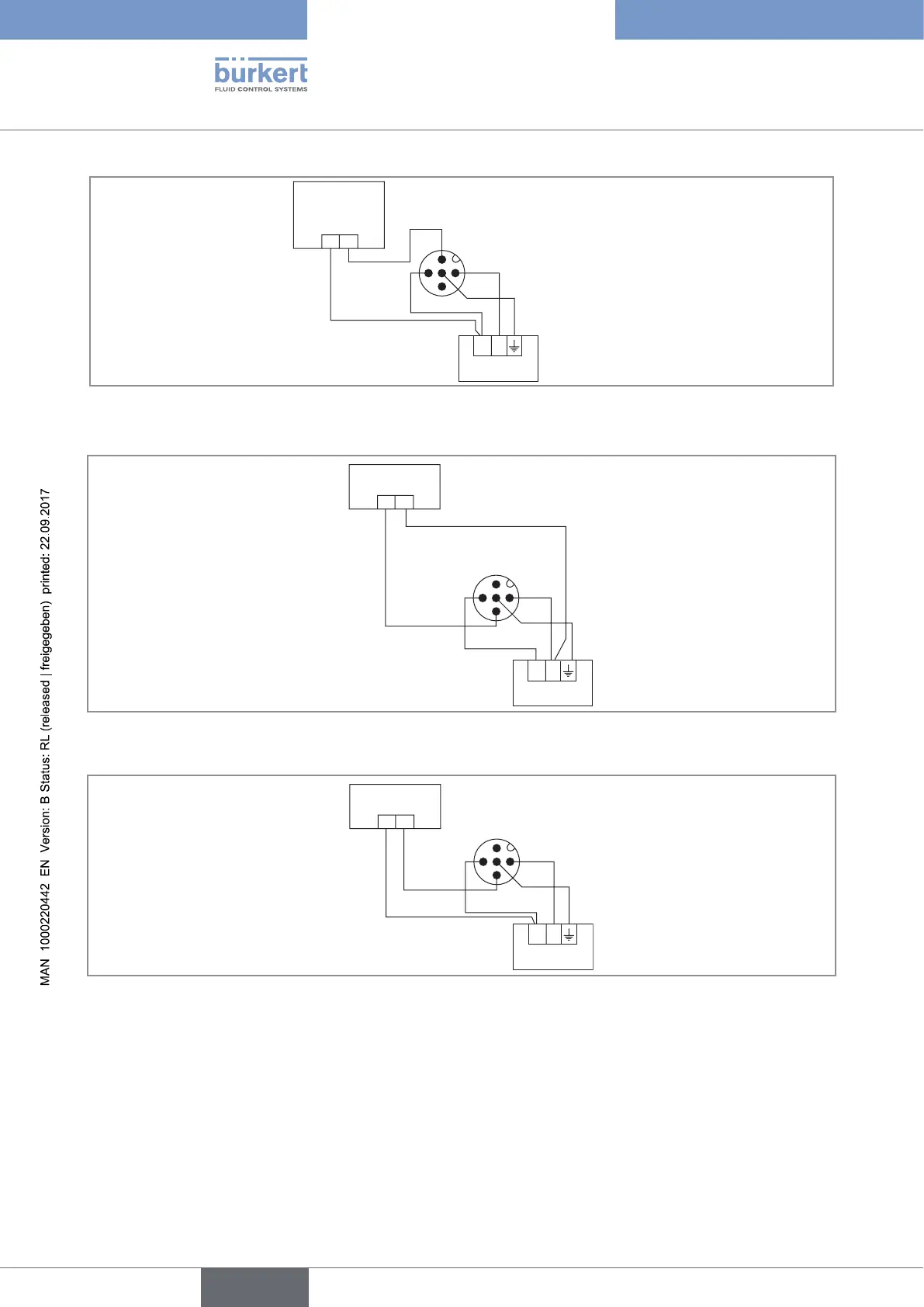

Fig. 17: PNP wiring of the transistor output of a version with 1 fixed connector (parameter setting "PNP/source")
12-36 V DC
+ -
+-
1
2
3
4
Power supply
4-20 mA input at external
instrument
brown
blue
grey
black
Fig. 18: Wiring in sinking mode of the current output of a version with 1 fixed connector (parameter setting "NPN/sink")
12-36 V DC
+ -
+-
1
2
3
4
brown
blue
grey
black
4-20 mA input at external
instrument
Power supply
Fig. 19: Wiring in sourcing mode of the current output of a version with 1 fixed connector (parameter setting "PNP/
source")
English
