Technical data
Type 8228
6.4 Mechanical data
Part Material
Box / seals stainless steel 316L 1.4404, PPS / EPDM
Cover / seal PC / silicone
Display module PC / PBT
M12 fixed connector • nickel-plated brass (stainless steel on request)
• stainless steel for 2'' clamp process connection
Fixed connector holder stainless steel 316L
Screws stainless steel
Nut PC
Conductivity sensor holder / seal • PVDF / FKM (in contact with the fluid)
• PP / FKM (in contact with the fluid)
• PEEK / FKM (in contact with the fluid)
Version with 2'' clamp process connection
Adapter for clamp stainless steel 316L 1.4404
Conductivity sensor holder /seal PEEK / EPDM (in contact with the fluid)
G2'' process connection 2'' clamp process connection
PC
silicone
PPS
EPDM
PVDF or PP or
PEEK
PC
Stainless steel
Nickel-plated brass
(or stainless steel)
PPS
FKM
Stainless
steel
PPS
EPDM
PEEK only

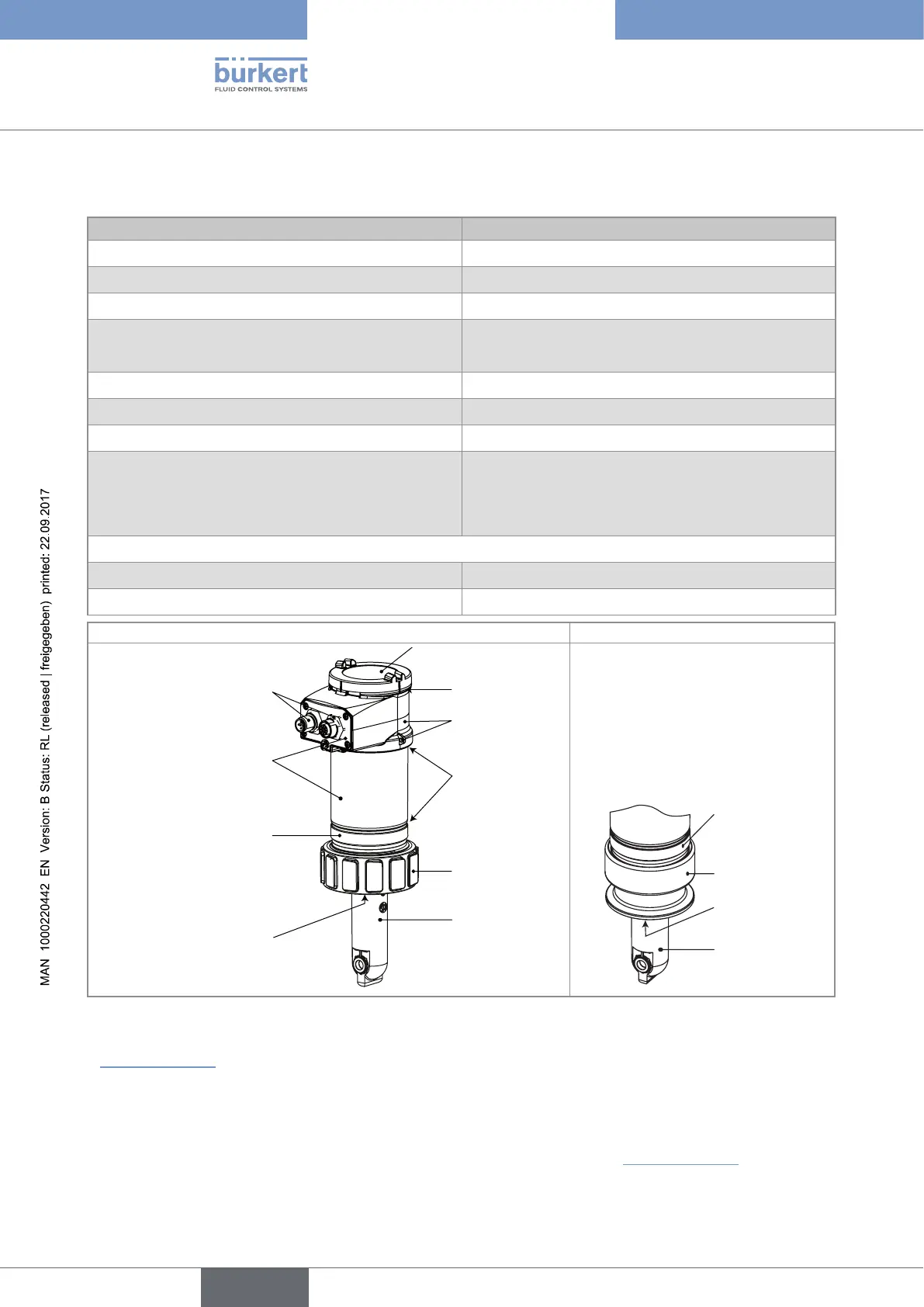

Fig. 3: Materials of the device
• Mechanical data of fittings: please refer to the technical data sheets of the related fittings, avalaible at:
www.burkert.com
6.5 Dimensions of device
→ please refer to the technical data sheets regarding the type 8228 avalaible at: www.burkert.com
