CAB Hermes Series User Manual

cab - Produkttechnik GmbH24

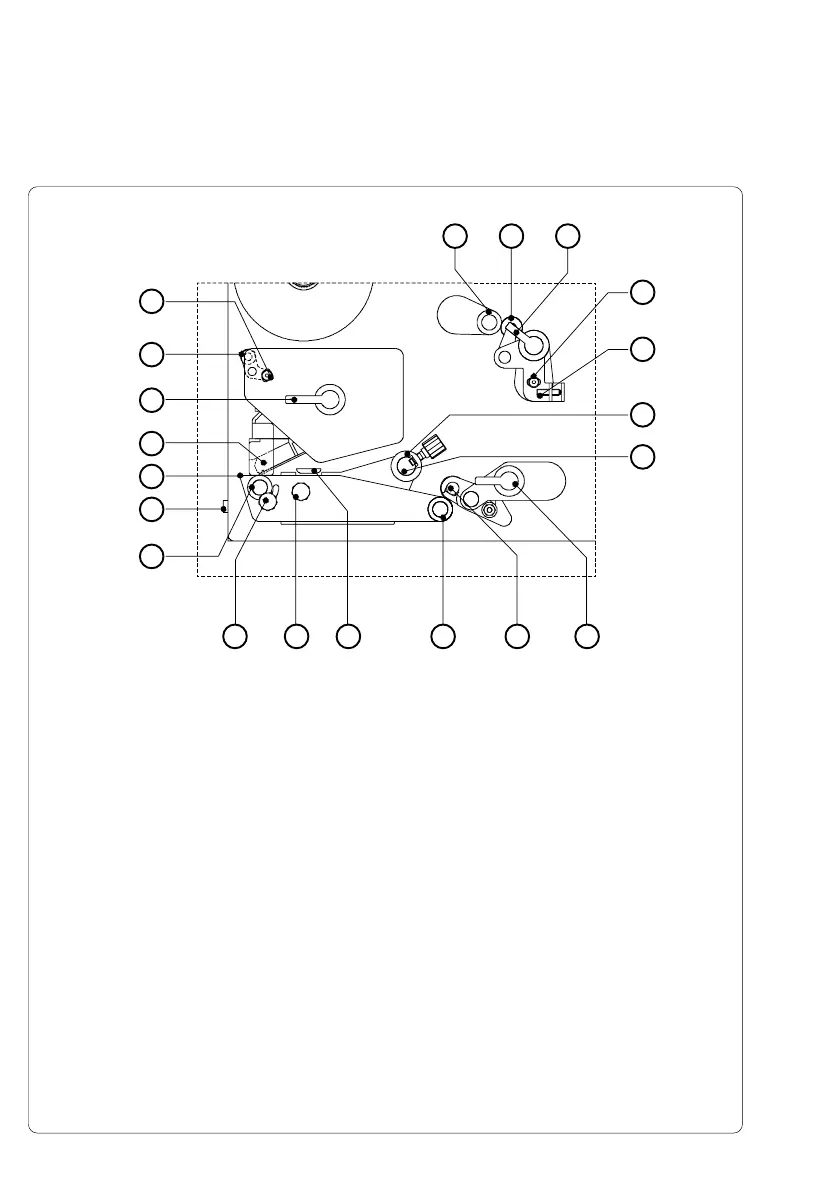

Fig. 4e Detailed view of the print mechanism Hermes 4N/5N
1 - Backfeed roller
2 - Backfeed system locking unit
3 - Backfeed system locking lever
4 - Locking screw for label track adjustment
5 - Set screw for label track adjustment
6 - Media guide with locking screw
7 - Media guide axle
8 - Transport system locking lever
9 - Transport system locking unit
10 - Transport roller
11 - Label edge sensor
12 - Knurled knob to adjust the label edge sensor
13 - Printhead levelling adjustment screw
14 - Print roller
15 - Socket of the peripheral port for cab-applicators
16 - Peel-off edge
17 - Thermal printhead
18 - Printhead locking lever
19 - Adjustable axle for ribbon track adjustment
20 - Locking screw for ribbon track adjustment
21
89
14
16
15
3
4
5
6
7
10111213
17
18
19
20

CAB Hermes Series Specifications

General

Display	LCD with backlight
Cutter	Optional
Dispenser	Optional
Print Technology	Thermal Transfer
Resolution	203 dpi, 300 dpi, 600 dpi (depending on the model)
Interfaces	USB, Ethernet, Serial
Memory	64 MB RAM, 128 MB Flash
Media Types	Labels, continuous media
Supported Barcode Types	Data Matrix, QR Code
Max Print Width	4.09 inches (104 mm)
