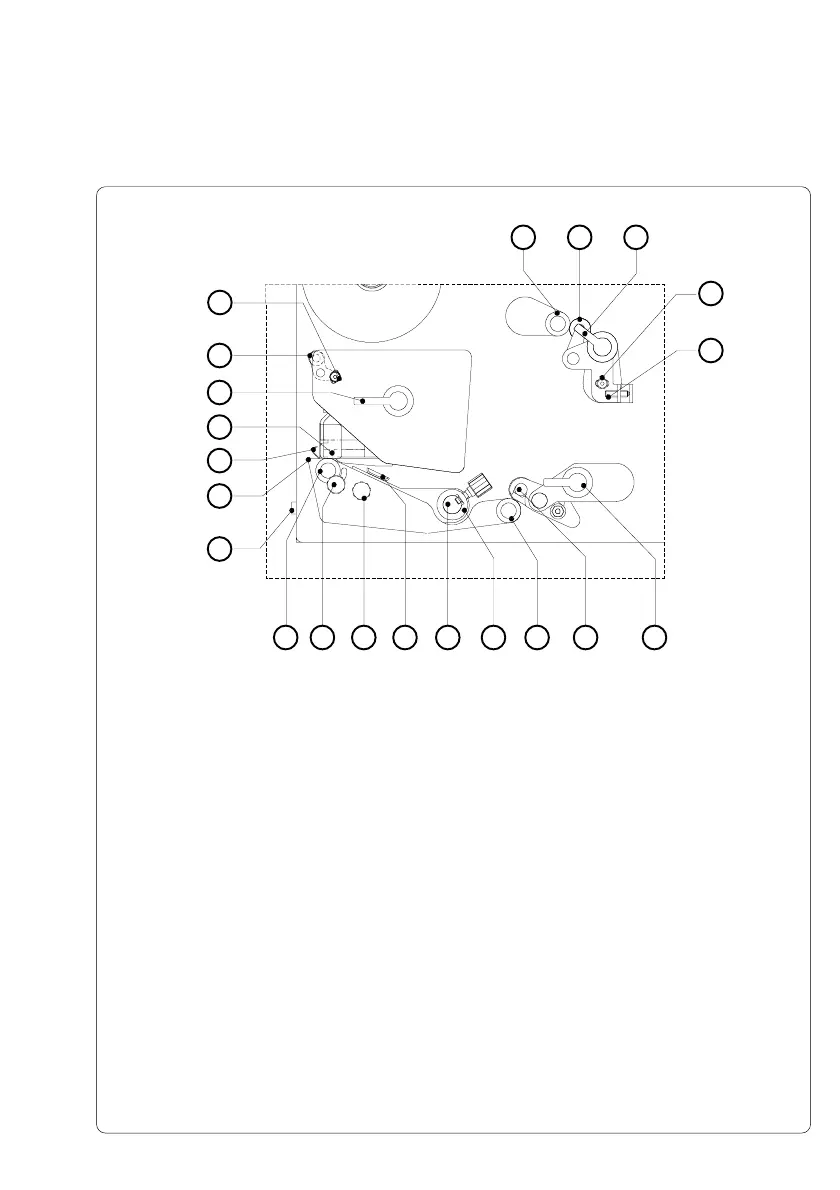

Fig. 4f Detailed view of the print mechanism Hermes 4F/5F
1 - Backfeed roller
2 - Backfeed system locking unit
3 - Backfeed system locking lever
4 - Locking screw for label track adjustment
5 - Set screw for label track adjustment
6 - Transport system locking lever
7 - Transport system locking unit
8 - Transport roller
9 - Media guide with locking screw
10 - Media guide axle
11 - Label edge sensor
12 - Knurled knob to adjust the label edge sensor
13 - Printhead levelling adjustment screw
14 - Print roller
15 - Socket of the peripheral port for cab-applicators
16 - Peel-off edge
17 - Ribbon shield
18 - Thermal printhead
19 - Printhead locking lever
20 - Adjustable axle for ribbon track adjustment
21 - Locking screw for ribbon track adjustment
21
8914
16
15
3
4
5
6710111213
17
18
19
21
20

CAB Hermes Series Specifications

General

Display	LCD with backlight
Cutter	Optional
Dispenser	Optional
Print Technology	Thermal Transfer
Resolution	203 dpi, 300 dpi, 600 dpi (depending on the model)
Interfaces	USB, Ethernet, Serial
Memory	64 MB RAM, 128 MB Flash
Media Types	Labels, continuous media
Supported Barcode Types	Data Matrix, QR Code
Max Print Width	4.09 inches (104 mm)
