CAB Hermes Series User Manual

cab - Produkttechnik GmbH26

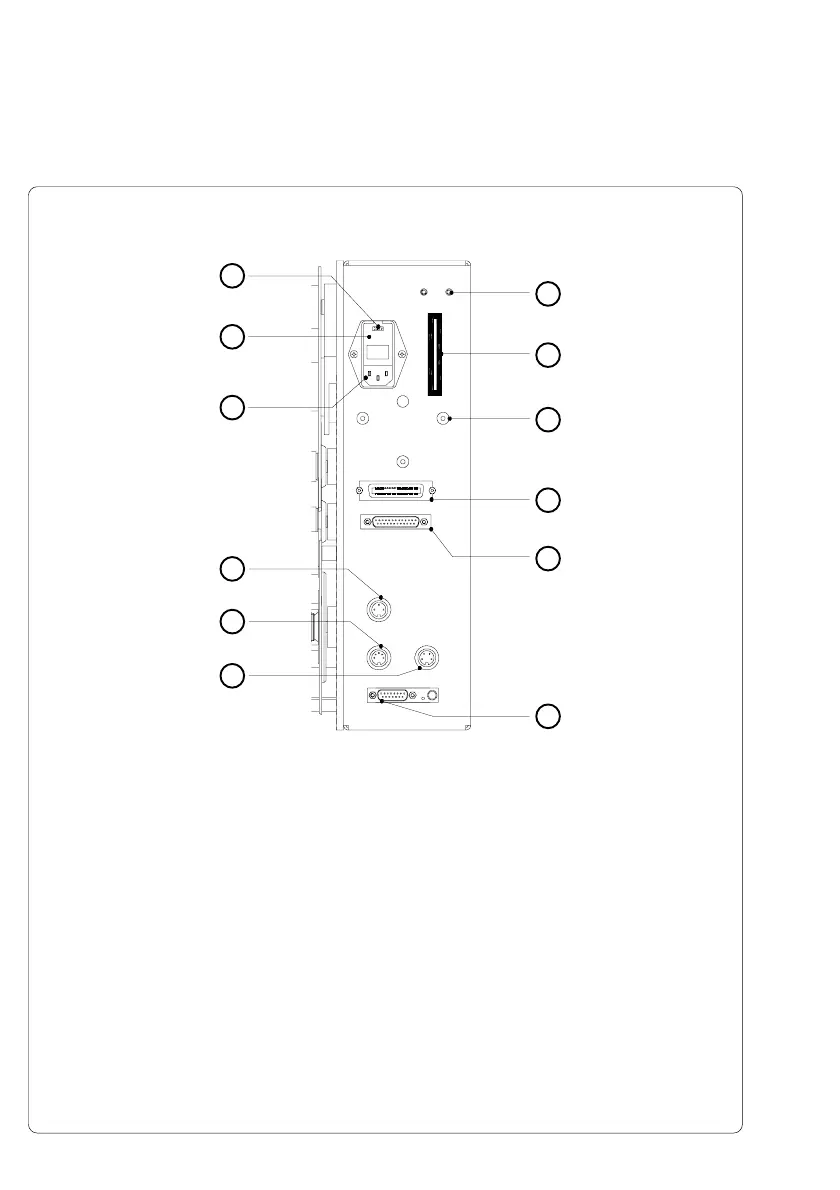

Fig. 4g Rear view
1 - Input voltage selector / Fuse holder
2 - Input voltage selector cover
3 - Power supply connector
4 - Connector warning sensor transfer ribbon end (Hermes 4N/4F only)
5 - Connector warning sensor label end (Hermes 4N/4F only)
6 - Connector warning light
7 - Drillings for mounting a compressed air service unit (option)
8 - Memory card module slot
9 - Drillings for mounting a bracket (option)
10 - Parallel interface port
11 - Serial interface port
12 - Plug of the peripheral port for non-cab-applicators
1
2
3
5
4
9
8
6
11
10
7
12

CAB Hermes Series Specifications

General

Display	LCD with backlight
Cutter	Optional
Dispenser	Optional
Print Technology	Thermal Transfer
Resolution	203 dpi, 300 dpi, 600 dpi (depending on the model)
Interfaces	USB, Ethernet, Serial
Memory	64 MB RAM, 128 MB Flash
Media Types	Labels, continuous media
Supported Barcode Types	Data Matrix, QR Code
Max Print Width	4.09 inches (104 mm)
