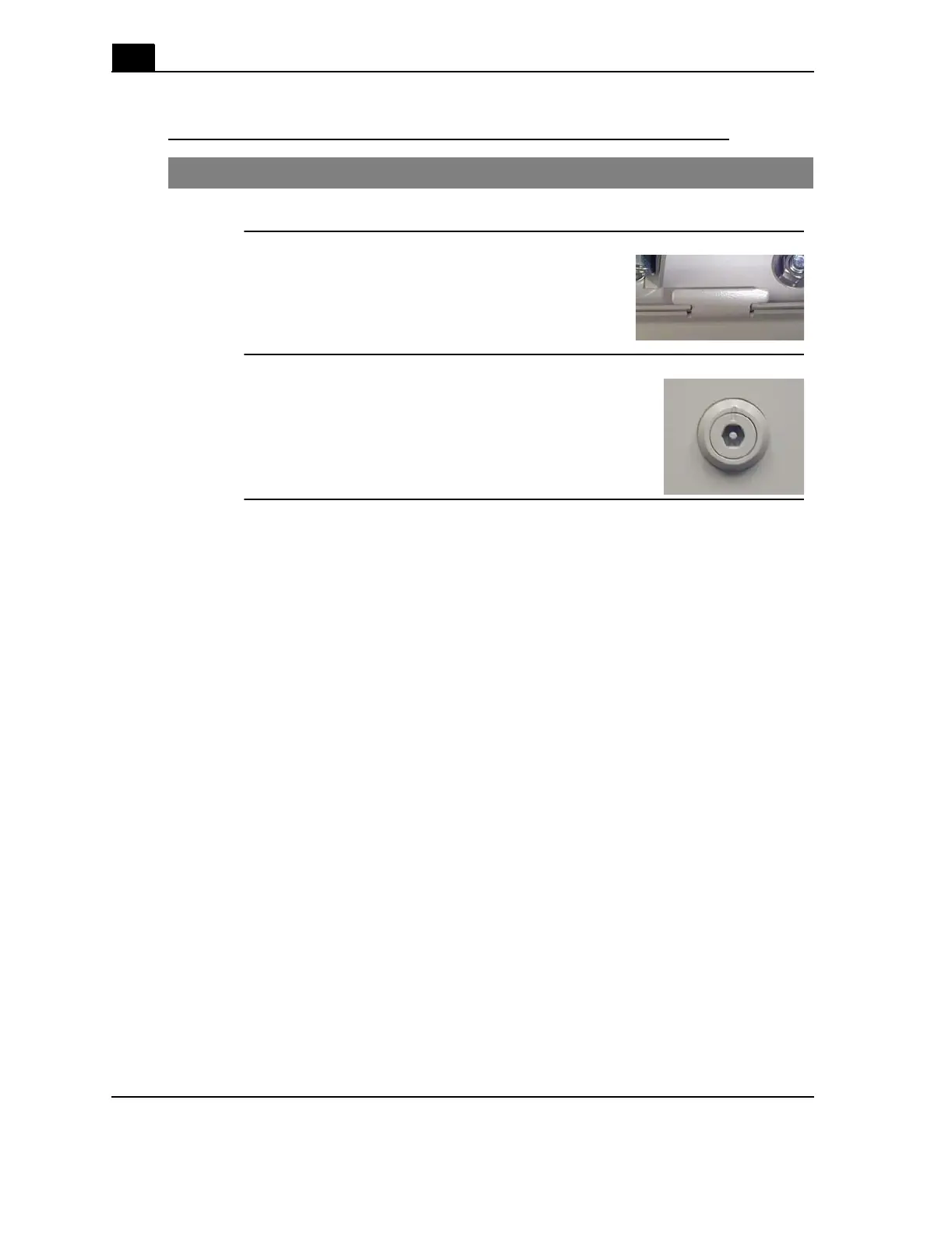

Procedure to replace a battery compartment panel
Step Action
1.
Reattach the grounding strap to the panel.
2.
Align the tabs at the bottom of the panel with the
cutouts in the bottom of the battery compartment
and tilt the panel into place.
3.
Insert the key into a latch and turn it clockwise until the
inner keyhole notch aligns with the outer keyhole notch.
Repeat for all latches on the panel.
