Pad Mounting the Cabinet
Unpack the cabinet
The cabinet ships bolted to a shipping pallet and enclosed in a cardboard box.

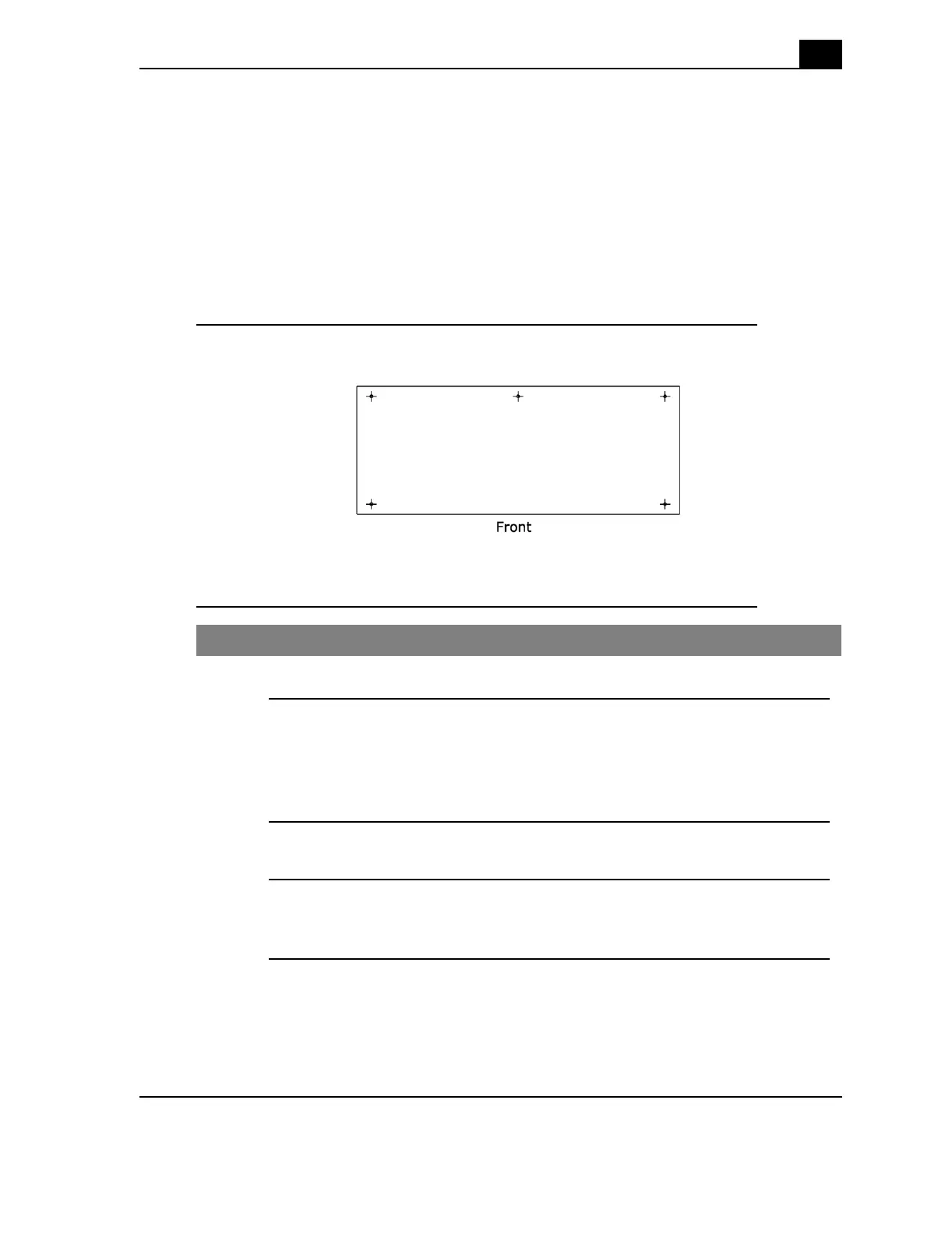

Location of mounting studs
The ODC-80 is fastened with 5 mounting studs in the locations shown.
Procedure to unpack the ODC-80
Step Action
1.
Remove the cardboard shipping box.
2.
Remove the front and rear battery compartment panels to reach the shipping
studs.
See the procedure to remove battery compartment panels.
3.
Remove the nuts from the shipping studs that hold the cabinet to the pallet.
4.
Remove the installation kit, air inlet duct plates, and related items from the
battery compartment.
