Lower and bolt
Lower the cabinet onto the mounting studs in the pad and fasten it securely.

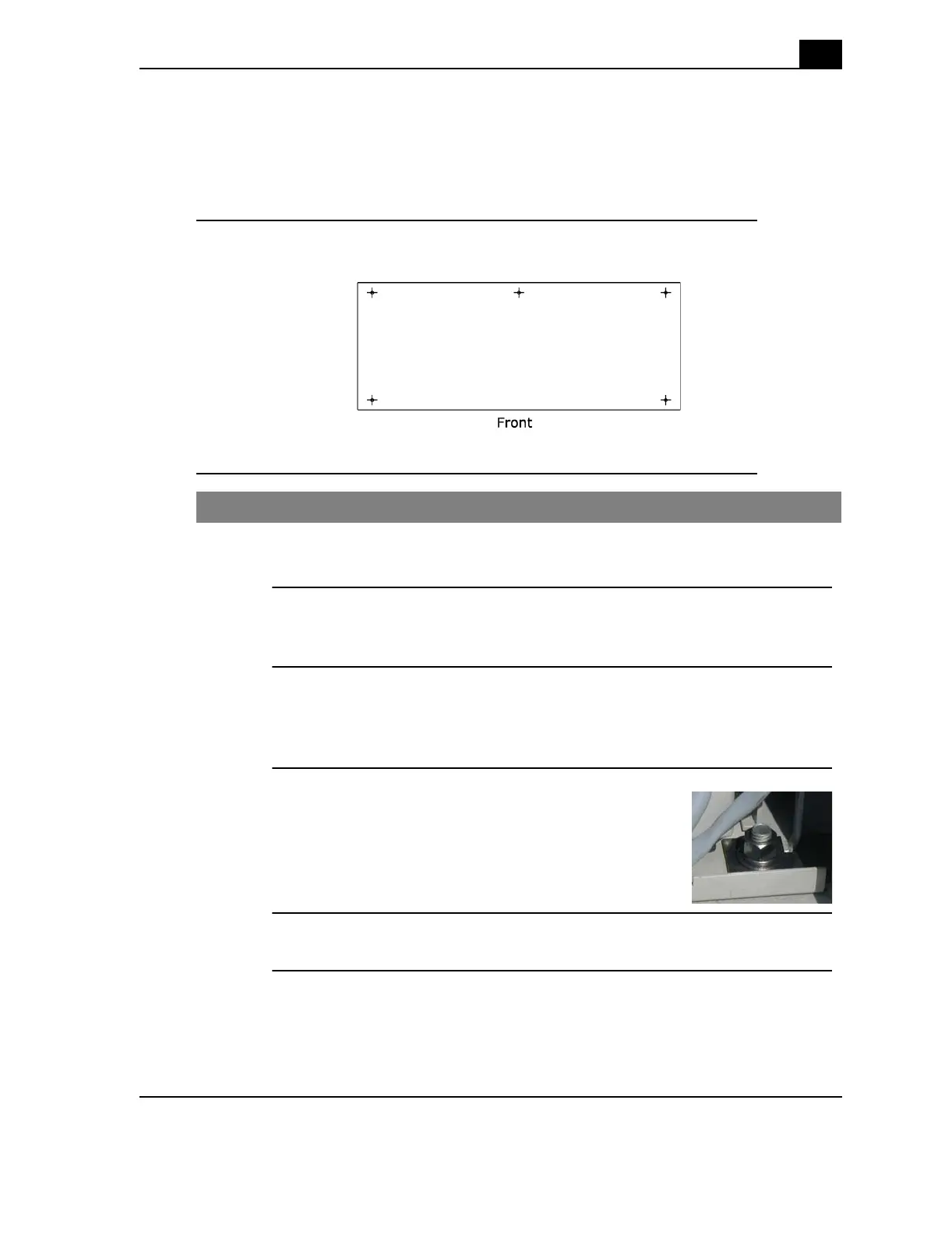

Location of mounting studs
The ODC-80 is fastened with 5 mounting studs in the locations shown.
Procedure to lower and bolt the cabinet to a pad
Step Action
1.
While suspended, align the holes in the cabinet base with the mounting studs
in the pad.
2.
Open the fiber splice compartment door and align the AC conduit with the
splice compartment AC entry hole.
3.
Lower the cabinet onto the pad, ensuring the mounting studs in the pad fit
into the holes in the base of the cabinet and the AC conduit fits through its
corresponding hole in the splice compartment.
4.
Install one square flat washer and lock washer and nut
from the installation kit on each of the mounting studs.
5.
Tighten the nuts to secure the cabinet to the pad.
