Calix ODC-80 Installation Guide
47
Proprietary Information: Not for use or disclosure except by written agreement with Calix.
© 2001-2003 Calix. All Rights Reserved.
Install the fiber holders
The fiber holders are fiber distribution cassettes, fiber splice trays, and the jumpers
between them.
Available fiber distribution cassette options
Fiber distribution cassettes are available for fibers with SC or LC connectors. Each cassette
can hold up to 12 fiber connections.
Fiber cassette holders can accept up to 6 fiber distribution cassettes. At 12 connections per
cassette, one cassette holder supports a total of 72 fiber connections.
Jumper options
From the front of a Calix C7 optical plug-in card, you can run a fiber jumper to a fiber
distribution cassette. You can also run a jumper between the fiber splice tray and the fiber
distribution cassette.
Procedure to install the fiber distribution cassette holder and cassettes
Step Action
1.
Choose where you want the fiber distribution cassette holder to attach to the
pegboard.
2.

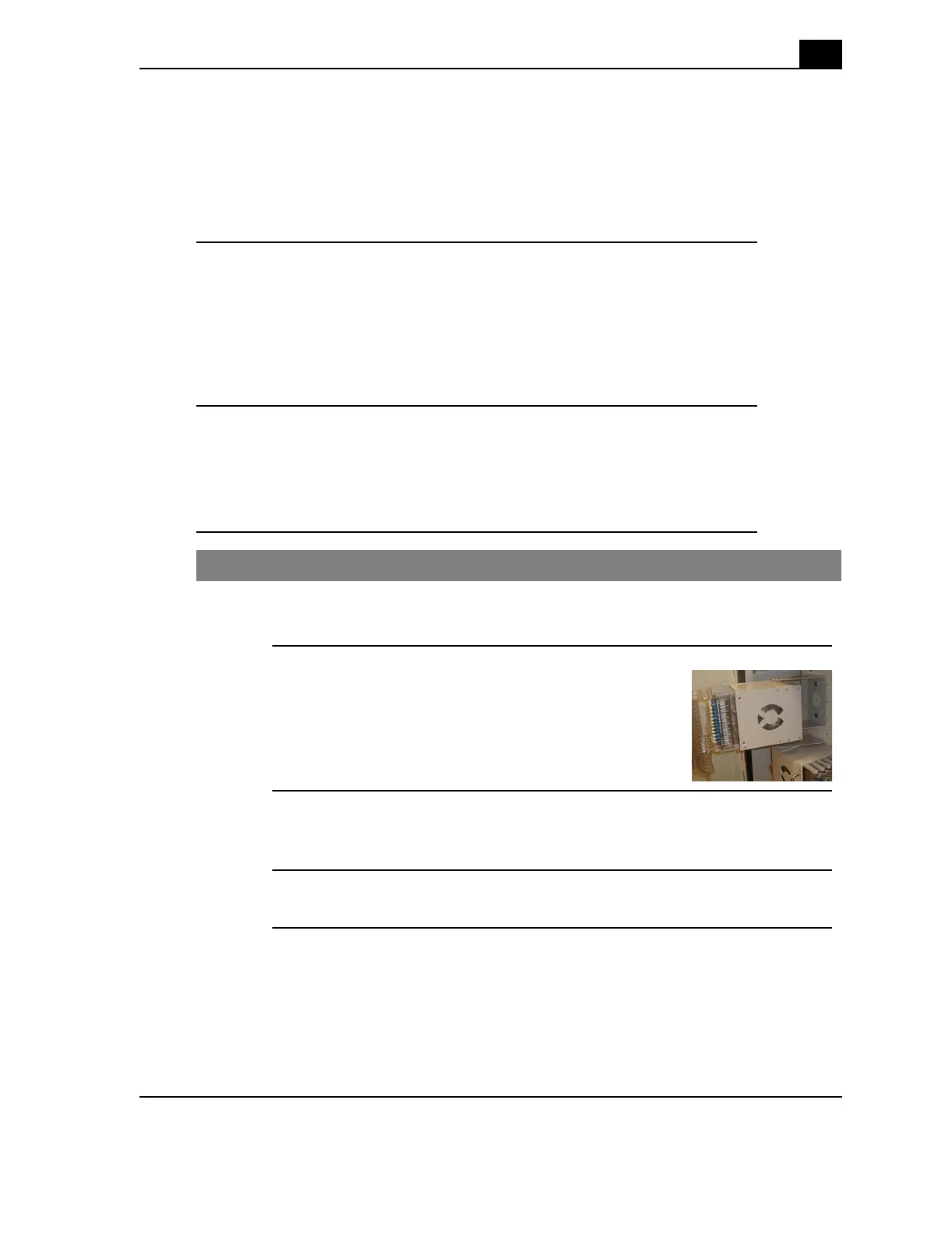

Hold the fiber distribution cassette holder to the
pegboard, then insert and tighten 2 mounting bolts.
3.
Slide each cassette into the holder (hook-side down) to prepare for
connecting fibers. See the photo above.
4.
Fold the cassette holder back until it is flush against the pegboard.
