46
Calix ODC-80 Installation Guide
Proprietary Information: Not for use or disclosure except by written agreement with Calix.
© 2001-2003 Calix. All Rights Reserved.
install copper protection modules
Install T1 labels

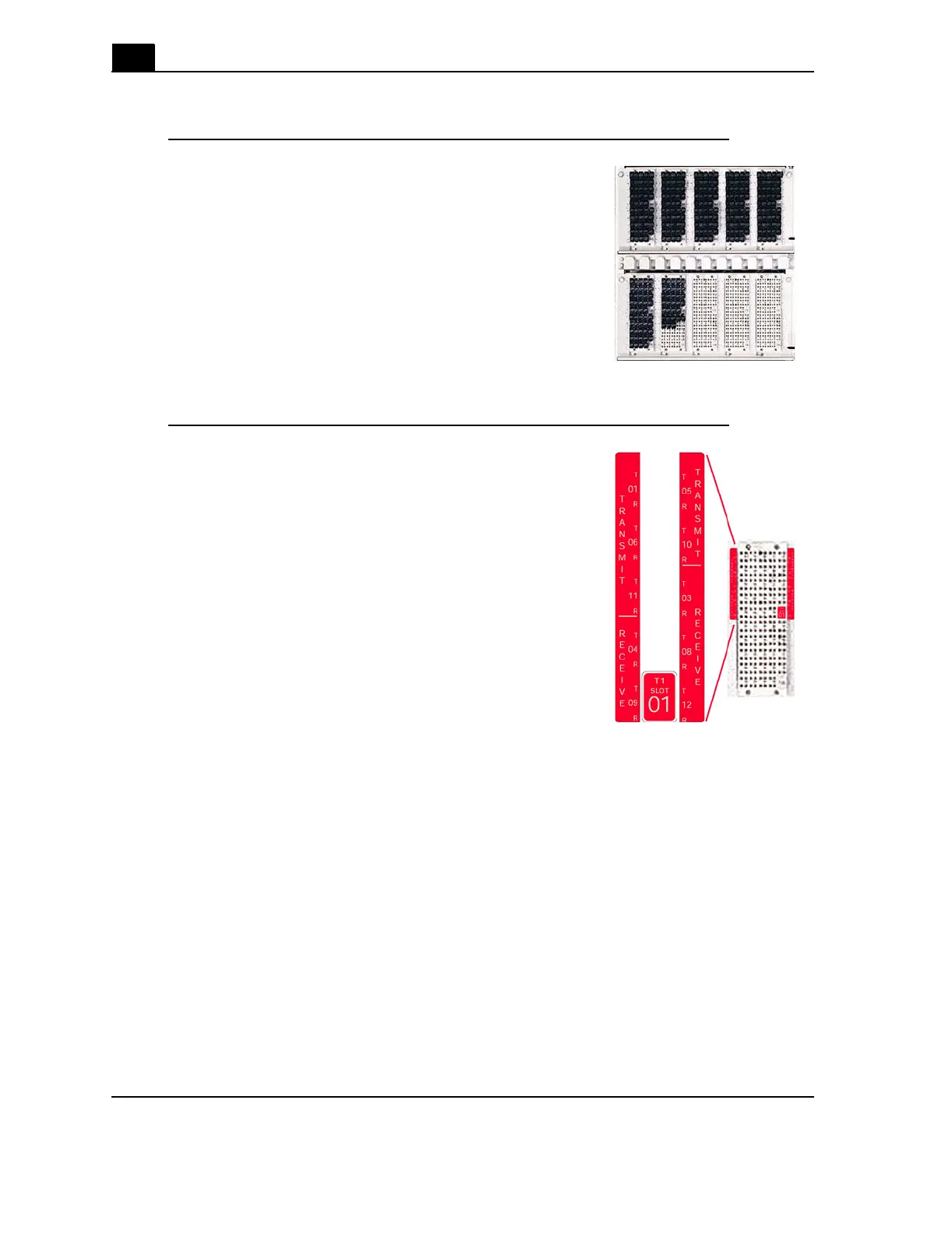

In the rear compartment, install copper protection
modules for all slots corresponding to your configuration.
The sample image shows 320 modules installed in 2 copper
protection panels. Your configuration may differ.
Calix outdoor cabinets ship with labels to indicate which
slots on the copper protection blocks are connected to a
T1 card. Use these labels to alert field technicians to the
possible presence of powered T1 lines at a protection
block.
The figure shows the labels for slot 1 and where you would
apply them to the copper protection block.
