Cooling Fan Access
Lift the roof of the cabinet to access the cooling fans.

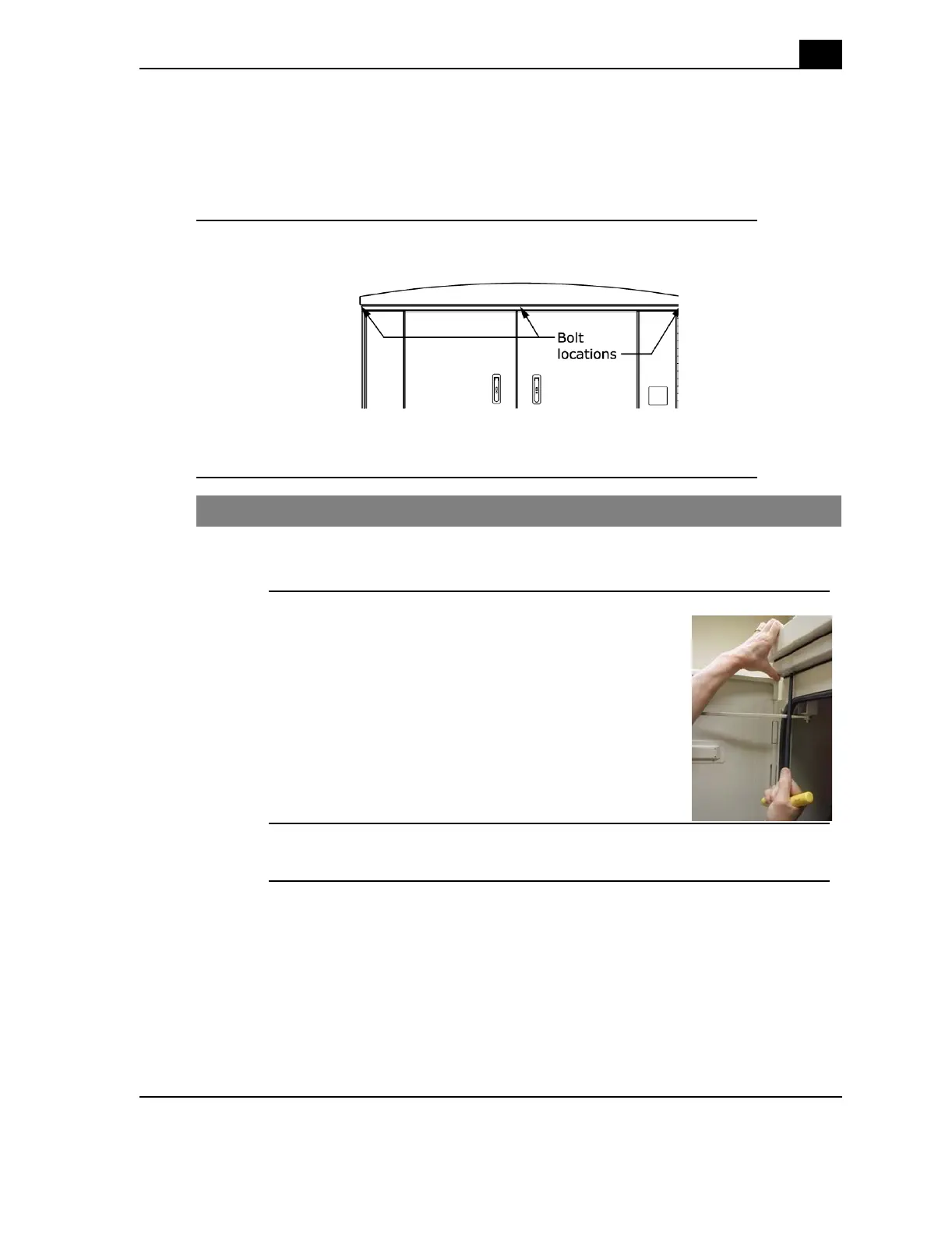

Location of roof retaining bolts
The ODC-80 roof is held in place by 3 retaining bolts at the front of the cabinet.
Procedure to open the roof of the cabinet
Step Action
1.
Open the front and side cabinet doors to access the underside of the roof
overhang.
2.
Locate the retaining bolts in the front of the roof
overhang and remove them using a 5/16" allen wrench.
An allen wrench is provided with the cabinet.
3.
Push the front edge of the roof up until the support arm locks into place.
