Calix ODC-80 Installation Guide
49
Proprietary Information: Not for use or disclosure except by written agreement with Calix.
© 2001-2003 Calix. All Rights Reserved.

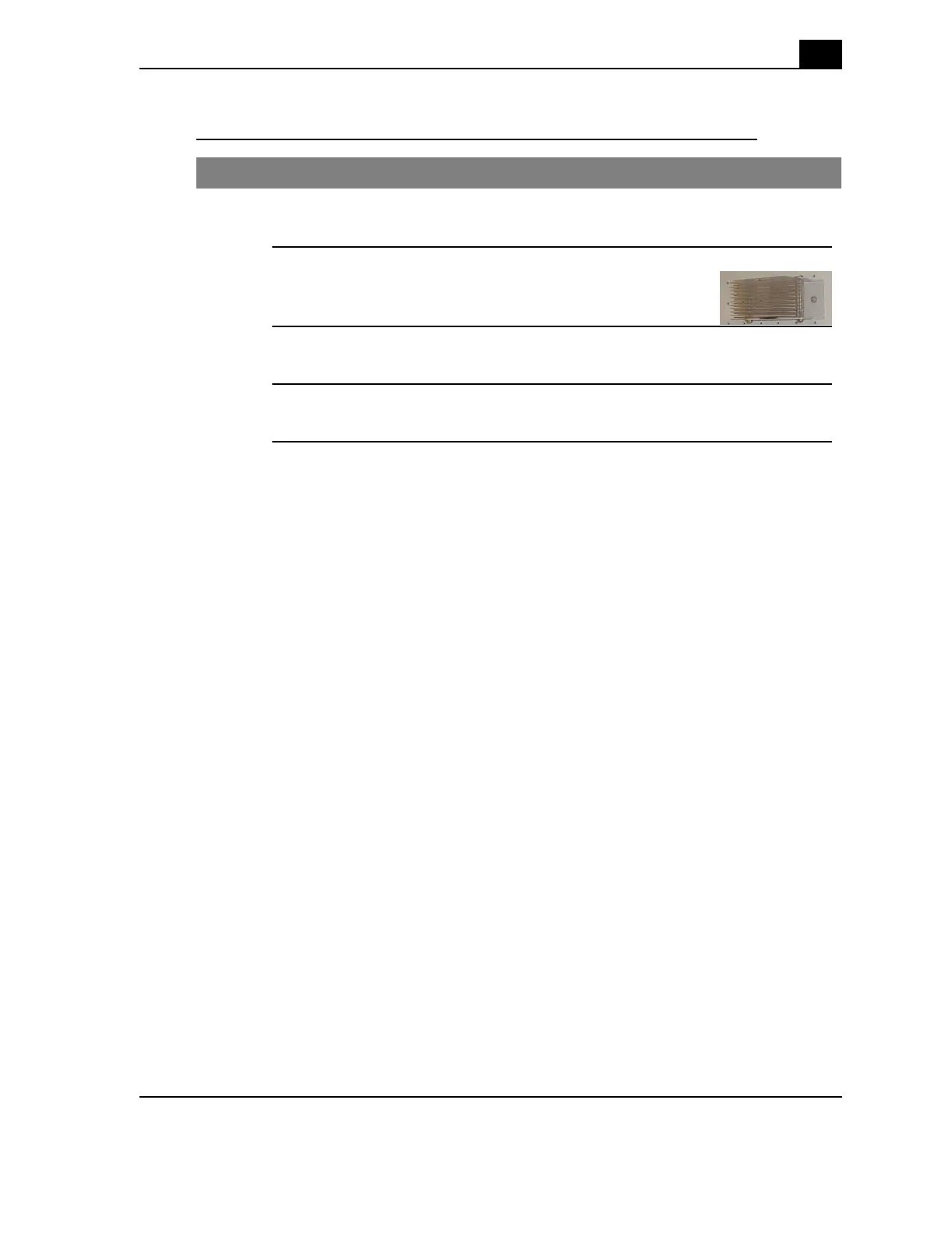

Procedure to install the fiber splice tray holder and trays
Step Action
1.
Choose where you want the fiber splice tray holder to attach to the pegboard.
2.
Hold the fiber splice tray to the pegboard, then insert and
tighten 2 mounting bolts.
3.
Slide the fiber trays into the holder.
4.
Secure the fiber trays to the holder with the supplied velcro strap.
