Calix ODC-80 Installation Guide
Proprietary Information: Not for use or disclosure except by written agreement with Calix.
© 2001-2003 Calix. All Rights Reserved.
6.
Thread a lock washer, a flat washer, and a battery wire terminal lug onto all
other battery terminal bolts. Attach and ensure that each lug is in direct
contact with the greased terminal when you insert the bolt. Tighten the bolt
to a terminal torque as specified by the battery manufacturer. Dynasty
recommends 110 in.-lbs. or 12.4 n-m.
7.

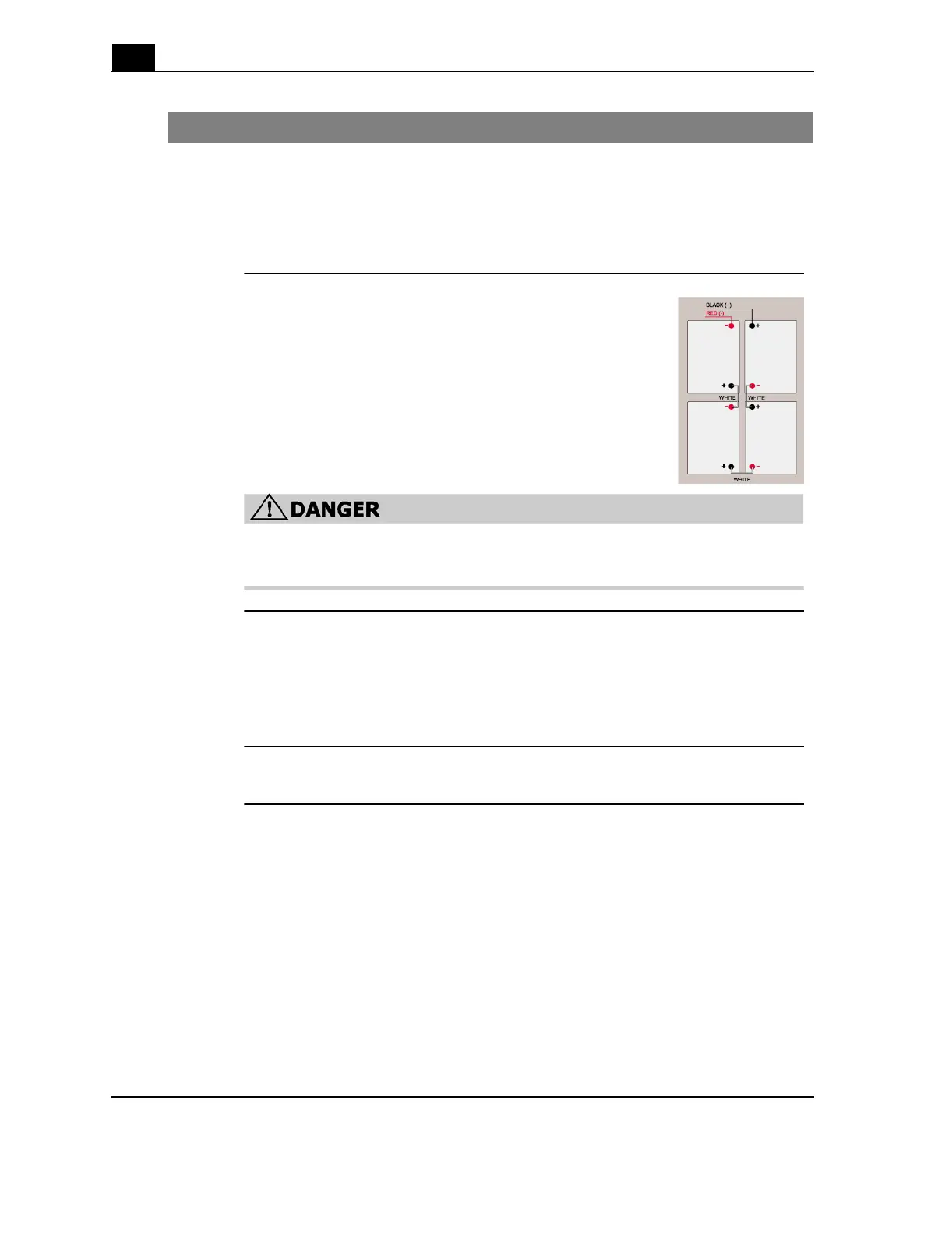

Use an insulated wrench to connect the battery leads
according to the wiring diagram on the inside of the
battery compartment door panel.
Click the diagram to the right to see the wiring diagram
for one battery tray.
DANGER! The black battery lead is positive and the red battery lead is
negative.
8.
Using a volt meter test the battery connection between the negative and
positive battery leads.
a. place the red voltmeter lead on the red negative battery lead
b. place the black voltmeter lead on the black positive battery lead
c. verify that the volt meter reads between -46 and -54 VDC
9.
Set the battery breaker switch above each drawer to ON.
Step Action
