Removing the Roll Holder from Rolls

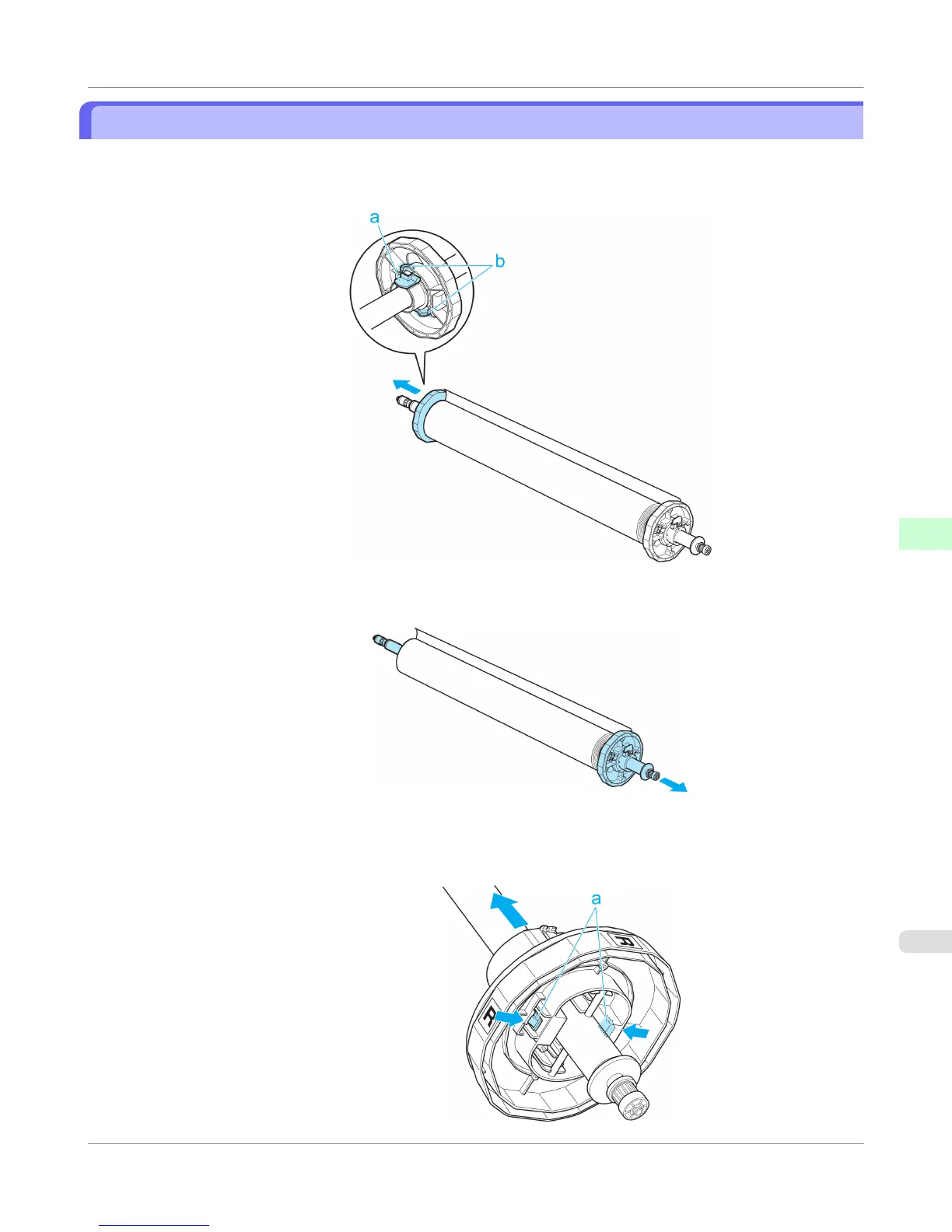

1. Lift the Holder Stopper lever (a) from the shaft side to unlock it. Holding the Holder Stopper at the position indica-
ted (b), remove it from the Roll Holder.
2. Remove the Roll Holder from the roll.
3. When removing attachments, push the tips (a) in as you remove the attachment.
• 3-Inch Paper Core Attachment R ( Roll Holder side)
