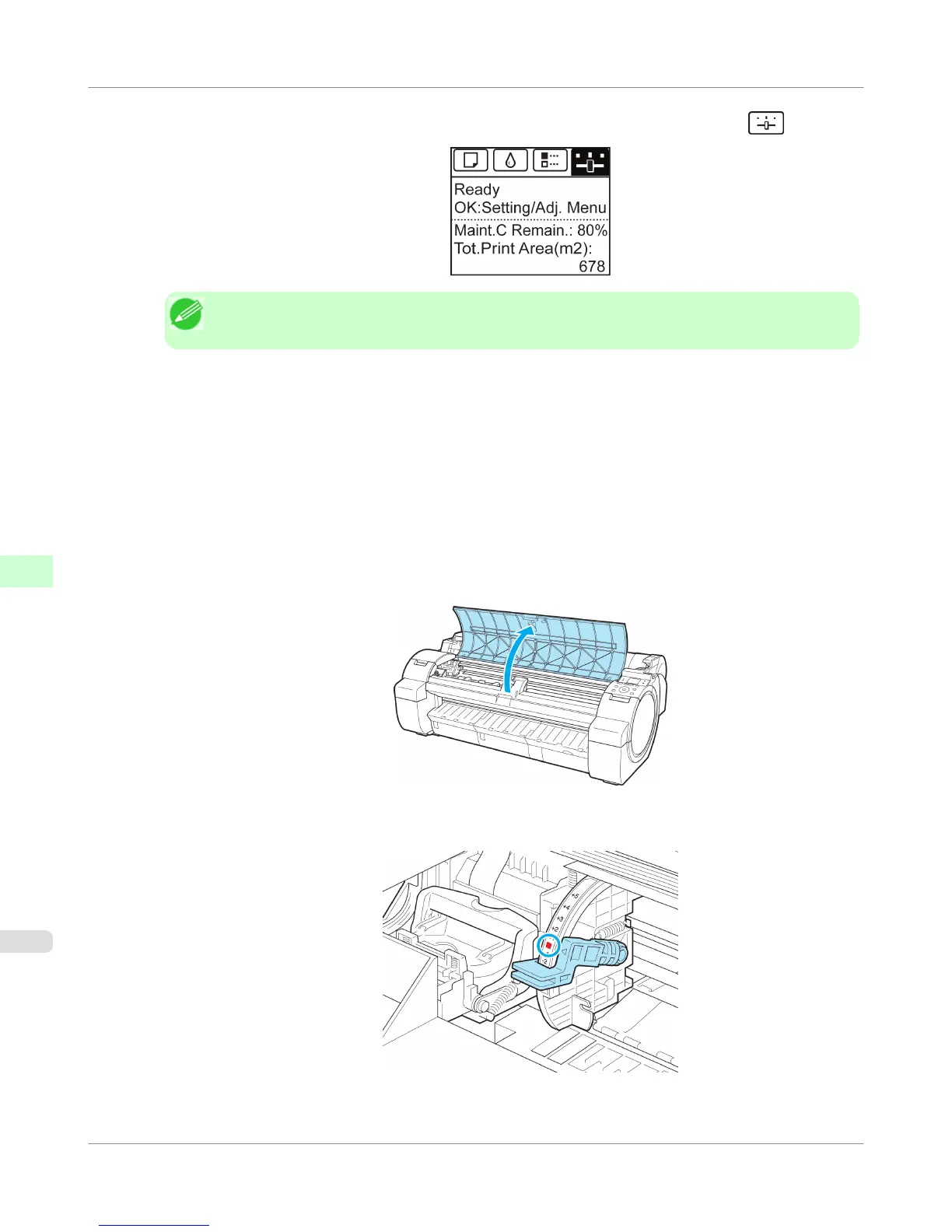

2. On the Tab Selection screen of the Control Panel, press â—€ or â–¶ to select the Settings/Adj. tab ( ).
Note
• If the Tab Selection screen is not displayed, press the Menu button.
3. Press the OK button.
The Set./Adj. Menu is displayed.
4. Press â–² or â–¼ to select Adjust Printer, and then press the OK button.
5. Press â–² or â–¼ to select Head Inc. Adj., and then press the OK button.
After the Carriage is moved, a message is displayed requesting you to open the Top Cover.
6. Open the Top Cover.
7. Align the Angle Adjustment Lever with the red square and close the Top Cover.
Adjustments for Better Print Quality
>
Adjusting the Printhead
>
Adjusting Line Misalignment (Head Inc. Adj.)
iPF655
7
682
