îš‹ Replacing the Cutter Blade
TOP
Chapter 3
Printing Methods for
Different Objectives
Chapter 4
Maintaining the
Printer
Chapter 5
Using the Printer in a
Network Environ-
ment
Chapter 6
Troubleshooting
Chapter 7
Operation of the
Function Menus
Index
Contents
Chapter 2
Using a Variety of
Media
Chapter 1
Basic Procedures
6

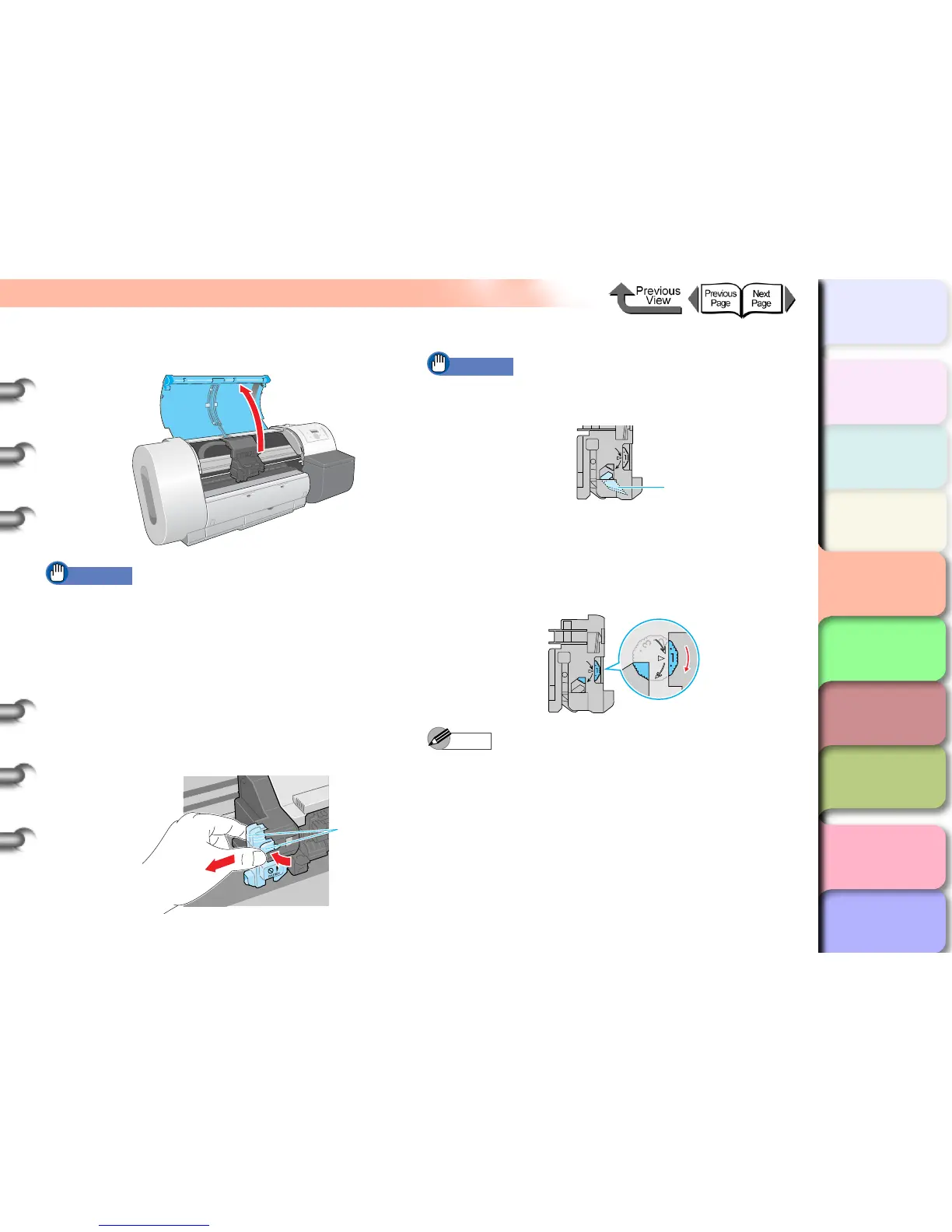

Open the upper cover.
Important
z Do not touch any areas other than those indicated.
Your hands could get dirty or this could damage the
printer.
z If the cutter blade or the carriage is dirty, before you
perform the procedure to adjust the operation of the
cutter blade, wring out a damp, clean cloth and use it
to clean the cutter blade and the carriage.
7
Grasp the cutter blade (a) by the grips then
remove it from the carriage.
Important
z After removing the cutter blade, never touch the
cutting edge (b). This could cause personal injury.
8
Rotate the cutter position adjustment dial 1
notch in the direction shown.
If the dial is already at notch 3 replace the cutter
blade with a new one.
Note
z The position adjustment dial has 3 positions that can
be adjusted; the blade can be used at three steps (1,
2, 3). The blade cannot be used with the dial returned
to a position.
z Once you have set the cutter blade dial to position 3,
procure a new cutter blade for future replacement.
a
b
