1- 3
îš‹ Printer Part Names
TOP
Chapter 3
Printing Methods for
Different Objectives
Chapter 4
Maintaining the
Printer
Chapter 5
Using the Printer in a
Network Environ-
ment
Chapter 6
Troubleshooting
Chapter 7
Operation of the
Function Menus
Index
Contents
Chapter 2
Using a Variety of
Media
Chapter 1
Basic Procedures
îš„

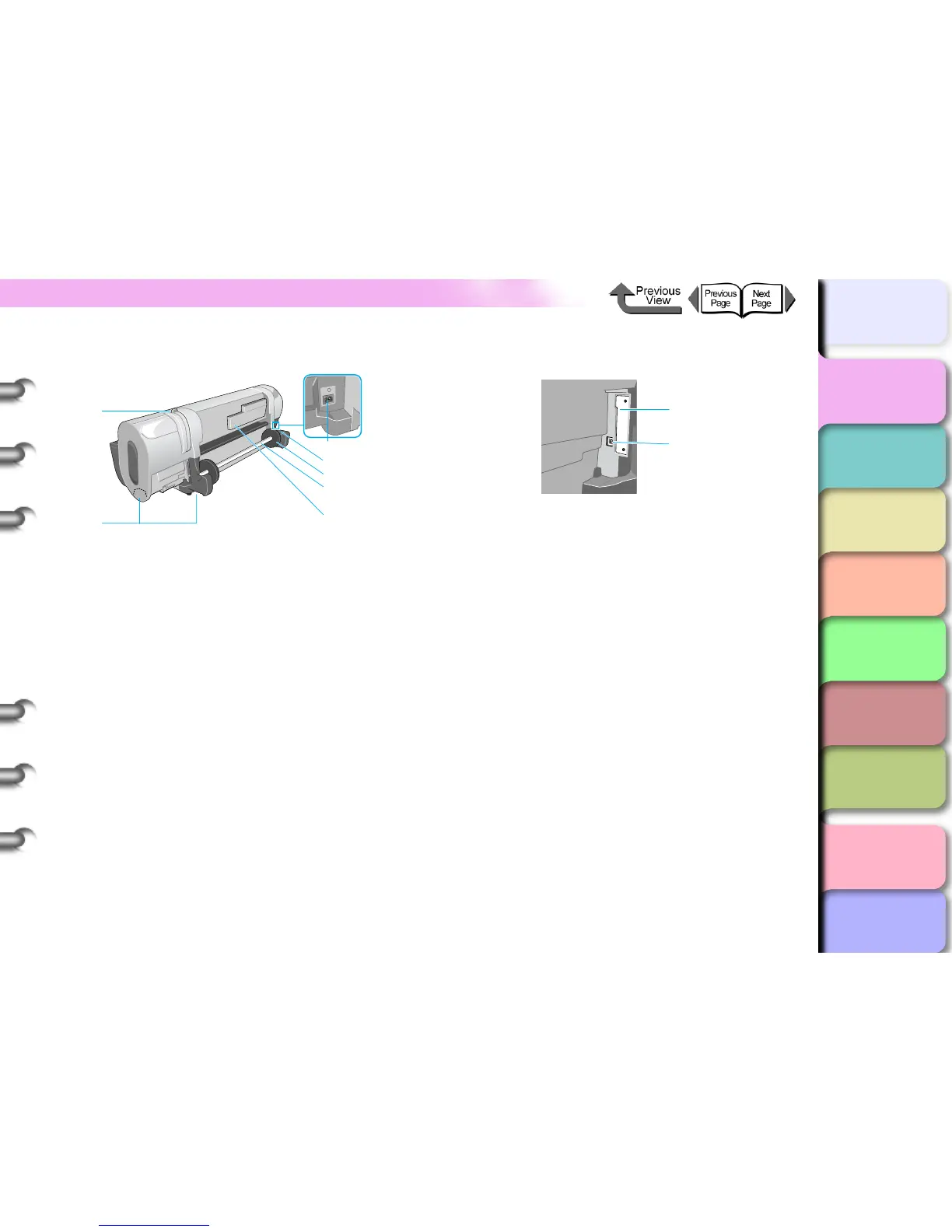

Back View
a Release lever
The lever that releases the media. Push this lever toward
the back to release pressure when you load media, when
you need to shift the paper manually, or when you must
clean inside the printer.
b Lift handles
Grasp the handles provided on the left and right side to
lift or move the printer.
c Power connector
Provides a connection point for the printer power cord.
d Roll holder slot
This groove guides the roll holder. (→ P.2-26)
e Holder stopper
The part that fastens the roll media to the roll holder.
(→ P. 2- 26 )
f Roll holder
The holder where the roll media is loaded. (→ P.2-26)
g Accessory pocket
Holds the printer instructions, tools for assembly, and
extra ink tanks.
îš„
Interface connection point on the back
a Expansion board slot
Provided for network interface or IEEE1394 expansion
board. Remove the two screws and insert the board.
(→ Quick Start Guide)
bUSB port
This is the communication port for USB 2.0 Hi-Speed.
Connect the USB cable here to connect the printer to the
computer via USB. (→ Quick Start Guide)
a
b
d
e
f
g
c
a
b
