Chapter 6 Miscellaneous Information

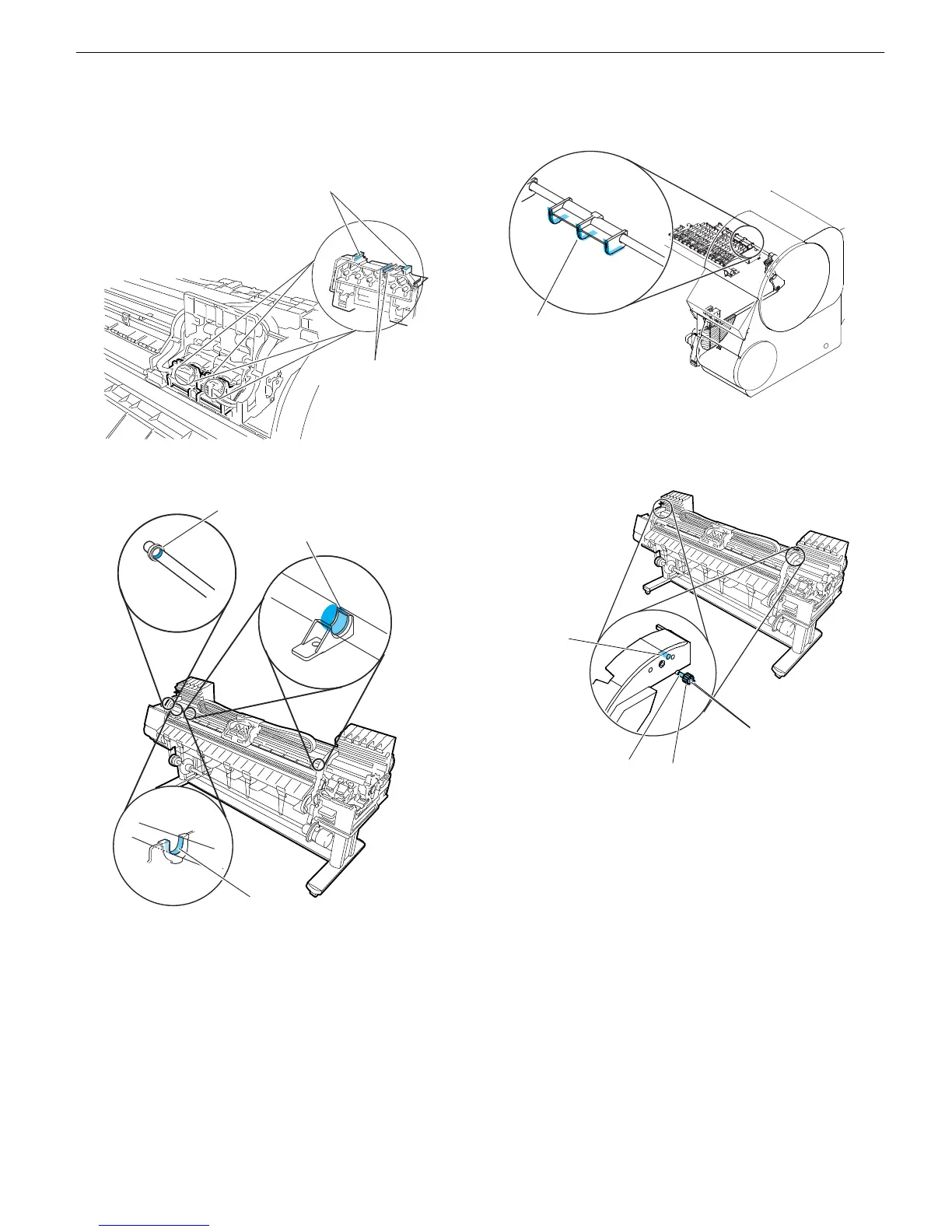

■iPF9100 example
・ Joint base rails and ribs
・ LF roller backup/bushing/feed roller bearing
・ Pinch roller release cam
・ Top cover stay shaft hole/gear shaft/shaft end/gear
tooth plane
LFローラバックアップ(2カ所):
パーマルブ G2 約12mg
LFローラベアリン
グ
:
パーマルブ G2 約12mg
ブッシング:
パーマルブ G2 約12m
g
LF roller bearing:
Permalub G2, about 12 mg
LF roller backup (two positions):
Permalub G2, about 12 mg
Bushing:
Permalub G2, about 12 mg
Rail:
Molycote PG-641, about 12 mg
Rib:
Molycote Pg-641,
about 12 mg
Pinch roller release cam
(three positions x 13):
Permalub G2, about 12 mg
Top cover stay
shaft hole:
Permalub G2,
about 24 mg
Top cover stay gear shaft:
Permalub G2, about 24 mg
Top cover stay gear tooth plane:
Permalub G2, about 12 mg
Top cover stay shaft end:
Permalub G2, about 24 mg
