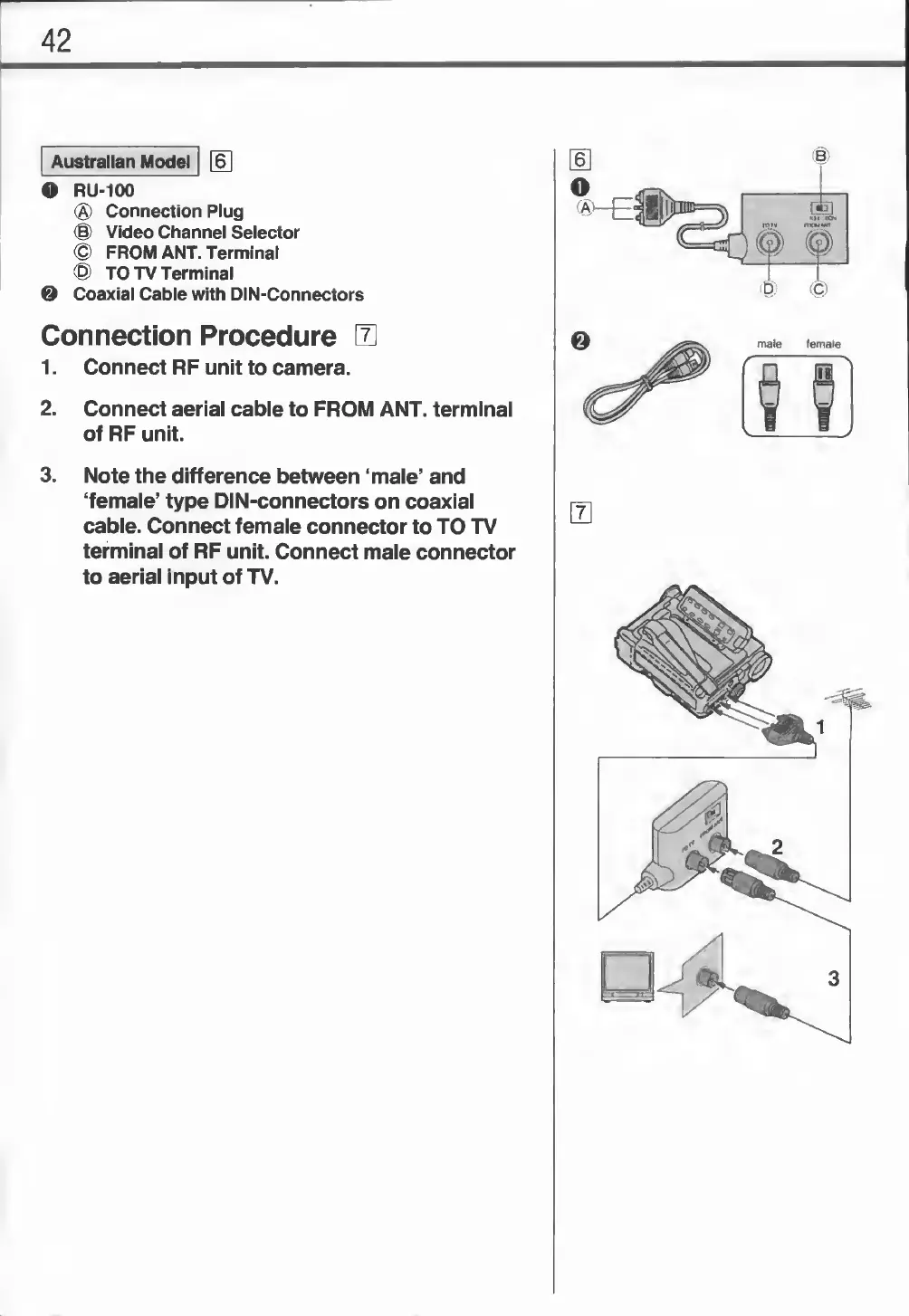

42
Australian
Model
n
O
RU-100
@
Connection
Plug
(§)
Video
Channel
Selector
©
FROM
ANT.
Terminal
®
TO
TV
Terminal
©
Coaxial
Cable
with
DIN-Connectors
Connection
Procedure
0
1.
Connect
RF
unit
to
camera.
2.
Connect
aerial
cable
to
FROM
ANT.
terminal
of
RF
unit.
3.
Note
the
difference
between
‘male’
and
‘female’
type
DIN-connectors
on
coaxial
cable.
Connect
female
connector
to
TO
TV
terminal
of
RF
unit.
Connect
male
connector
to
aerial
input
of
TV.
male
female
m
