13
Concrete Beam Direct Mount
Used to mount the fan directly under a single concrete beam. Minimum thickness 6” / Maximum thickness
10”.
1. Secure beam mount brackets to the concrete beam. Use four (4) 1/2” x 3” long tapcon screws with
1/2” washers to secure each bracket to the beam.
2. Install 1/2”-13 x 1.5” bolts with 1/2” washers through the bottom of the beam mount bracket.
3. Place pivot extension assembly through bolts and secure with 1/2”-13 nylock nuts and 1/2” washers.
4. Torque hardware to 75 ft-lbs/101 Nm.
To install extension assembly, refer to “Installing Pivot Mount Assembly” on page 25.

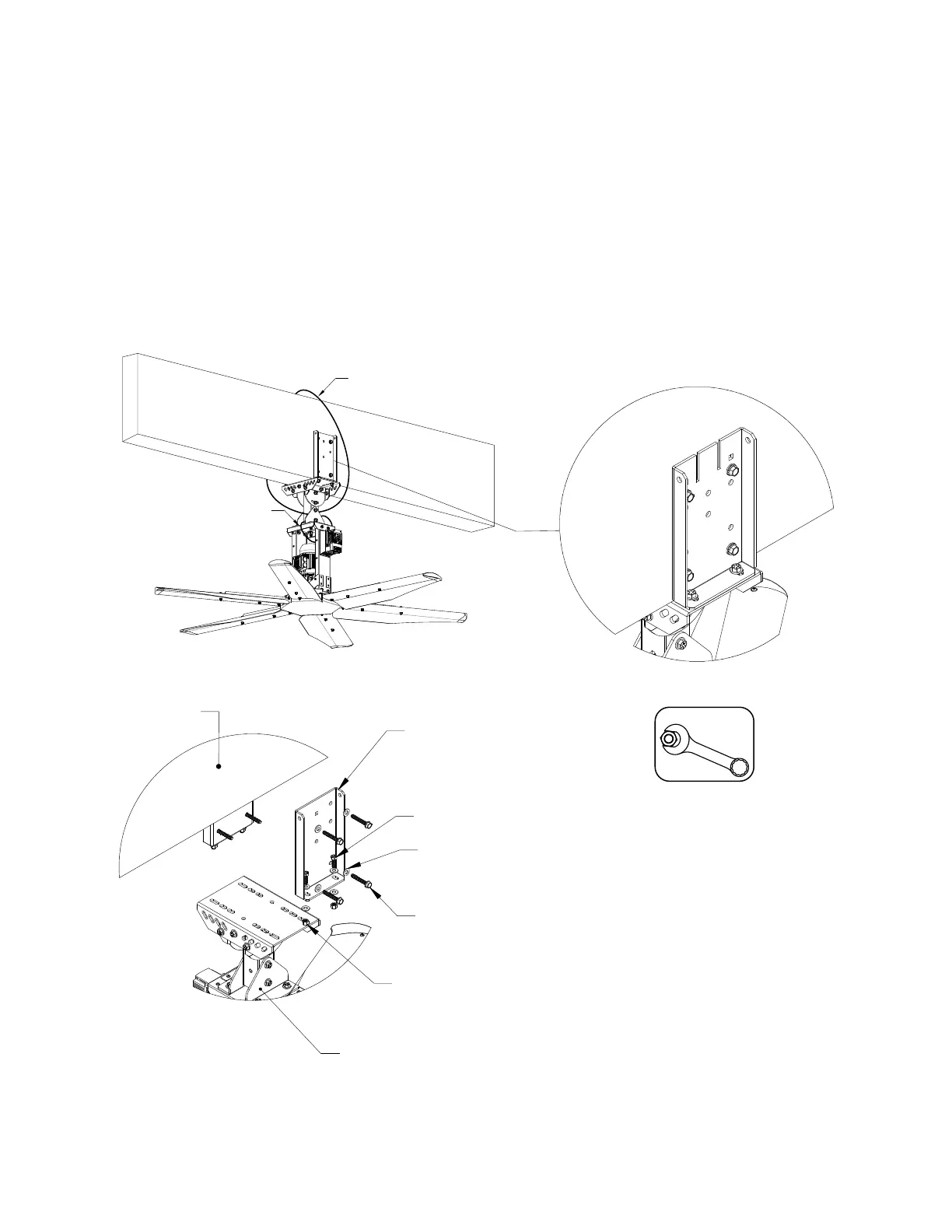

Figure 9 - Concrete Direct Mount Details
Pivot Extension
Assembly
NOTE: All hardware must be minimum
Grade 8. Do not use torque value for
tapcon screws, follow package details for
installing tapcon screws.
Hardware Torque
1/2” Hardware
75 Ft-lbs/101 Nm
Concrete
Beam
Mount
1/2”-13 x 1.5” Bolt
and 1/2” Washer
1/2” Washer
1/2 x 3” Long
Tapcon
1/2”-13 Nylock Nut
and 1/2” Washer
Safety Cable
Safety Cable
To Next Page
