Mounting Fan to Extension

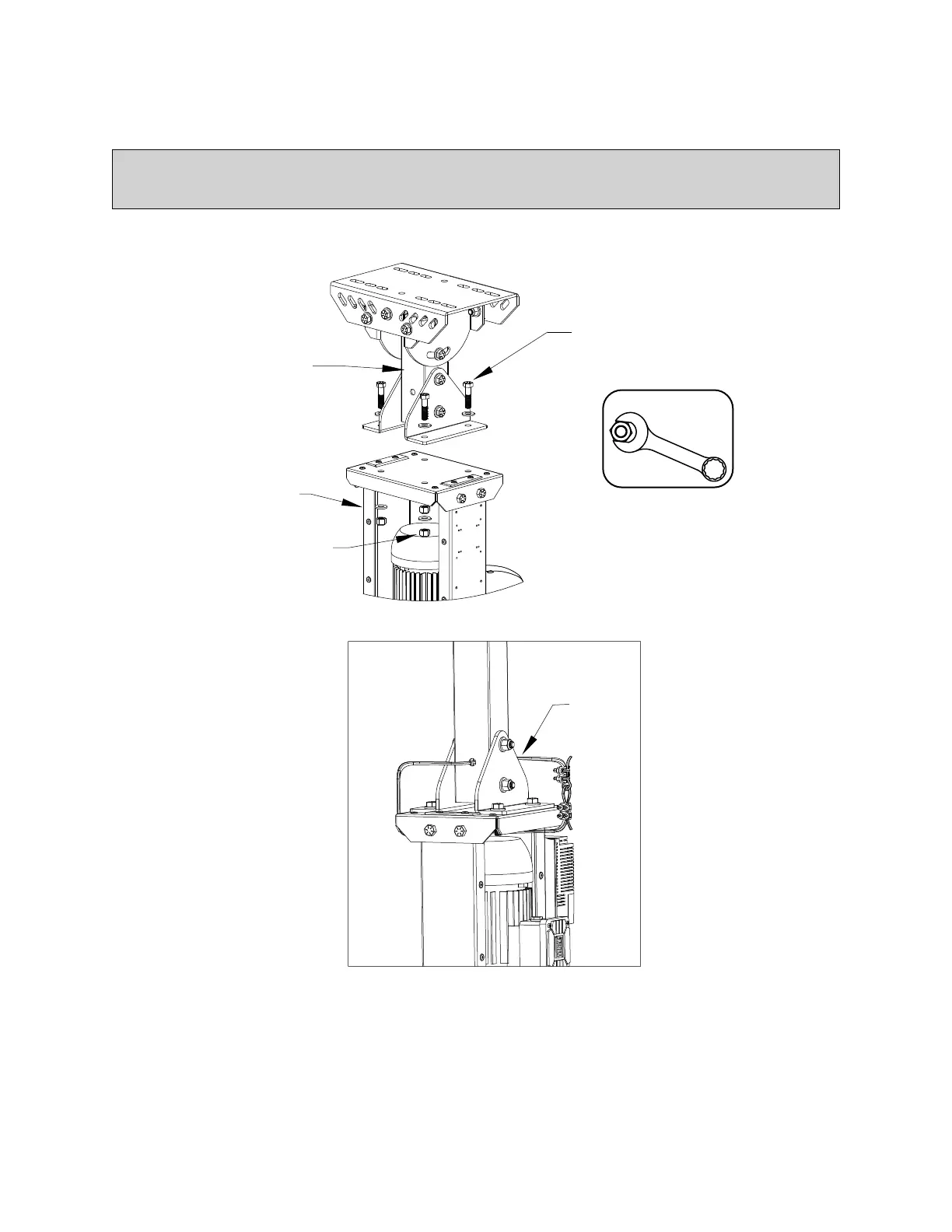

Figure 26 - Motor Assembly Mounting Details
Attention!
Every connection between components (mounts, extensions, fan frame) must include a Guy Wire
(safety cable), as shown throughout this manual, with loops at both ends.
Pivot Extension
Assembly
Motor
Assembly
1/2”-13x1.5” Bolt
and 1/2” Washer
1/2”-13 Nylock Nut
and 1/2” Washer
Guy
Wire
Hardware Torque
1/2” Hardware
75 Ft-lbs/101 Nm
NOTE: All hardware must
be minimum Grade 8.
To Next Page
