15
Wood Beam Direct Mount
Used to mount directly under single laminated wood beam. Beams should be 6”-10” wide.
1. Secure beam mount brackets to the wood beam. Use four (4) 1/2”x13 thru-bolts (by others) with 1/2”
washers. Secure with 1/2”-13 nylock nuts and 1/2” washers.
2. Install 1/2”-13x1.5” bolts with 1/2” washers through the bottom of the beam mount bracket.
3. Place pivot extension assembly through bolts and secure with 1/2”-13 nylock nuts and 1/2” washers.
4. Torque hardware to 75 ft-lbs/101 Nm.
To install extension assembly, refer to “Installing Pivot Mount Assembly” on page 25.

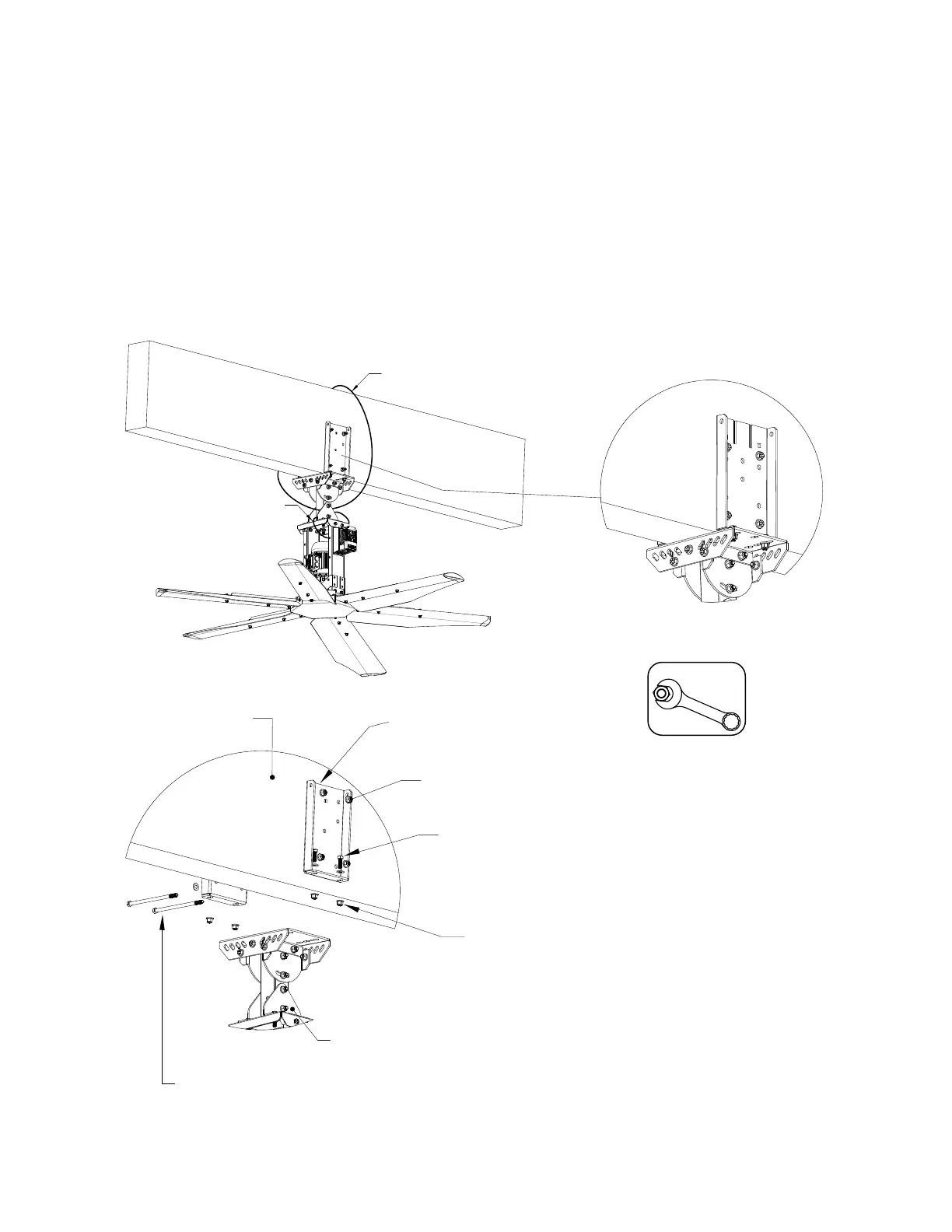

Figure 11 - Wood Beam Direct Mount Details
Hardware Torque
1/2” Hardware
75 Ft-lbs/101 Nm
Pivot Extension
Assembly
1/2”-13 x 1.5” Bolt
and 1/2” Washer
Wood Beam
Beam Mount
1/2”-13 Nylock Nut
and 1/2” Washer
1/2”-13 Nylock Nut
and 1/2” Washer
1/2”-13 Thru-Bolt (by others)
NOTE: All hardware must
be minimum Grade 8.
Safety Cable
Safety Cable
Beam mount bracket should be flush with bottom of beam.
