ECPM03 Configuration
General Overview
The ECPM03 board allows the user to configure functionality of the system through the setup menus on its
LCD as shown to the right. Below the ECPM03 LCD are 4 buttons for navigation: MENU, UP, DOWN,
ENTER.
The MENU button typically takes you up one level in the menu tree while the ENTER button takes you
down one level. UP and DOWN navigate through the same level of the menu tree and also allow the user
to change the value of a parameter.
After changing some parameters in the configuration menus, the user needs to press MENU multiple times
until the screen displays the message “Saved. Press any Key to Reboot.” As indicated, the processor will
reboot after any key is pressed. This allows the board to correctly process the parameters changed.
Access the Configuration menu:
1. Starting from the Main menu, which shows HVLS and the software revision, press the MENU button.
Screen displays “Configuration.” Press the ENTER button. Screen displays “Enter Pass Code.”
2. Use passcode 1111 to access the Configuration menu.
3. Use the Up button to change the first 0 to 1 and then press the ENTER button. Use the Up button to
change the second 0 to 1 and then press the ENTER button. Repeat this for the third and fourth 0.
4. If “Wrong Pass Code Enter Again” is displayed, press the ENTER button to try again.
5. Once the correct passcode is entered in, access to change operating parameters is granted.
The menu system allows full access to every configurable parameter in the control system. The
parameters are factory configured to the specific application. Parameters may need to be modified to fine-
tune automatic operation or to add a sensor, HMI, or fan to a system after the original setup. After
changing the desired parameters, press MENU multiple times to get back to the main menu and one more
time to reboot the processor after seeing “Saved. Press any Key to Reboot.”

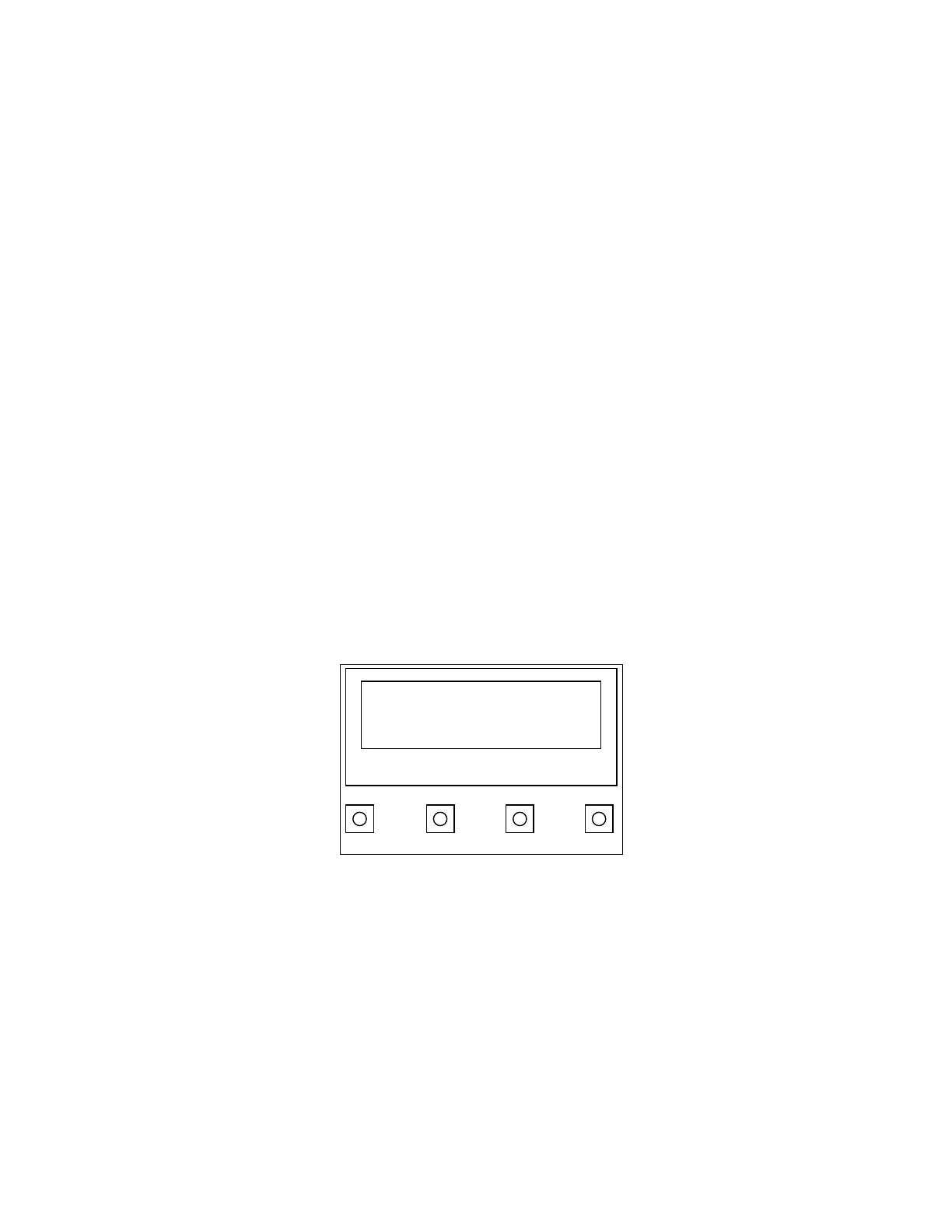

Figure 42 - ECPM03 Configuration Screen
Product Mode
The Product Mode menu allows the user to set the fan configuration between HVLS or General Ventilation
Fan software settings. Software settings vary between HVLS and General Ventilation Fans. Always verify
that the software system is set for the correct fan. Refer to the menu system is illustrated on page 56.
