Installing Pivot Mount Assembly
1. Locate where the fan will mount.
2. Install the angle top bracket and hat channel. Insert the 1/2”-13 x 4” bolt through the bottom of the hat
channel. Secure with 1/2”-13 nylock nuts and washers.
3. Insert 1/2”-13 x 2.5” bolts with 1/2” washers through the I-Beam clamp.
4. Place pivot extension assembly through bolts and secure with 1/2”-13 nylock nut and 1/2” washers.
5. Torque hardware to 75 Ft-lbs/101 Nm.

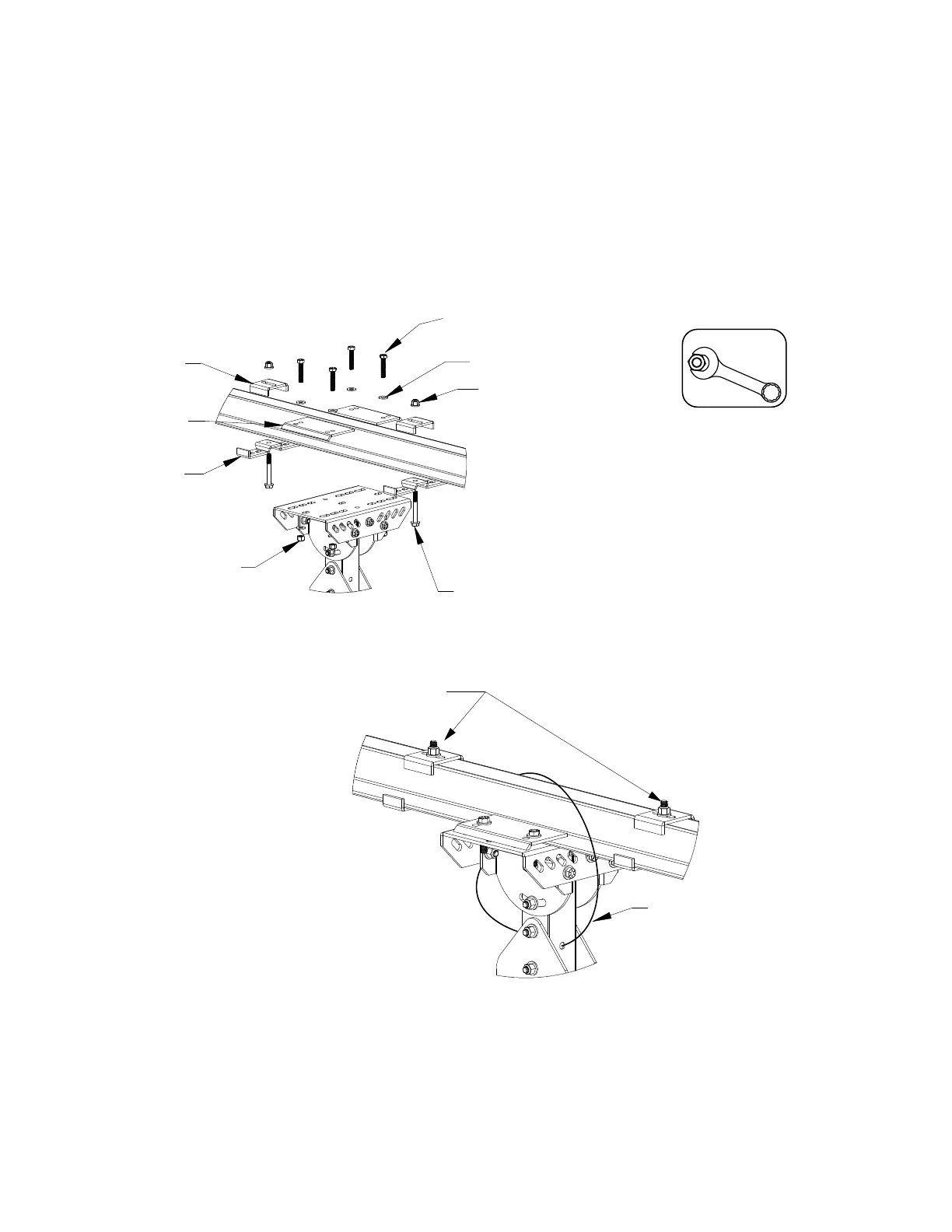

Figure 22 - Pivot Extension Assembly Details
Angle Top
Bracket
1/2”-13 x 2.5” Bolt
1/2” Washer
1/2”-13 Nylock Nut
I-Beam
Clamp
1/2”-13
Nylock Nut
Hat
Channel
1/2”-13 x 4” Bolt
and 1/2” Washer
Hardware Torque
1/2” Hardware
75 Ft-lbs/101 Nm
NOTE: All hardware must
be minimum Grade 8.
Inner Spacer Brackets used on Top Mount
OWSJ, Bottom Mount OWSJ, Multi-Mount
Concrete Assemblies
Safety Cable
