Hub Assembly
NOTE: The hub assembly is pre-installed to the motor assembly from the factory. Figure 25
provides reference for maintenance when required.

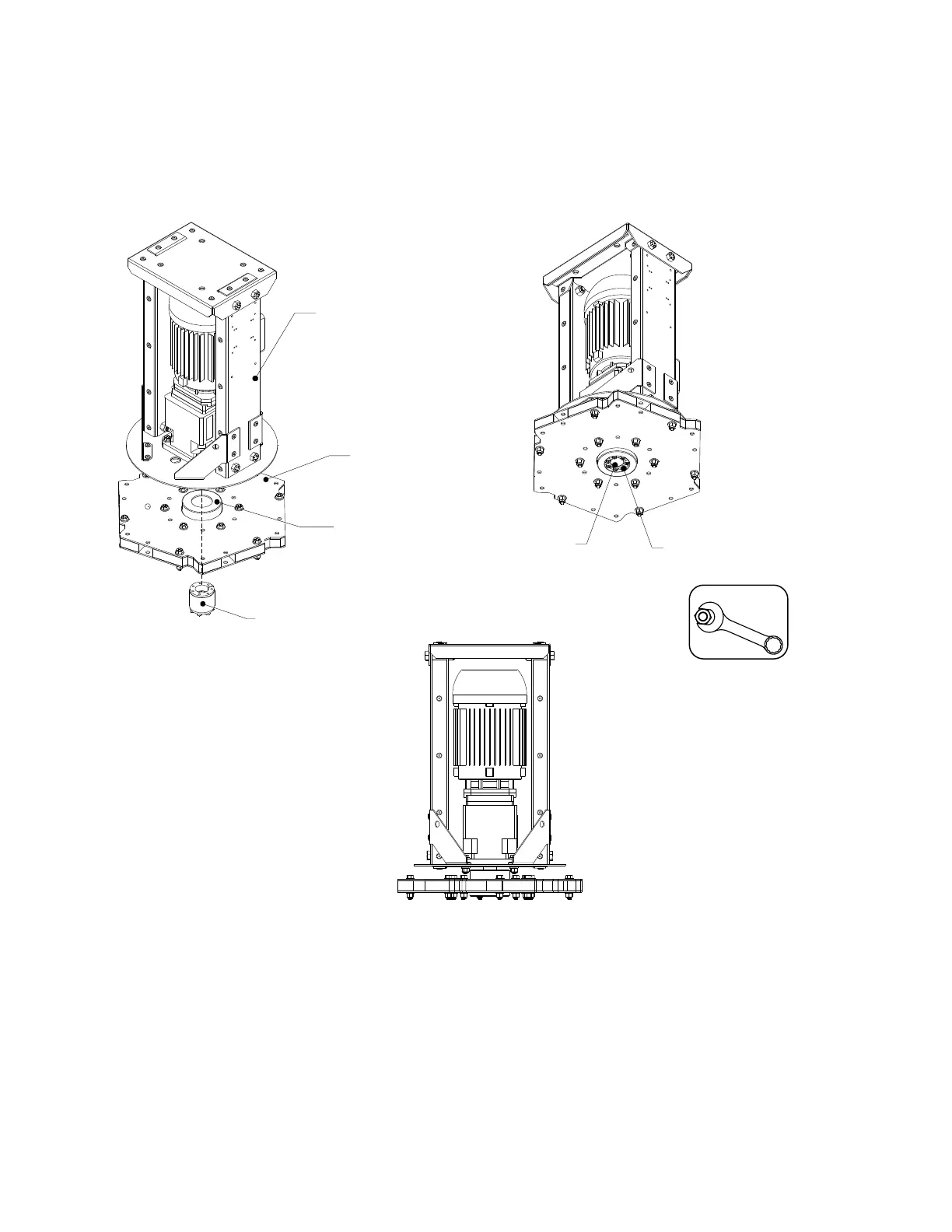

Figure 25 - Hub Assembly Details
Keyless
Bushing
Hub
Assembly
Make sure top of
bushing is flush
with ledge on top of
hub.
Motor
Assembly
Bushing
Installed
Tighten evenly until all
screws are at required
torque without moving.
Hardware Torque
Set Screw
12 Ft-lbs/16 Nm
