16
Wood Truss Mount
Used to mount fan to a wood truss structure.
1. Place four (4) 1/2”x13 thru-bolts (by others) with 1/2” washers through the multi-mount bracket.
2. Place pivot extension assembly through bolts and secure with 1/2”-13 nylock nuts and 1/2” washers.
3. Torque hardware to 75 ft-lbs/101 Nm.
To install extension assembly, refer to “Installing Pivot Mount Assembly” on page 25.

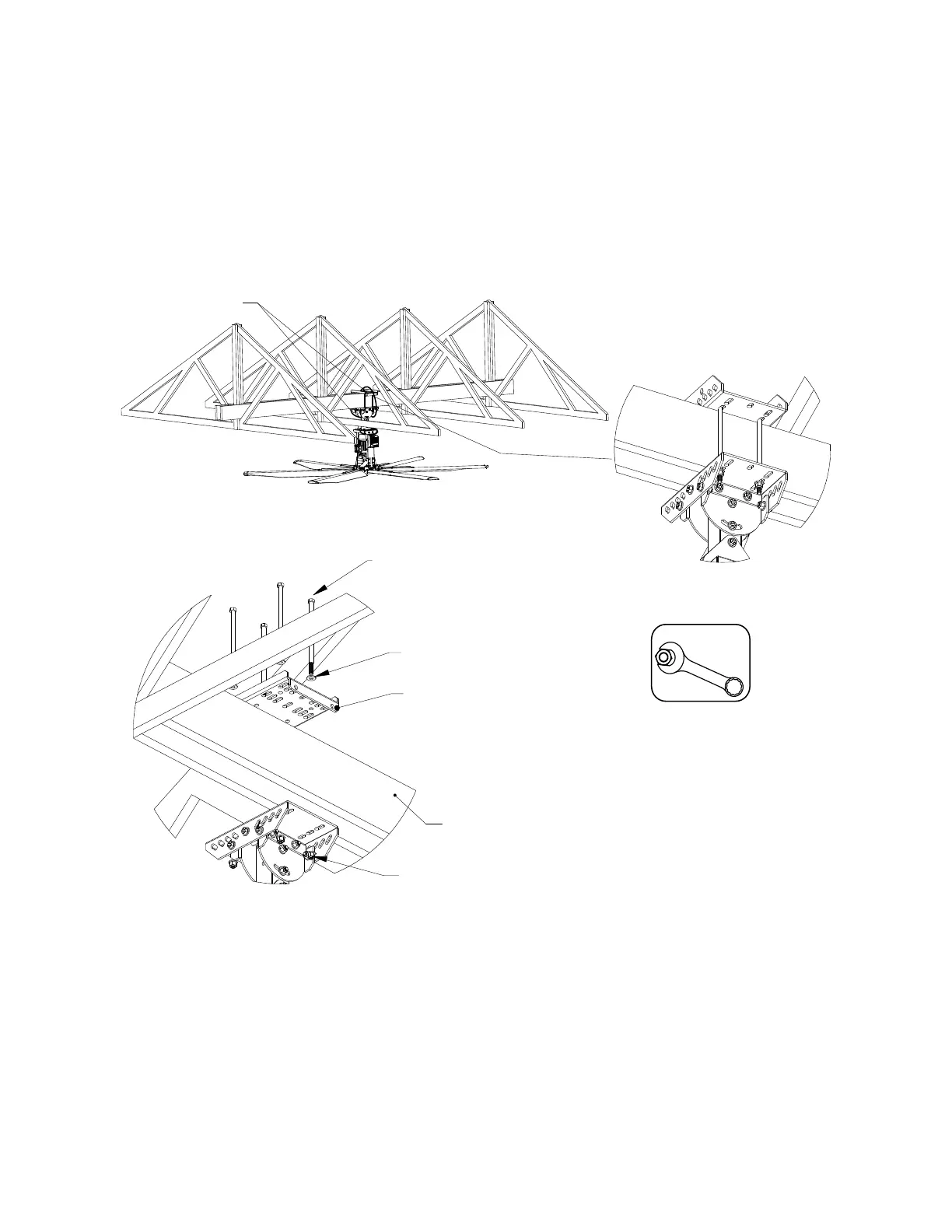

Figure 12 - Wood Truss Mount Details
NOTE: All hardware must
be minimum Grade 8.
1/2” Washer
Wood Truss
Multi-Mount
1/2”-13 Thru-Bolt (by others)
1/2”-13 Nylock Nut
and 1/2” Washer
Hardware Torque
1/2” Hardware
75 Ft-lbs/101 Nm
Safety Cable
To Next Page
