31

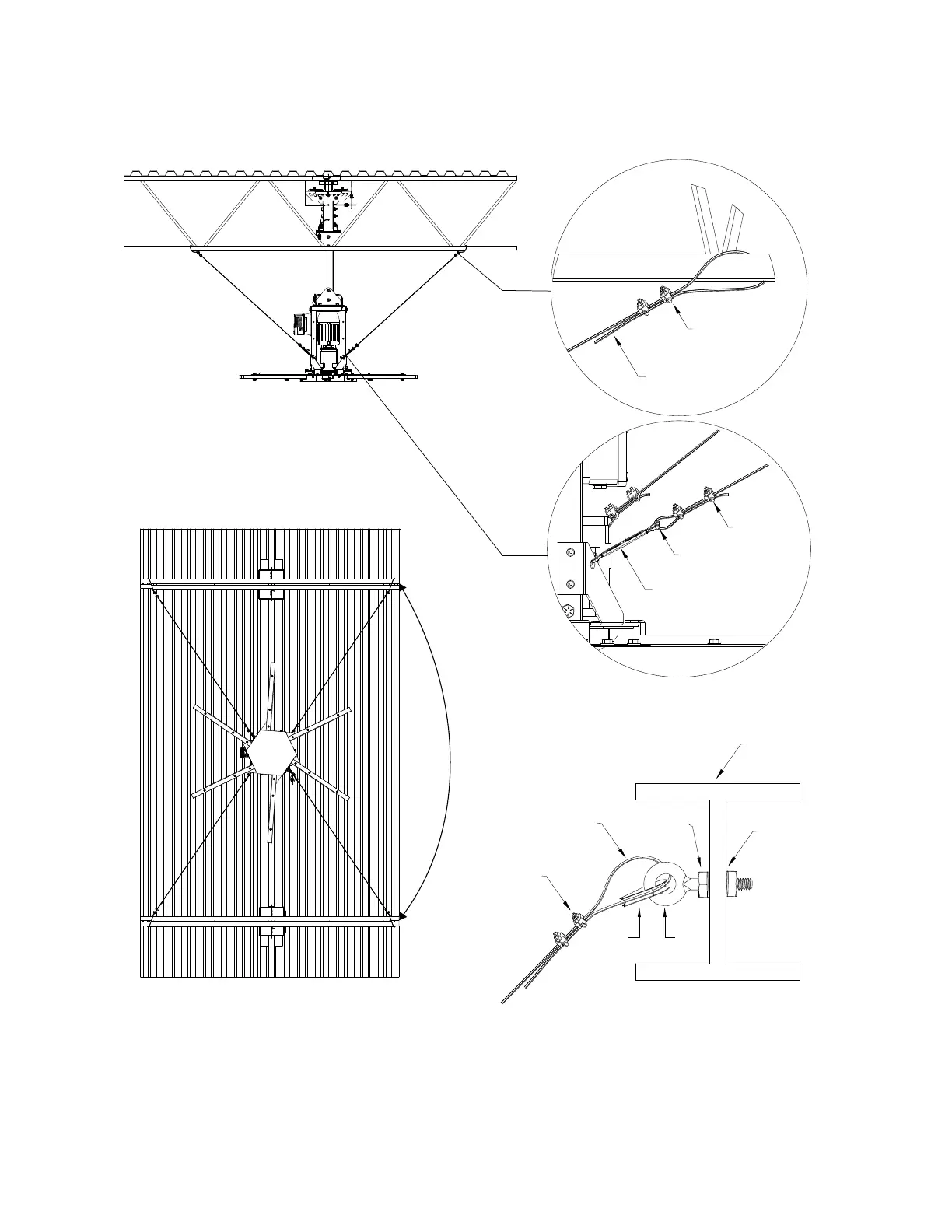

Figure 28 - Guy Wire Installation Details

90°

1/8” Cable (50 Ft)

1/8” Cable

Clamps

304 SS Clevis

Turnbuckle

1/8” Cable (50 Ft)

1/8” Cable

Clamps

1/4”

Thimble

I Beam

Washer

and Nut

Eye

Bolt

Washer

and

Nut

1/8” Cable

Clamps

1/4”

Thimble
