4.27Disassembly and cleaning procedures

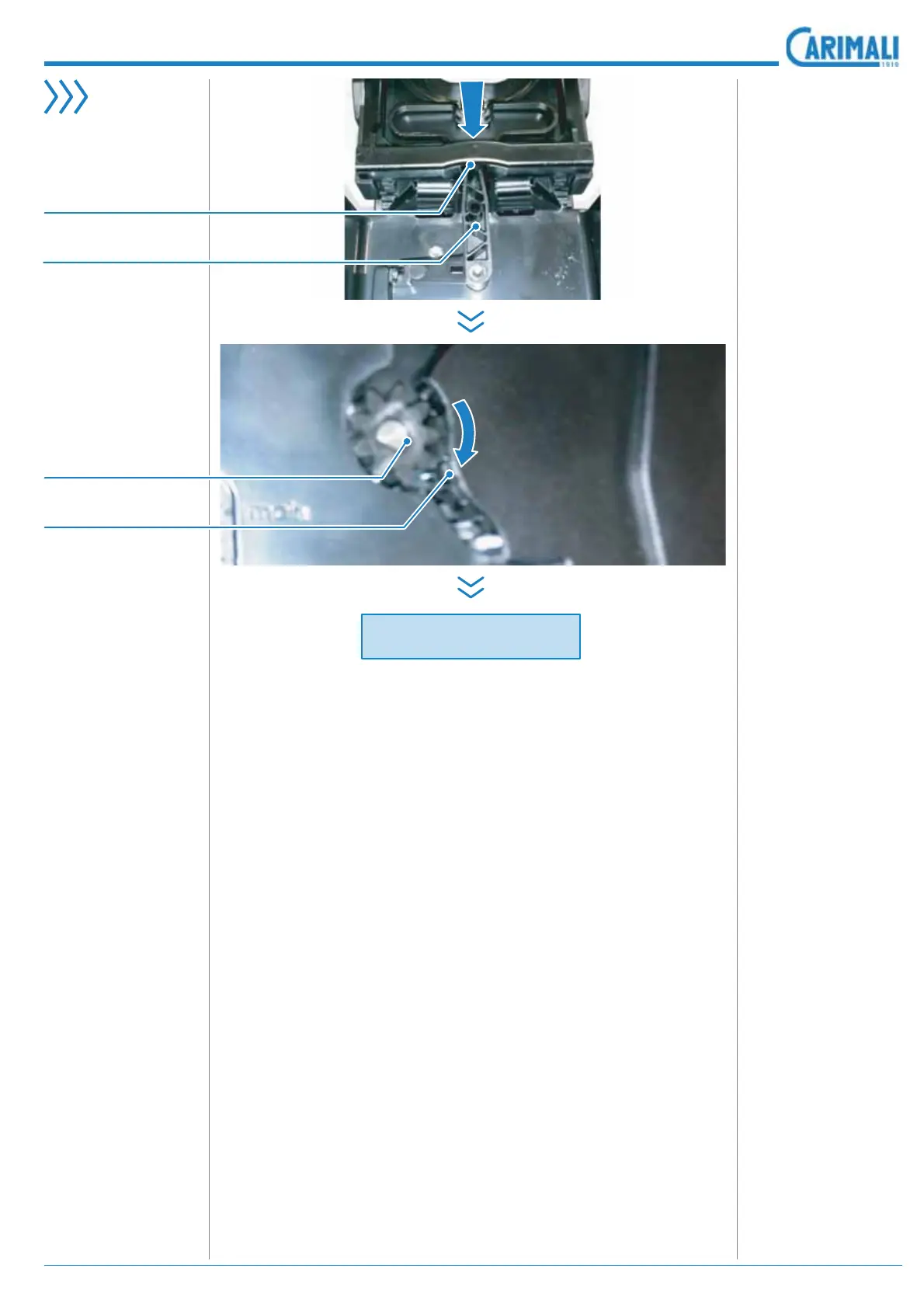

For reassembling
the Fresh Brew
group, bring the
group closer to its
seat.
Align the group head
with the motor arm.
Align the pinion
alignment guides
rotating the group
clockwise.
Description end
Disassembl
y
o
f
the Fresh Brew
g
rou
p
Group head slot
Motor arm
Pinion
Alignment guides
