Carimali BlueDotPlus - User Terminal (Code 96.05318)

3.25Installation
The user terminal consists of the logic board powering the touch
screen display and the secondary utilities with the relevant sensors.
Utilities logic board (Item single code 96.05273)

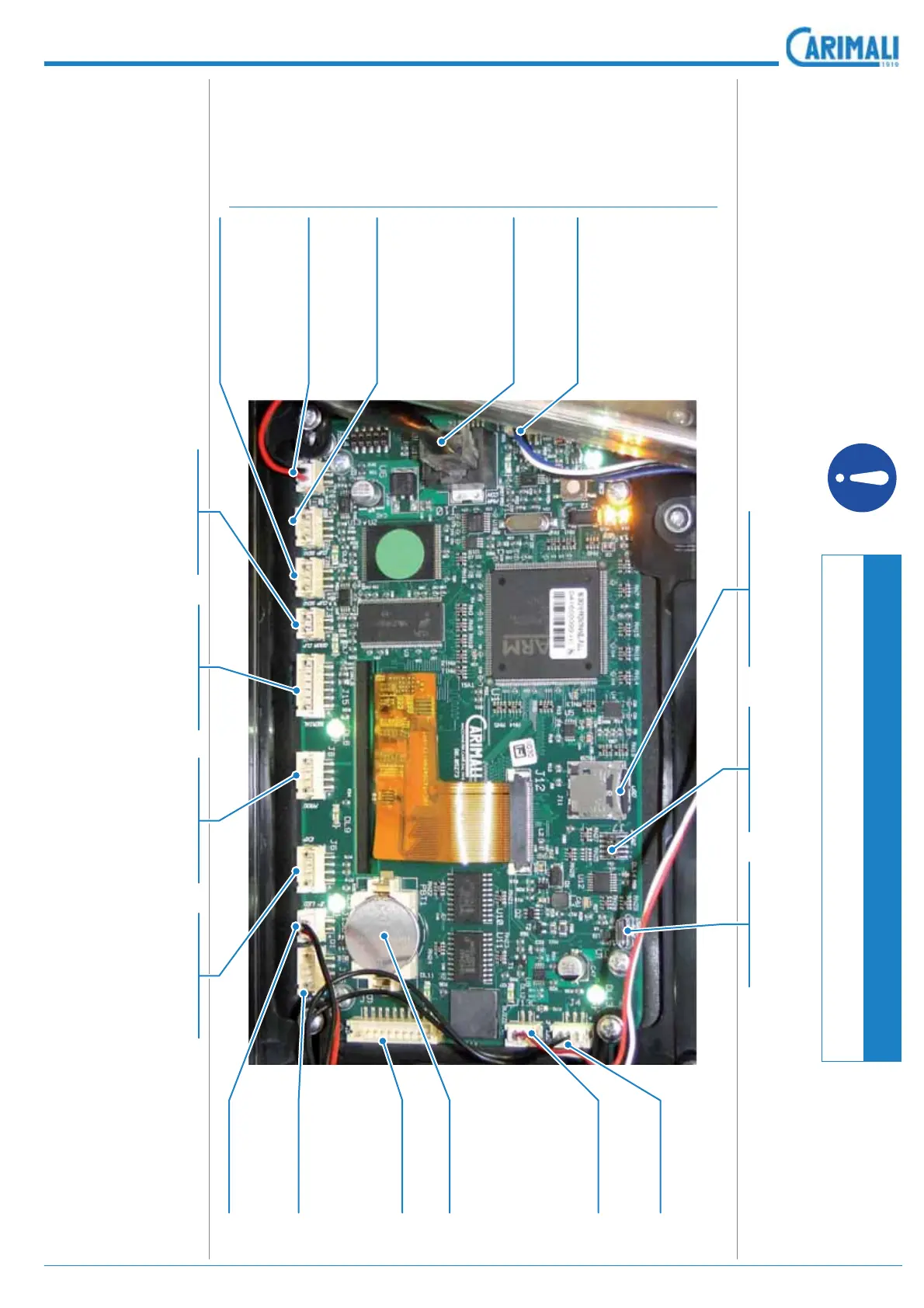

3.4.5 User terminal (Code 96.05318)
NOTE Replace the battery at least once every 2 years.
User presence sensor Power + RS 232 High cup presence sensor Dispensing compartment lighting Low cup presence sensor
Dispensing
compartment
lighting
Machine lower
door sensor +
Spare input
RFiD board
connection
RTC battery
(CR3032 1.5V)
Carimali logo
lighting
Deca door
sensor
2nd serial port
JTAG USB
SD card microswitch
reader
Cup Station
door sensor
RS 232 On
board program.
2nd I2C interface
