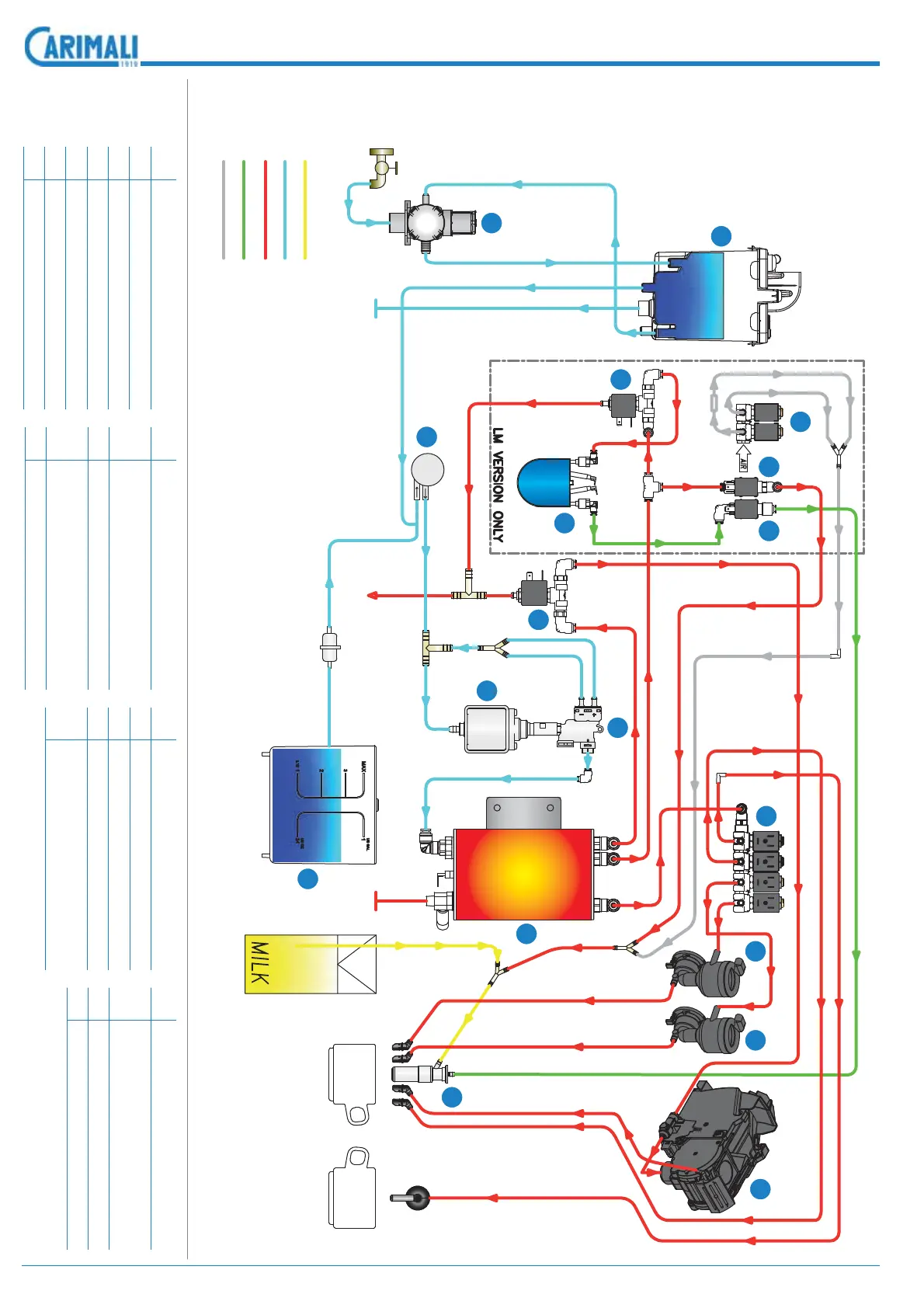

3.6 HYDRAULIC DIAGRAMS
3.6.1 Version Espresso + Instant products (E+1M)
N Parts
1 Water stop solenoid valve 2 Air break 3 Vibration pump 4 4-way valve + VNR 5 Flowmeter 6 Coffee/instant product boiler
NParts
7
Espresso 3-way solenoid valve
8 Espresso group 9
2-way, 4-element solenoid valve block
10 Mixer
NParts
11 Steam 3-way solenoid valve
12 Steam boiler 13 Milker steam solenoid valve 14
Milker rinsing water solenoid valve
N Parts
15
Air 2-way solenoid valve block Milker/rinsing
16 Milk frother 17 Water tank
Milk Cold water Hot water Steam Air
9
8
16
6
4
3
7
12
11
15
14 13
2
1
5
10 10
17
