Disassembly and cleaning procedures

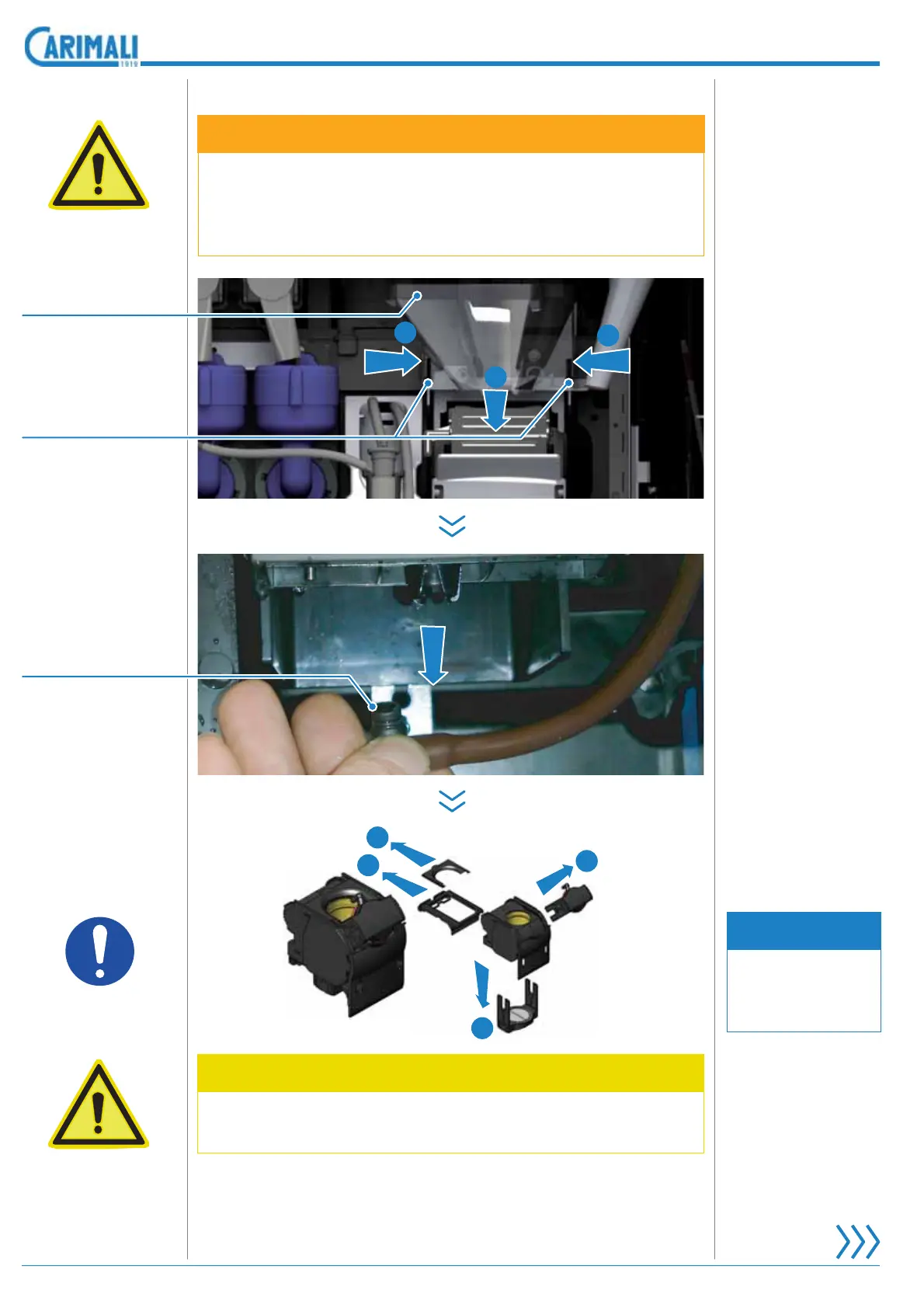

4.8.3 Disassembly of the Fresh Brew group
ATTENTION
The Fresh Brew group can be washed only carrying out the
semi-automatic procedure from the display.
Disassemble the Fresh Brew group only in case of deep washing
or replacement.
Disassembly must be performed by a skilled technician.
6OLJKWO\SUHVVWKH¿[-
LQJ ÀDSV WR UHOHDVH
the coffee conveyor.
Remove the con-
veyor towards the
front side of the ma-
chine.
Disconnect the out-
let hose towards the
decanter from the
group.
Disassemble the
Fresh Brew group
and clean all parts
carefully.
NOTE
Clean the Fresh
Brew group care-
fully with warm wa-
ter.
WARNING
If the water is too hot, the lubricant in the unit may be washed
away.
1
1
2
4
3
2
1
)L[LQJÀDSV
Coffee conveyor
Outlet hose
