Carimali BlueDotPlus - Version Espresso + Fresh Brew (EF)

3.39Installation
3.7.3 Version Espresso + Fresh Brew (EF)
NOTE
The presence of the valves:
• EV7 Steam
• EV8 Milker rinsing water
• EV9 Milker air
• EV10 Milker rinsing air
• EV11 pressurised steam discharge/exchanger
It changes according to the presence of the Milker.

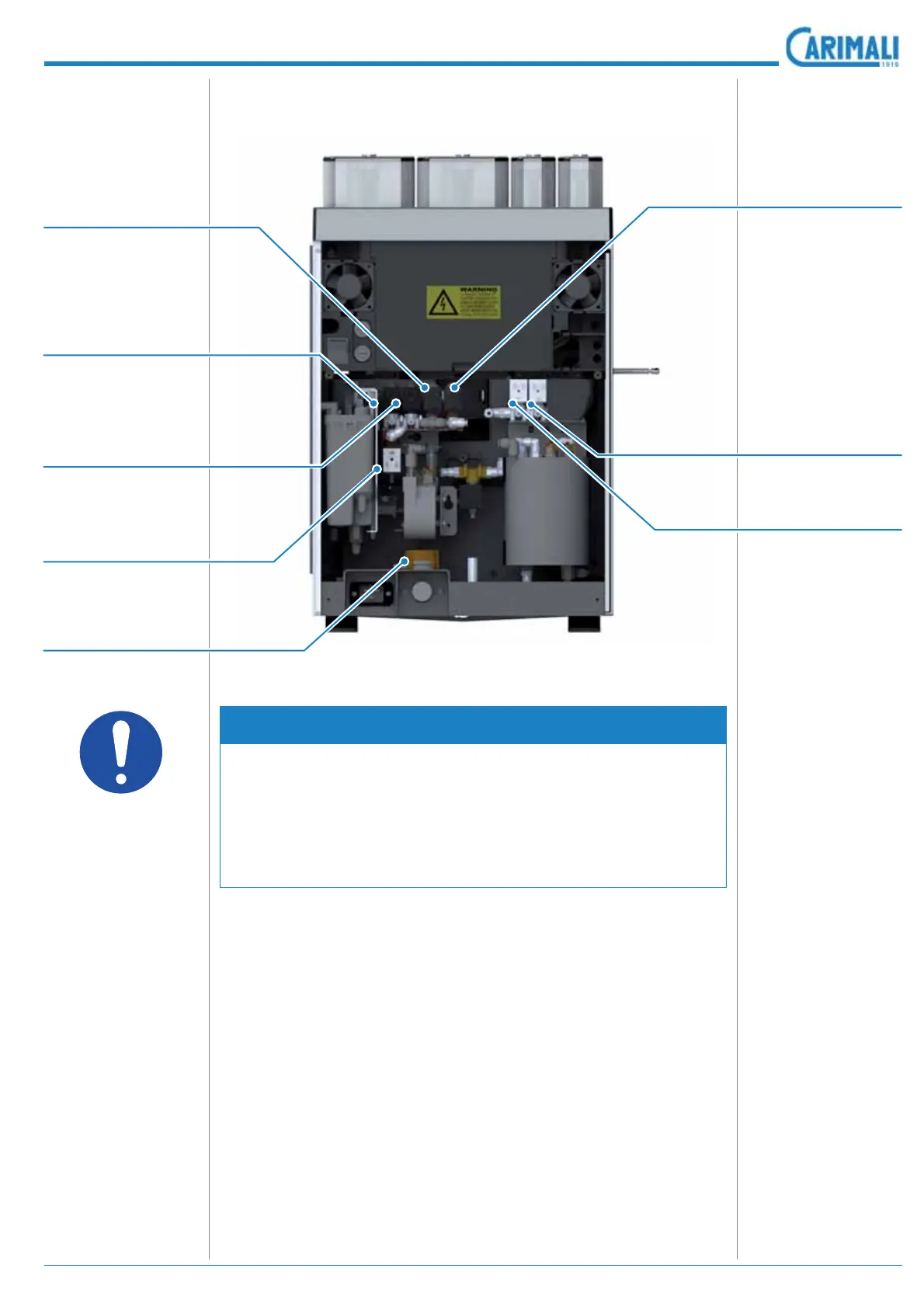

EV9
Milker air
EV8 (2-way)
Milker rinsing water
EV1 (2-way)
water connection
EV11 (3-way)
pressurised steam
discharge / steam
exchanger
EV10
Milker rinsing air
EV6 (2-way)
hot water spout
EV5 (2-way)
Fresh Brew unit
EV7 (2-way)
steam
