Carimali BlueDotPlus - Milker Disassembly

4.31Disassembly and cleaning procedures

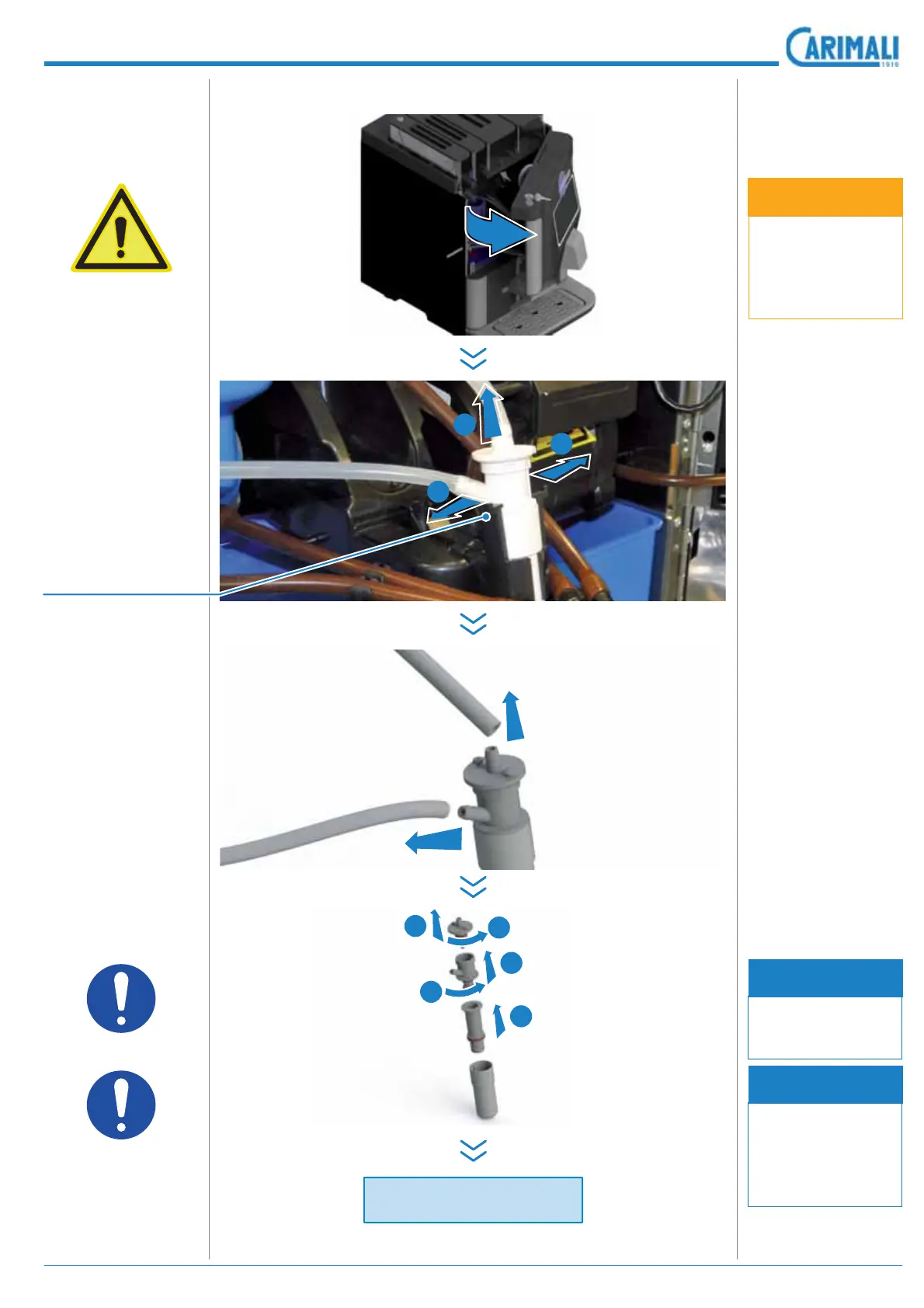

4.9.2 Milker disassembly
ATTENTION
During the disas-
sembly phase of
the Milker, do not
damage its compo-
nents.
Open the front door
and remove the milk
frother from its seat
through the apposite
ORFNLQJÀDSV
Disconnect the con-
nection hoses of the
milk circuit.
Open the upper
front door.
Remove the milk
frother.
NOTE
Check the O-rings
and replace them,
if necessary.
NOTE
Assemble the Milk-
er by proceeding in
the reverse order
compared to the
above instructions.
1
1
2
Description end
M
ilker disassembl
y
1
2
3
4
5
/RFNLQJÀDSV
