Carimali BlueDotPlus - Passage from the Tank (WT) to the Water Mains (WM)

3.19Installation
3.2.2 Passage from the tank (WT) to the water mains (WM)

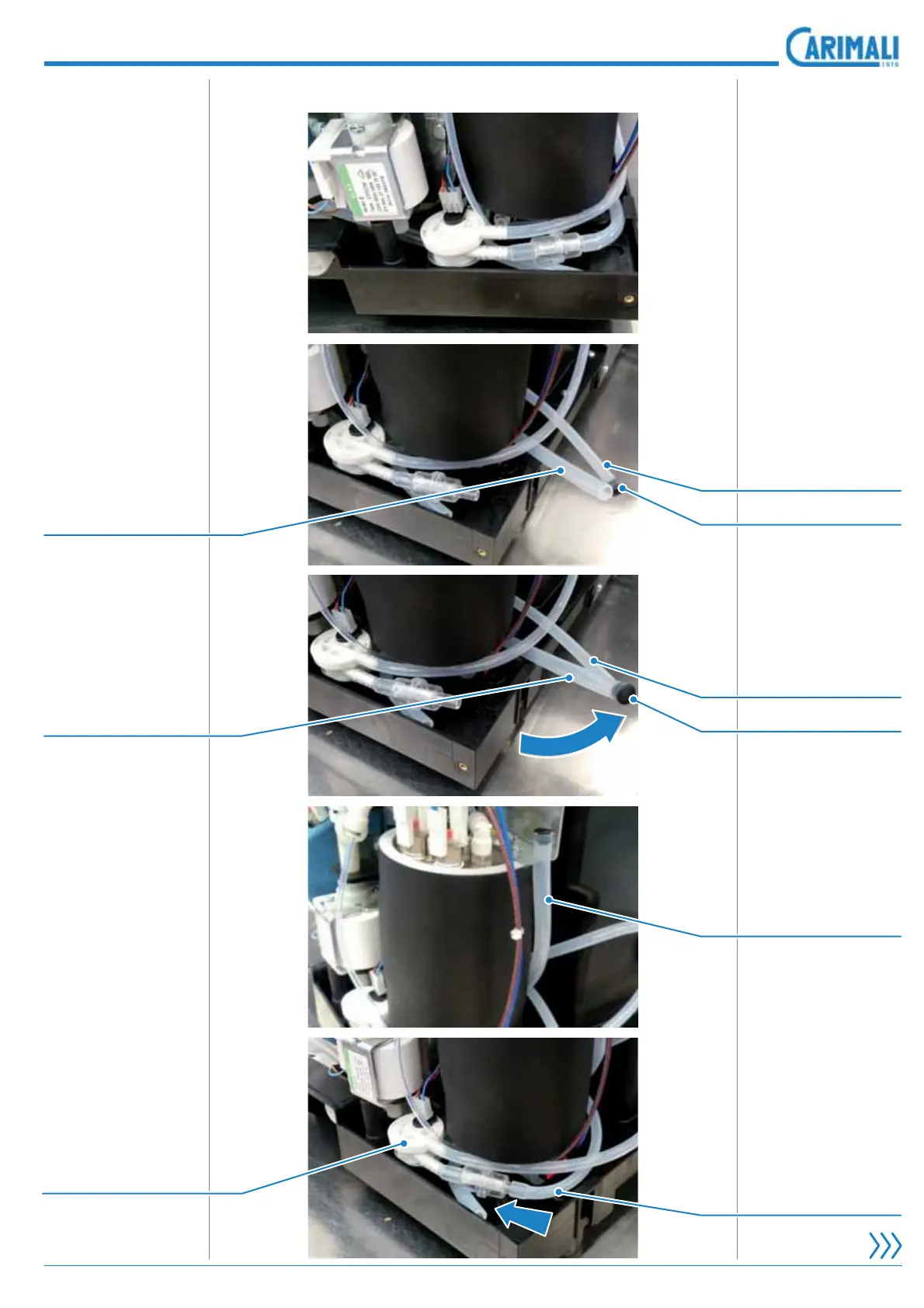

The following image
shows the situation
when the water tank
is enabled.
Disconnect the tank
KRVH IURP WKH ÀRZ-
meter and position
the air break hose.
Move the cap from
the Air break hose to
the tank hose.
Put the tank hose in
stand-by position,
behind the water
tank.
Insert the Air break
KRVH LQWR WKH ÀRZ-
meter.
Cap
Cap
Air break hose
Air break hose
Air break hose
Tank hose
Flowmeter
Tank hose
Tank hose
