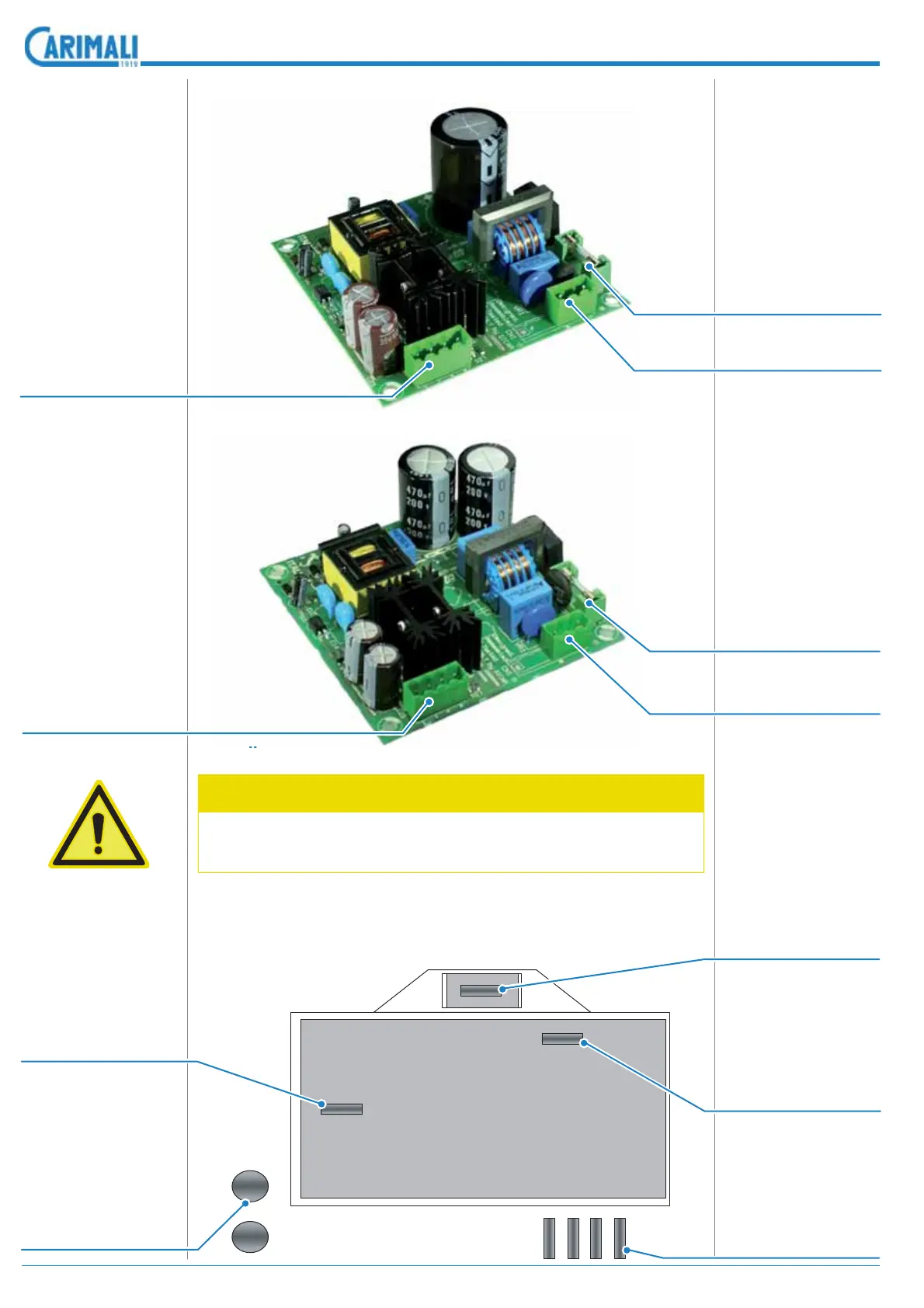

Carimali BlueDotPlus - Fuse Diagram; Switching Power Supply Unit 100;125 V(Code 96.05336.00.41); Switching Power Supply Unit 200;240 V (Code 96.05336)

3.24
Installation
3.4.4 Fuse diagram
WARNING
Replace only with original fuses.
3.4.2 Switching power supply unit 200/240V (code 96.05336)
3.4.3 Switching power supply unit 100/125V(code 96.05336.00.41)
The switching power
supply unit is pow-
ered by the mains
(220/240V - 50/60
Hz) and powers the
power board at 24 V
dc.
The switching power
supply unit is pow-
ered by the mains
(100/125V - 50/60
Hz) and powers the
power board at 24 V
dc.
di
2 LINE FUSE 6.3X32:
SCHURTER SUT 12A
8020.0603
OMEGA 10A UTG 632310
(alt)
(Version 220/240V)
(Code: 96.05338)
Bel Fuse Inc. GSA15-R
(Version 100/125V)
(Code: 96.05402)
F1 - Main PCB low
power 230 Vac loads
fuse link:
SCHURTER SP 2A
0001.1007
(Version 220/240V)
(Code: 96.05371)
SCHURTER SP 4A
001.1010
(Version 100/125V)
(Code: 96.05381)
Power Switching
supply protection
fuse link (GICAR)
SCHURTER FST 1.6A
BEL FUSE 5ST 1.6A (alt)
Littelfuse 218 1.6A (alt)
(Version 220/240V)
(Code.: 96.05370)
SCHURTER FST 3.15A
(Version 100/125V)
(Code: 96.05390)
F2 - Main PCB
24Vdc loads
fuse link:
SCHURTER SPT 3,15A
0001.2509
(Code: 96.05372)
SCHURTER SPT 4A
0001.2510
(Code: 96.05434)
F3, F4, F5 - Powder
dispenser motor fuse
link and F6 - Com-
pactor coffee ground
motor:
SCHURTER SPT 1A
0001.2504
(Code: 96.05428)
Input connector IN
200/240 Vac
Input connector
IN 95/125 Vac
Protective fuse
Protective fuse
Output connector
24 V dc
Output connector
24 V dc
