Carimali BlueDotPlus - Valve Layout; Version Espresso + Instant Products (E); Version Espresso + Instant Products

3.37Installation
NOTE
The valves layout vary according to the versions of the machine.
NOTE
The presence of the valves:
• EV7 Steam
• EV8 Milker rinsing water
• EV9 Milker air
• EV10 Milker rinsing air
• EV11 pressurised steam discharge/exchanger
It changes according to the presence of the Milker.
NOTE
The presence of the valves:
• EV3 instant product 1
• EV4 instant product 2
It changes according to the presence of instant products.
3.7.1 Version Espresso + Instant products (E)

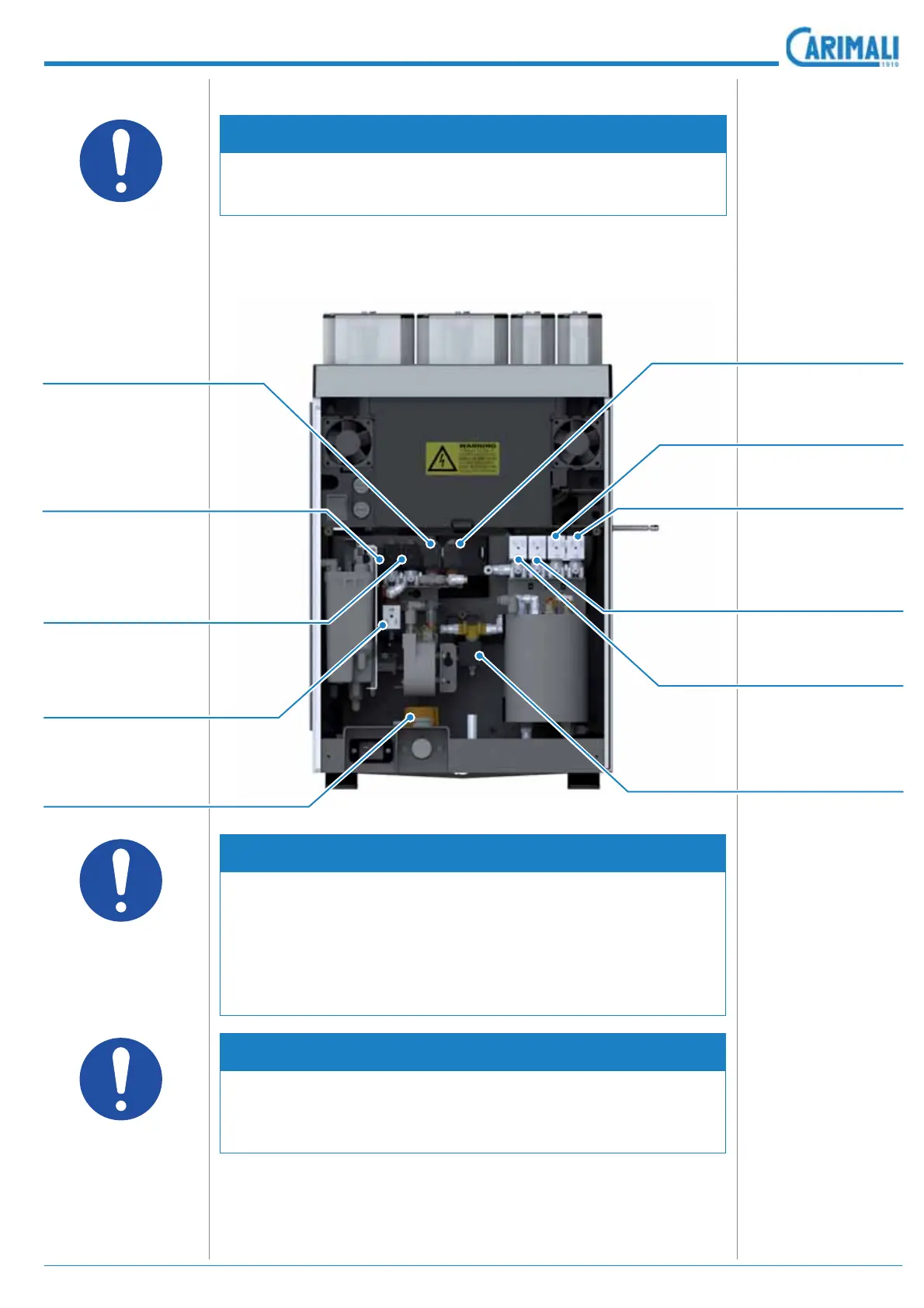

3.7 VALVES LAYOUT
EV9
Milker air
EV8 (2-way)
Milker rinsing water
EV1 (2-way)
water connection
EV11 (3-way)
pressurised steam
discharge / steam
exchanger
EV10
Milker rinsing air
EV2 (3-way)
espresso unit
EV6 (2-way)
hot water spout
EV3 (2-way)
instant product 1
EV5 (2-way)
water by-pass
EV4 (2-way)
instant product 2
EV7 (2-way)
steam
