Disassembly and cleaning procedures
4.11 GRINDER GROUP
4.11.1 Grinder group adjustment

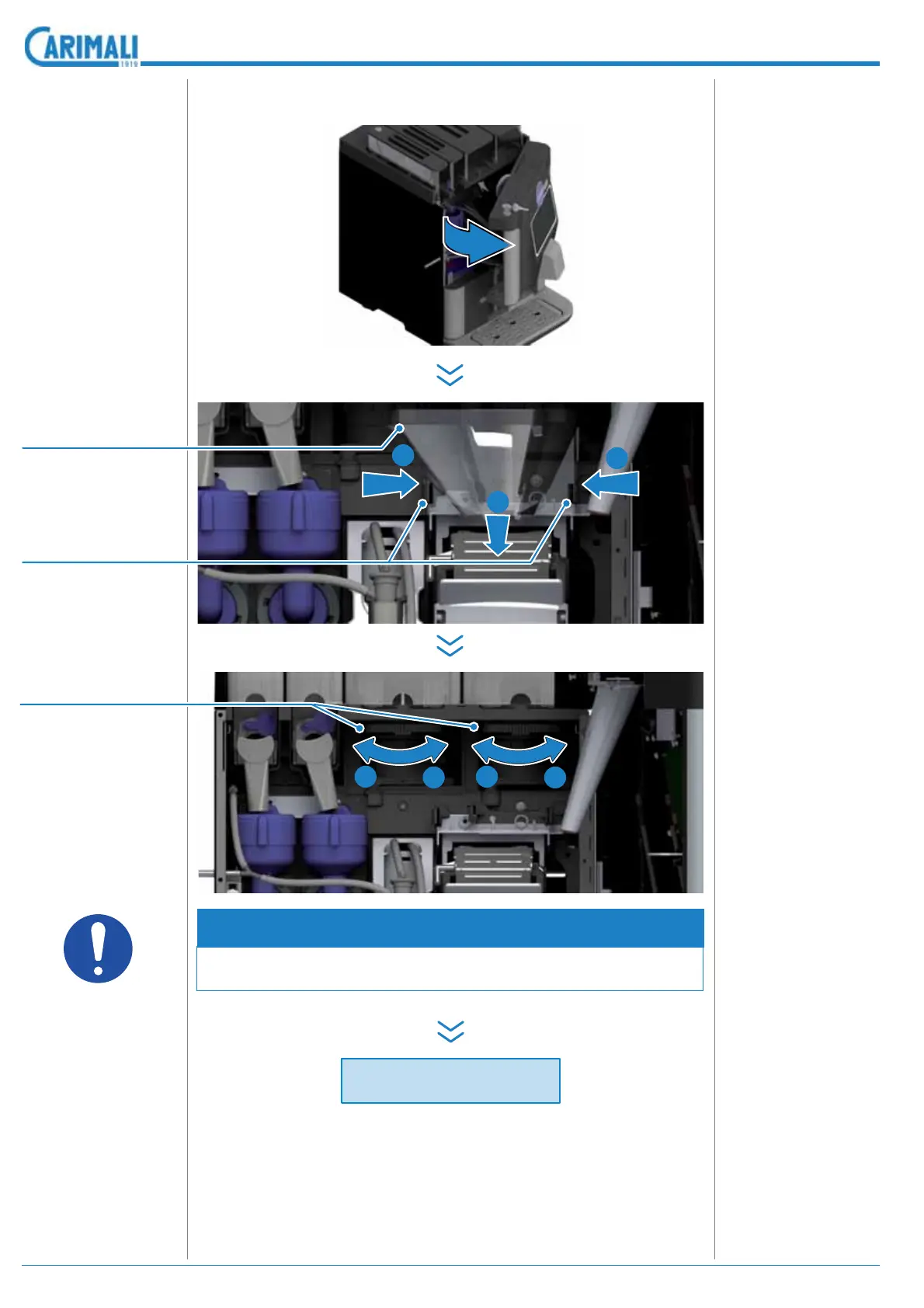

Open the upper
front door.
6OLJKWO\SUHVVWKH¿[-
LQJ ÀDSV WR UHOHDVH
the coffee conveyor.
Remove the con-
veyor towards the
front side of the ma-
chine.
Adjust coffee grind-
ing manually by ro-
tating the ring nuts:
• &ORFNZLVH  ¿QHU
grinding.
• Counterclockwise =
coarser grinding
.
NOTE
Rotate the ring nuts in small progressive steps, checking the re-
sults from time to time.
1
1
2
- -
++
Description end
Grinder
g
roup ad
j
ustmen
t
)L[LQJÀDSV
Coffee conveyor
Ring nuts
