3.23Installation
The power board receives the 24 Vdc power supply from the switch-
ing power supply unit and powers the main functions of the ma-
chine, as well as the other power boards.
3.4 ELECTRONIC BOARDS, FUSES
AND WIRING DIAGRAMS

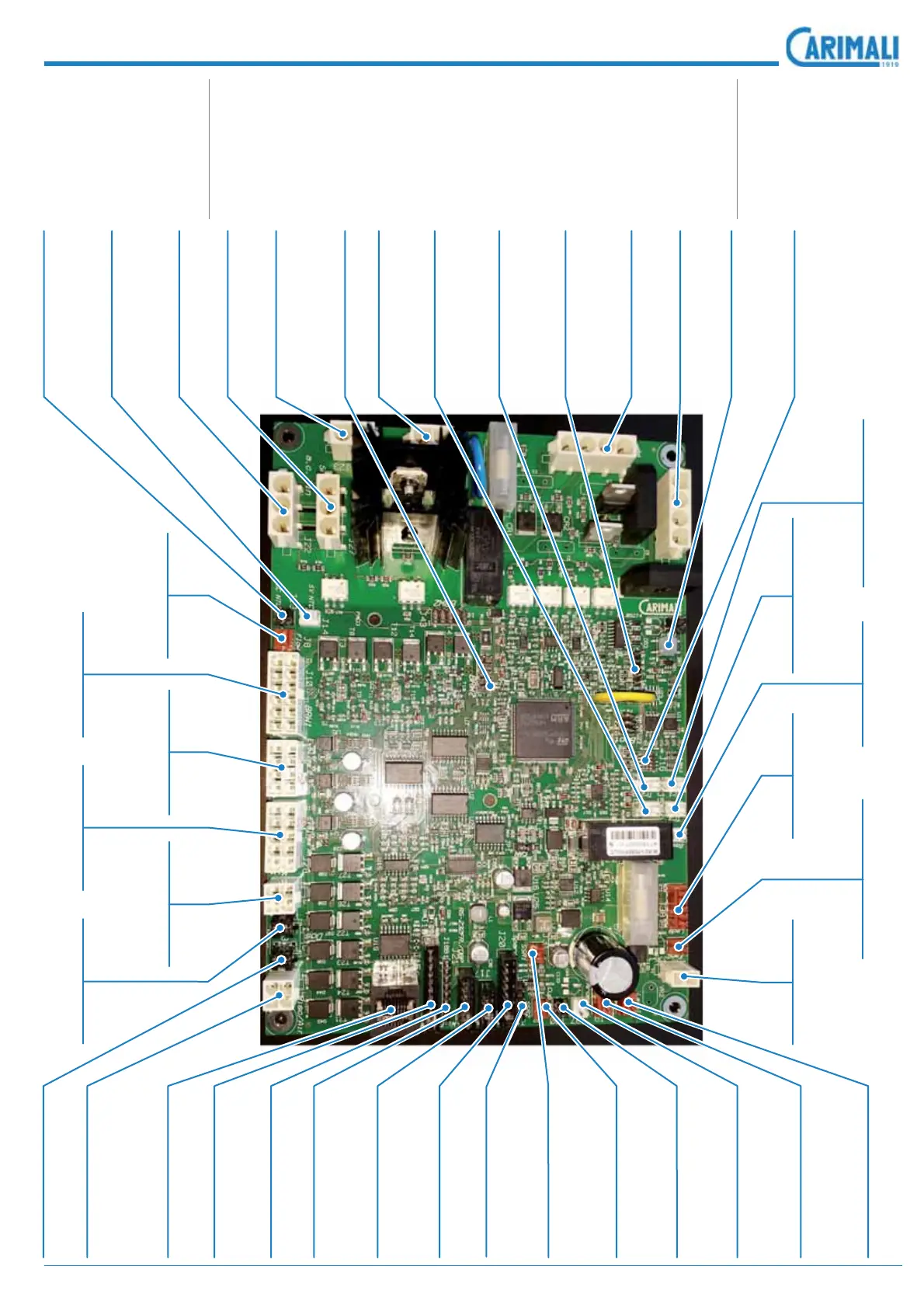

3.4.1 Power board (Code 96.05274)
Suction fan motor 1 Pump Heating element SV BRW2 JTAG Reed presence sensor TR4 Reed presence sensor TR2 SPARE DAC SPARE1 - 2 Heating element DC 230V for power supply unit 230V for users Temperature sensor NTC SV Temperature sensor NTC CC
Electromagnet
Cup Station
Aroma fan motor
Grounds drawer
preence sensor
Tank level sensor
Heater air pump motor
or compactor motor
(OPT)
Doser motor 2
RS 232
GSM modem
RS 232
User debug
Programming fridge
RS 232
Outer token box
RS 232
Can BUS
Outer pilot SSR
SPARE PARTS
TTL OPTION
Outer pilot SSR
Power
Lighting
TR 1-2-3-4
Reed presence
sensor TR3
Suction fan
motor 1
Grounds drawer
microswitch
Reed presence sensor
TR1
Flow sensor
BRW1 Solenoid valves
1-2-3-4-5-6
Doser
motor 1
Solenoid valves
7-8-9-10-11-12
Mixer motor 1 - 2
Grinder motor
