Disassembly and cleaning procedures

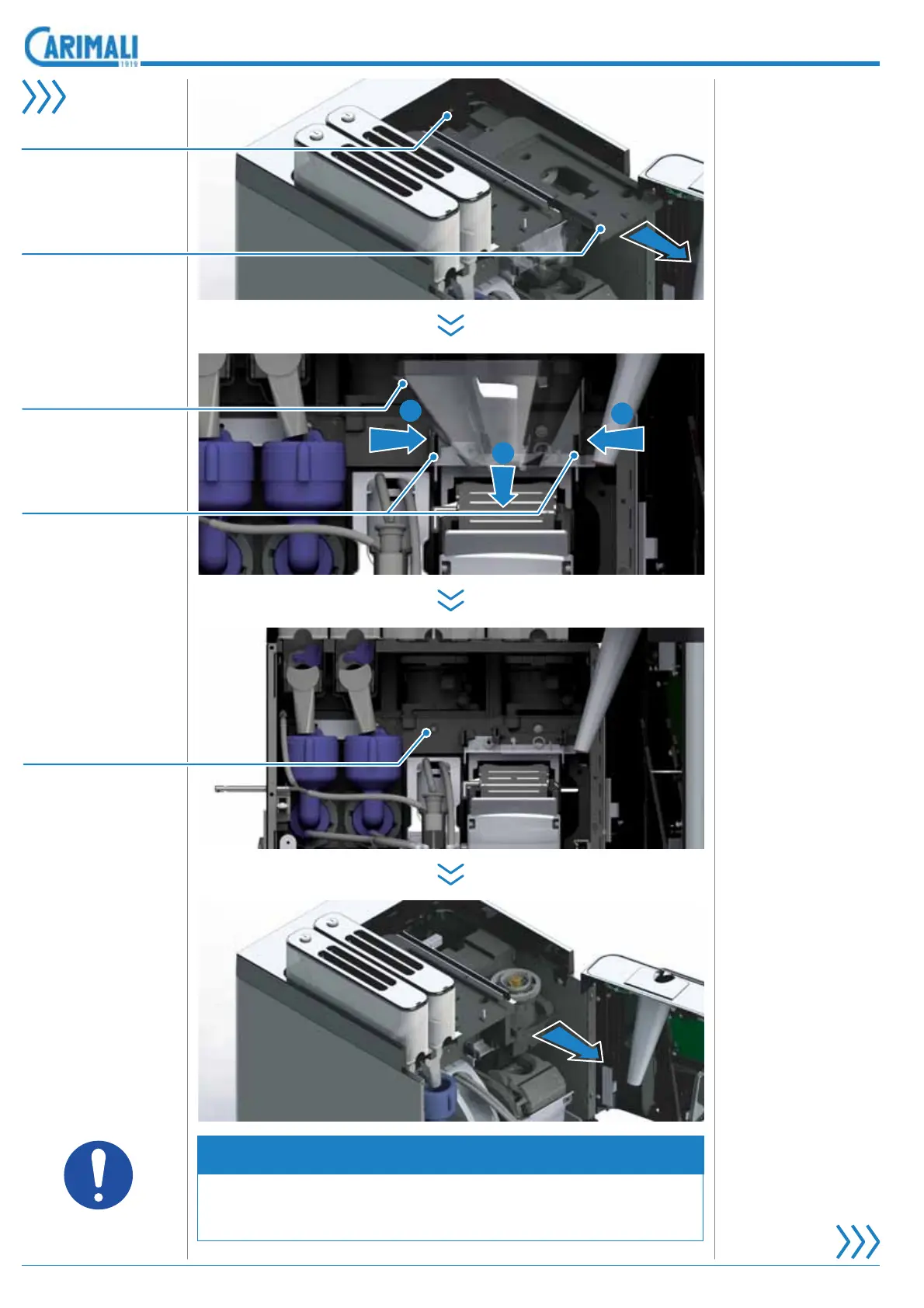

Remove the screw
on the machine top
and remove the cov-
er.
6OLJKWO\SUHVVWKH¿[-
LQJ ÀDSV WR UHOHDVH
the coffee conveyor.
Remove the con-
veyor towards the
front side of the ma-
chine.
Remove the locking
screw of the grinder
module.
Remove the grind-
er module and dis-
connect the electric
connections.
NOTE
For replacing the grinders, request the relevant documentation to
the CARIMALI Assistance Service.
1
1
2
Fastening screws
Cover
)L[LQJÀDSV
Coffee conveyor
Locking screw
