4.45Disassembly and cleaning procedures

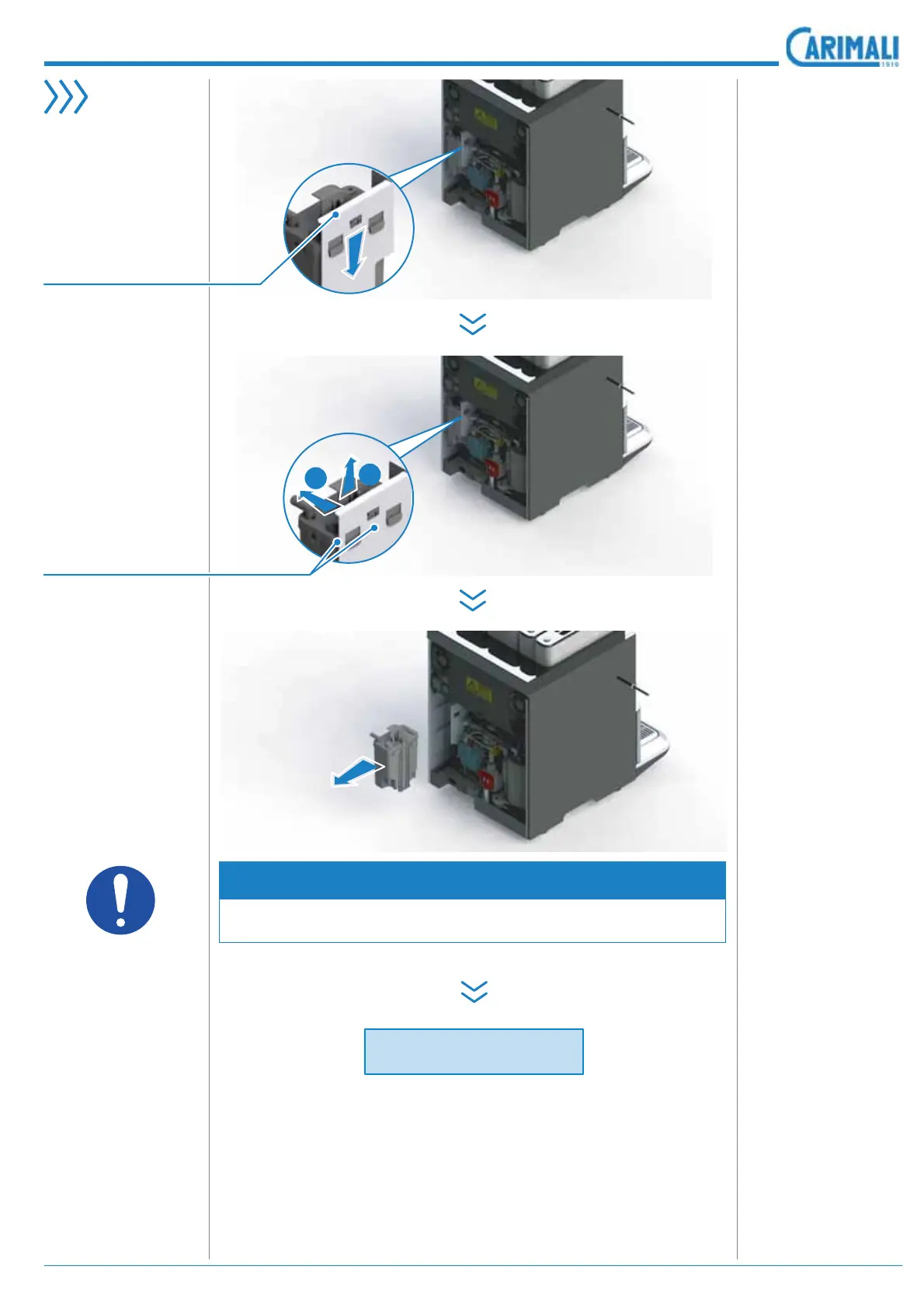

Disconnect the elec-
tric/hydraulic con-
nections of the Air-
Break.
Empty the remain-
ing water.
5HOHDVH WKH ¿[LQJ
hook of the Air-
Break.
Slightly lift the Air-
Break to release it
from the two support
hook.
NOTE
Assemble the Air-Break by proceeding in the reverse order com-
pared to the above instructions.
Remove the Air-
Break.
1
2
Description end
Air-Break disassembl
y
Fixing hook
Fixing hooks
