62-12259 2–4

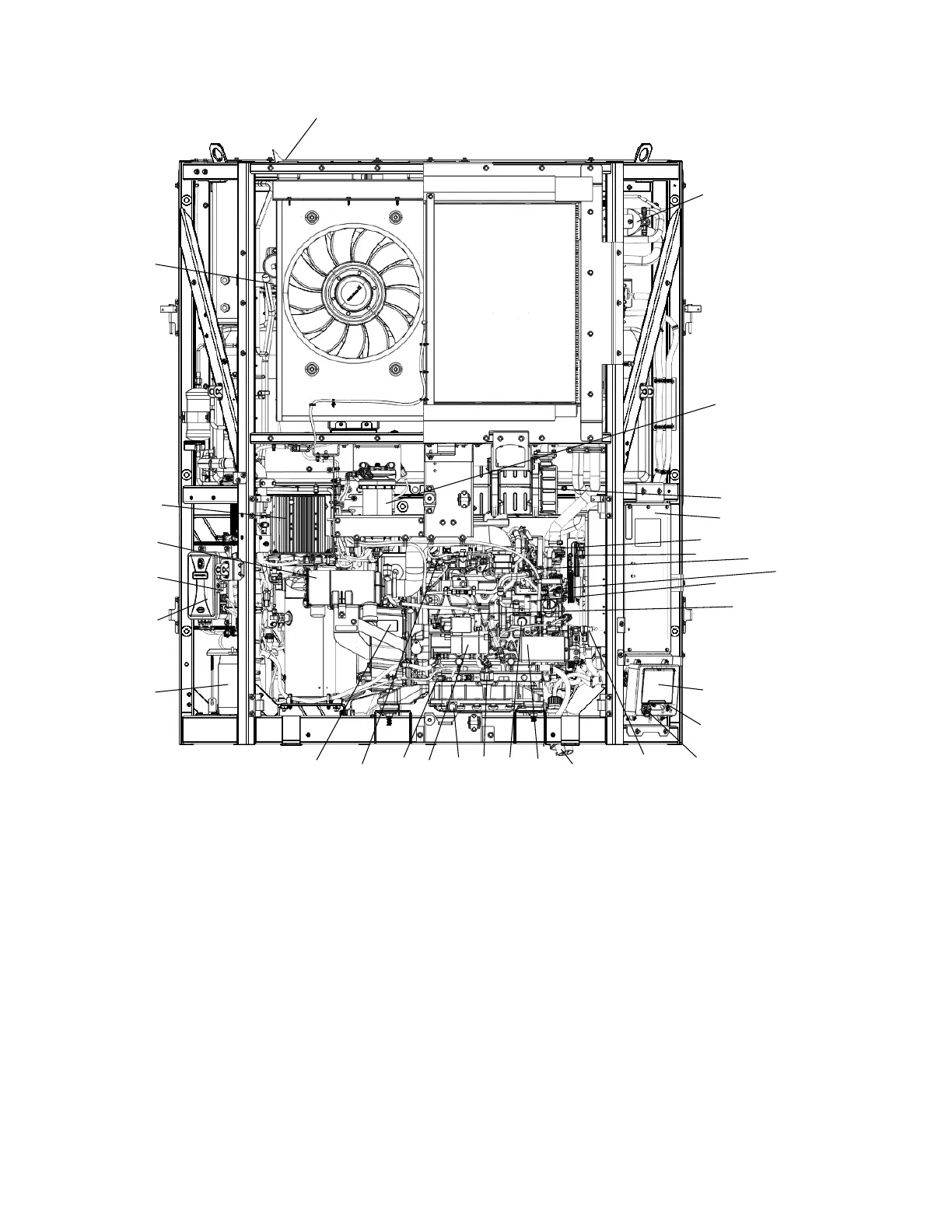

Figure 2.2 Front View - Engine, Control System and AutoFresh Components
1
2
3
4
9
10
11
12
20
19
17 16
15
14
23
24
25
26
27
28
29
6
21
13
5
7
22
8
18
30, 31
1. Coolant BoƩle
2. Fuel Filter/Heater (FH)/Water Sensor (ENWFS)
3. Diesel OxidaƟon Catalyst (DOC)
4. Control Box (See Figure 2.4)
5. Engine Speed Sensor (ENSSN)
6. Manual Plunger
7. Engine Service Port (KSP)
8. Rail Pressure Sensor (ENFRP)
9. Display Module (DM)
10. START/RUN-OFF Switch (SROS)
11. USB Interface Port
12. Engine Oil Pressure Switch (ENOPS)
13. Engine Control Unit (ENCU)
14. Power Supply Receptacle (PSR)
15. Engine Oil Filter
16. Mechanical Fuel Pump
17. Engine Oil Fill a
nd DipsƟck
18. Exhuast
19. Engine Oil Drain
20. Starter (SS, SSC, SM)
21. Glow Plug (EPH)
22. Engine Coolant Temperature Sensor (ENCT)
23. Generator (GEN)
24. BaƩĞry (BTY)
25. Power Module (PM)
26. Microprocessor/ Stepper Module (MSM)
27. Air Cleaner, Air Cleaner Service Indicator and Manifold
Absolute Pressure Transducer (MAP - if equipped)
28. BaƩĞry Charger (BTYC, BTYC2)
29. Radiator (behind condenser coil)
30. Fuel Control Valve (ENFCV)
31. CamshaŌ Speed Sensor (ENCS)
