Carrier TRANSICOLD Vector 8700 - Page 24

62-12259 2–6

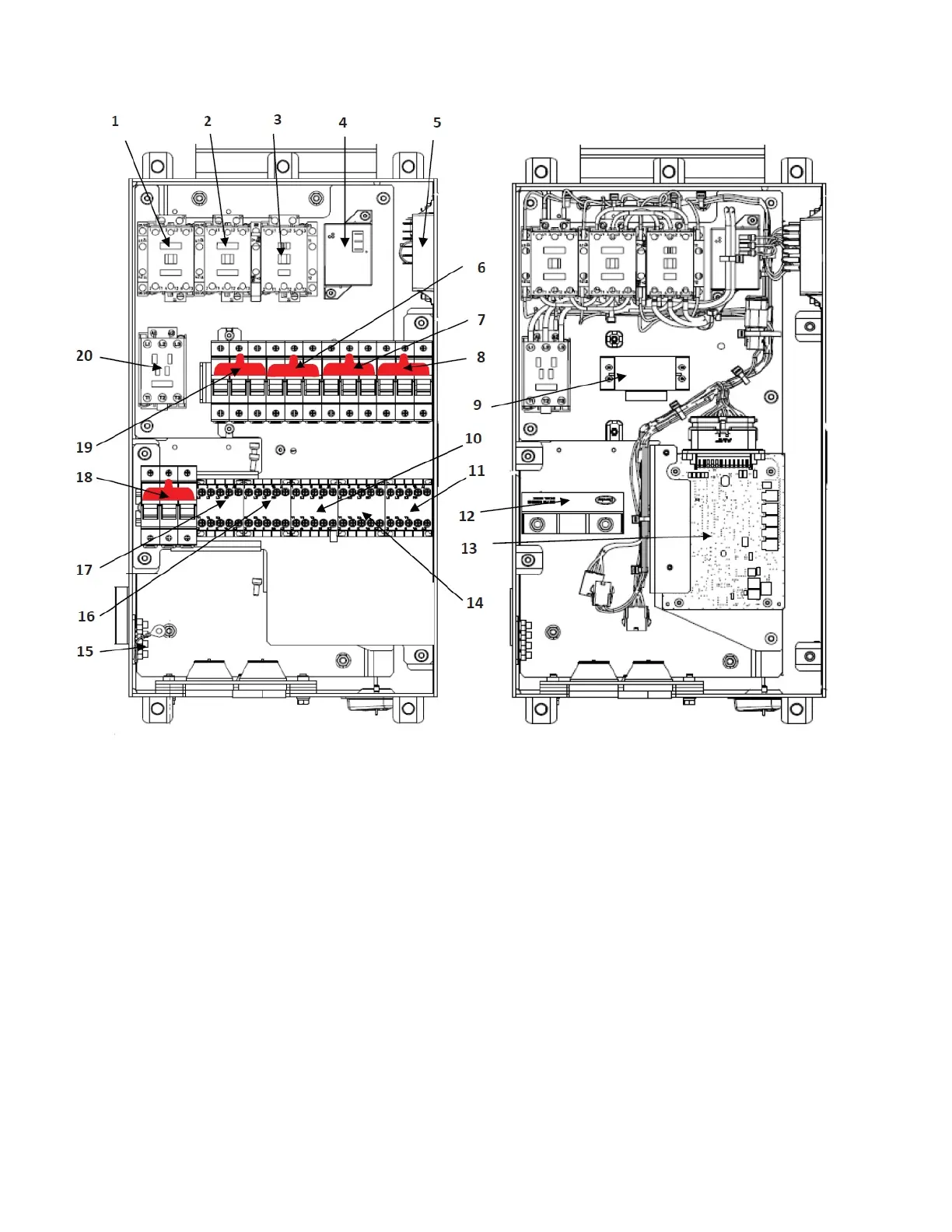

Figure 2.4 Control and Standby Boxes
1. General Contactor (GENCON)
2. Standby Contactor 1 (PSCON1)
3. Standby Contactor 2 (PSCON2)
4. Overload Ground Fault (OGF)
5. Phase Reversal Module (PRM)
6. F33, F34, F35 Battery Charger
7. F36, F37, F38 Fan Motors
8. F39, F40, F41 Heater Strips
9. High Voltage Transformer (HTV)
10. Evaporator Contactor (EVCON)
11. Heater Contactor 2 (HTCON2)
12. AC Current Transformer (CT)
13. Contactor Control Board (CCB)
14. Heater Contactor 1 (HTCON1)
15. Grounding Plate (PE)
16. Condenser Fan Contactor 2 (CDCON2)
17. Condenser Fan Contactor 1 (CDCON1)
18. F30, F31, F32 (Not Used - M/T Version Only)
19. F42, F43, F44 (Not Used - M/T Version Only)
