Carrier 39T - Double-Circuited Face Split Coil Manifolding

LEGEND
TXV — Thermostatic Expansion Valve

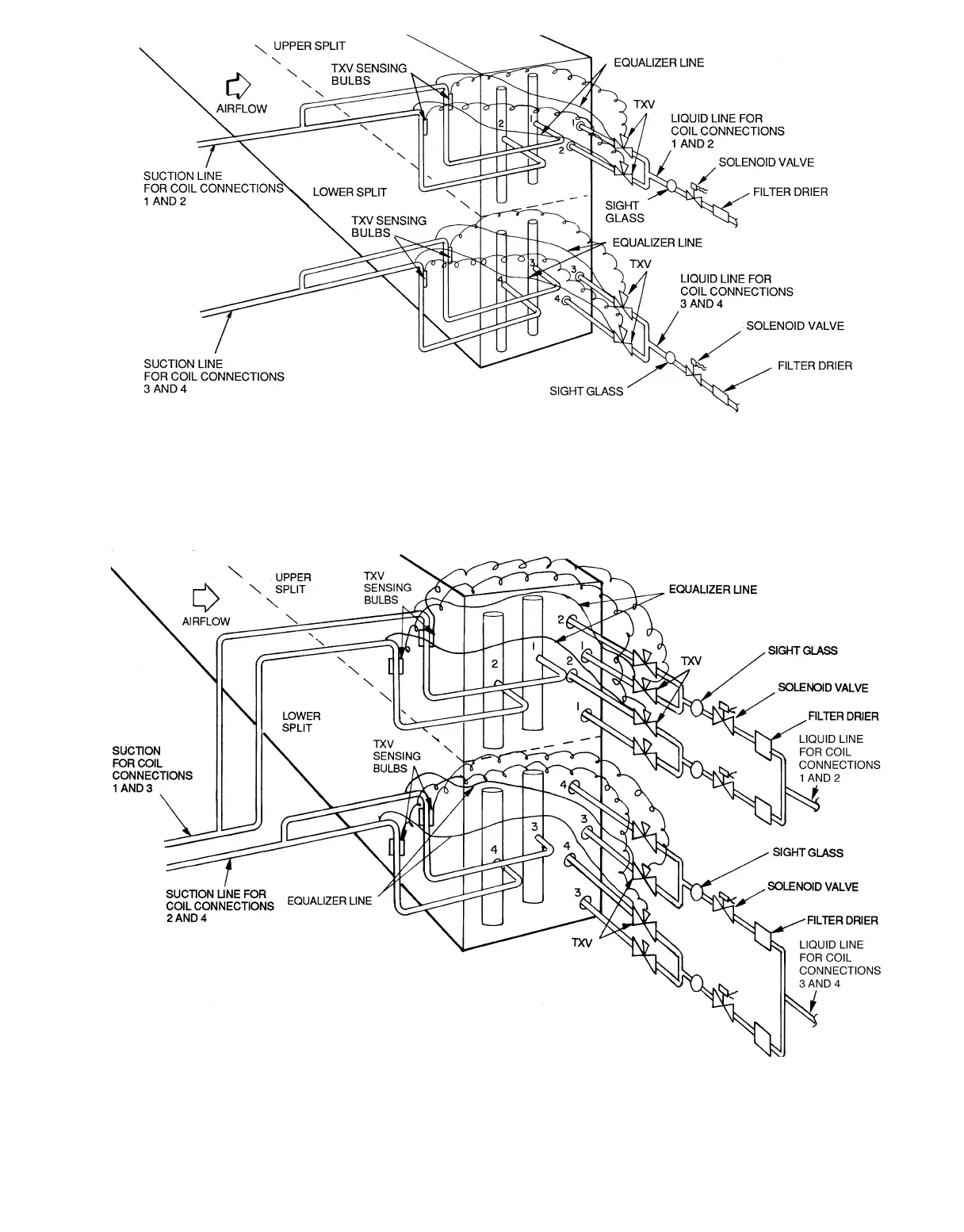

Fig. 52 — Double-Circuited Face Split Coil Manifolding —
Coils with Less Than 34 Tubes in Face (Typical)
LEGEND
TXV — Thermostatic Expansion Valve
Fig. 53 — Double-Circuited Face Split Coil Manifolding —
Coils with More Than 34 Tubes in Face (Typical)
63
