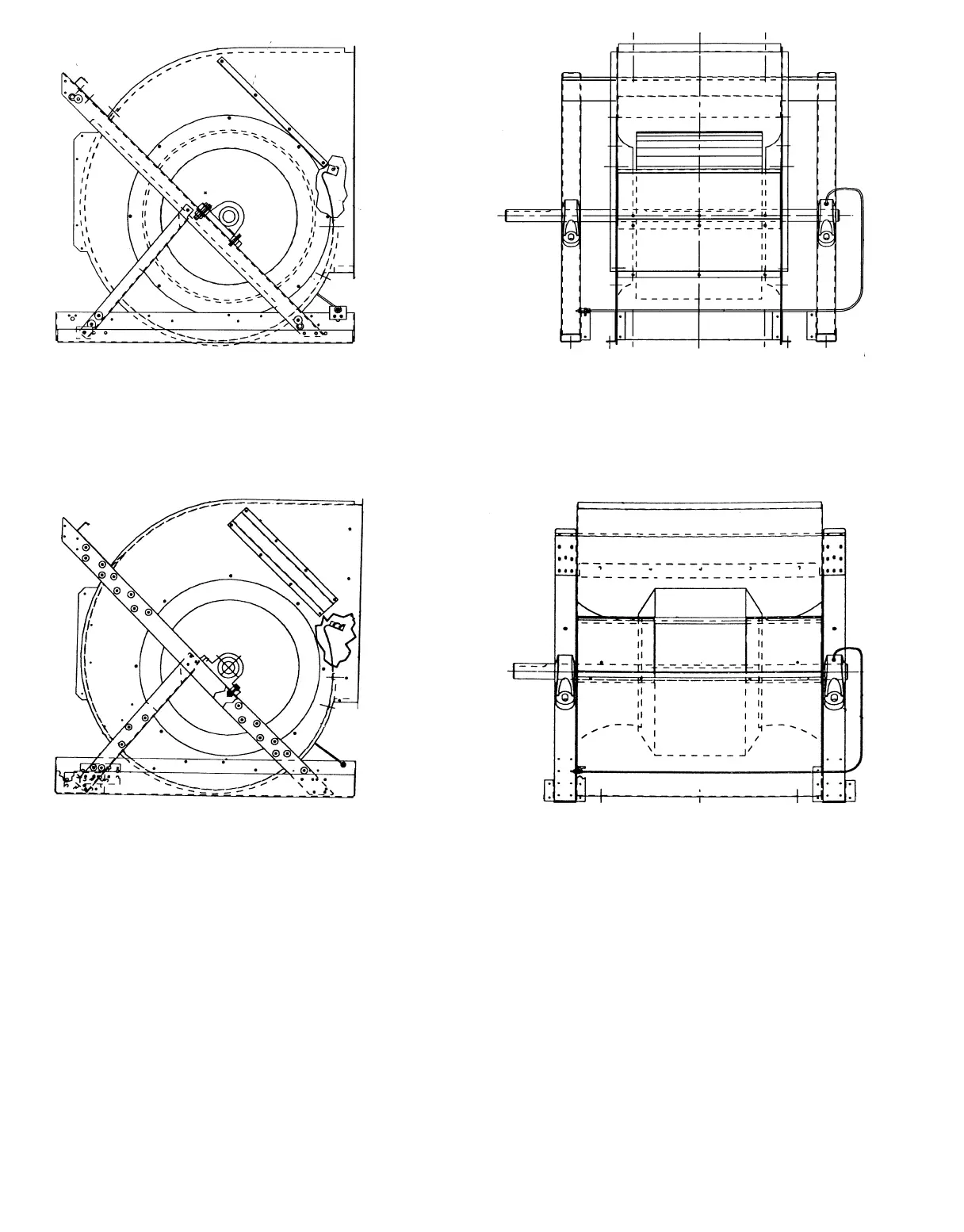

TOP HORIZONTAL FRONT/REAR
ARRANGEMENT SHOWN
(ASSEMBLED RIGHT HAND)
SIZES 07-26
TOP HORIZONTAL FRONT/REAR
ARRANGEMENT SHOWN
(ASSEMBLED RIGHT HAND)
SIZES 32-61
Fig. 76 — Scroll Assembly — Forward-Curved Fan Without IGV
94
